0.4m/s dumbwaiter elevator/small food elevator with VVVF control
Email: sales@novaelevator.com
Tel: 008613601565806
| Warranty: | 1 Year | After-sale Service: | Online technical support, Onsite Installation, Onsite Training, Onsite Inspection |
| Project Solution Capability: | graphic design, total solution for projects | Place of Origin: | Jiangsu, China |
| Brand Name: | Nova | Model Number: | Dumbwaiter |
| Usage: | Kitchen Elevator | Drive Type: | AC |
| Elevator Type: | Goods Elevators, Dumbwaiter | Product name: | 0.4m/s Dumbwaiter Elevator/Small Food Elevator with VVVF Control |
| Voltage: | 3 Phases 380v | Material: | Stainless Steel |
| Drive control system: | Step As380 or Monarch Nice3000 New | Traction machine: | geared,gearless traction machine |
| Color standard series: | Customized | Communication mode: | Serial,parallel |
| Certification: | ISO9001:2000, ISO14001, OHSAS18001, IS09001:2008, GB/T 19001-2008. | Warranty period: | one year |
| Supply Ability | 5000 Set/Sets per Year |
| Packaging Details | Standard export package | Port | Shanghai |

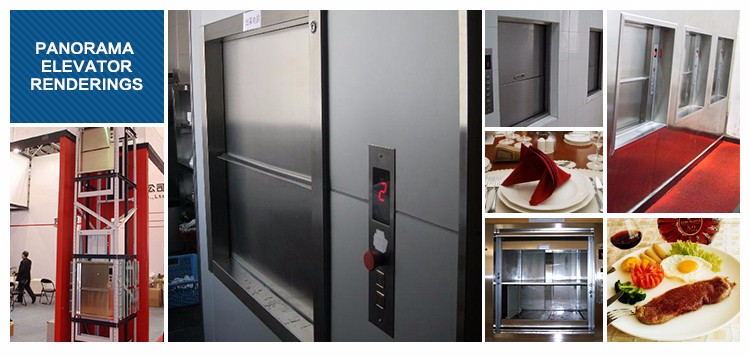

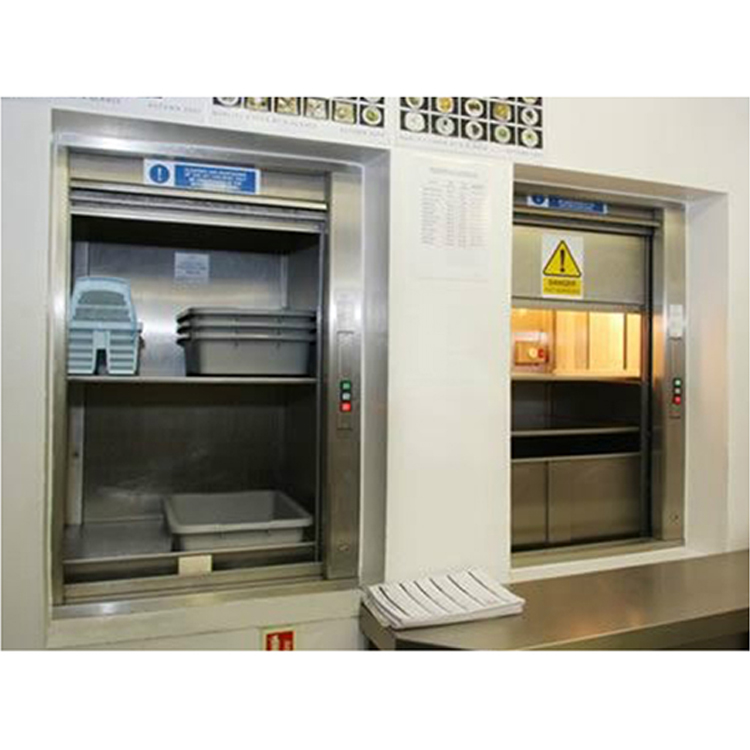

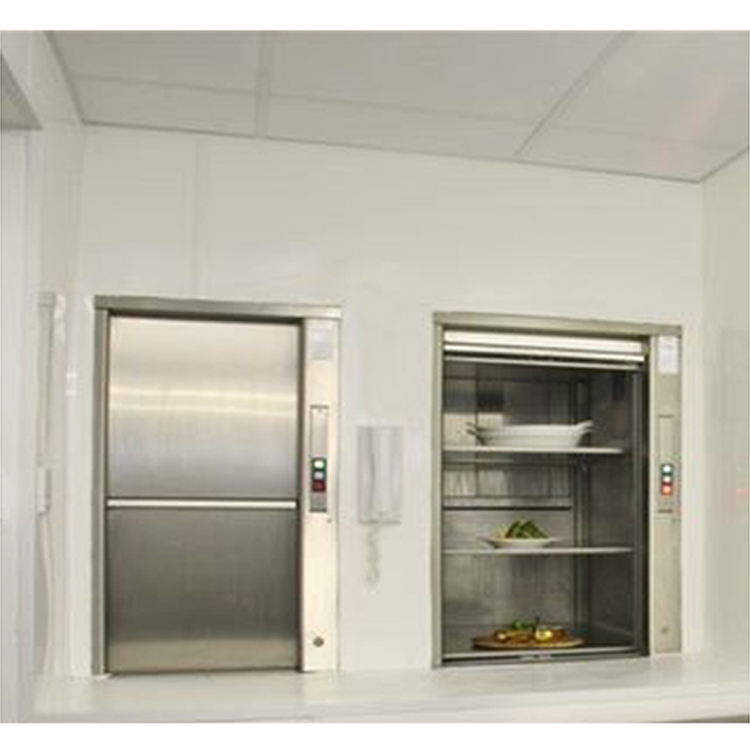

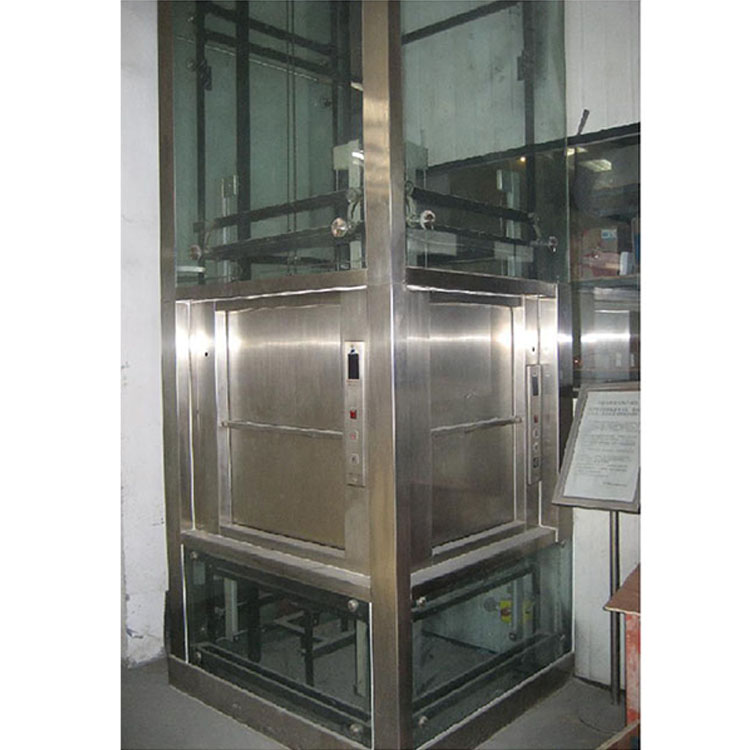

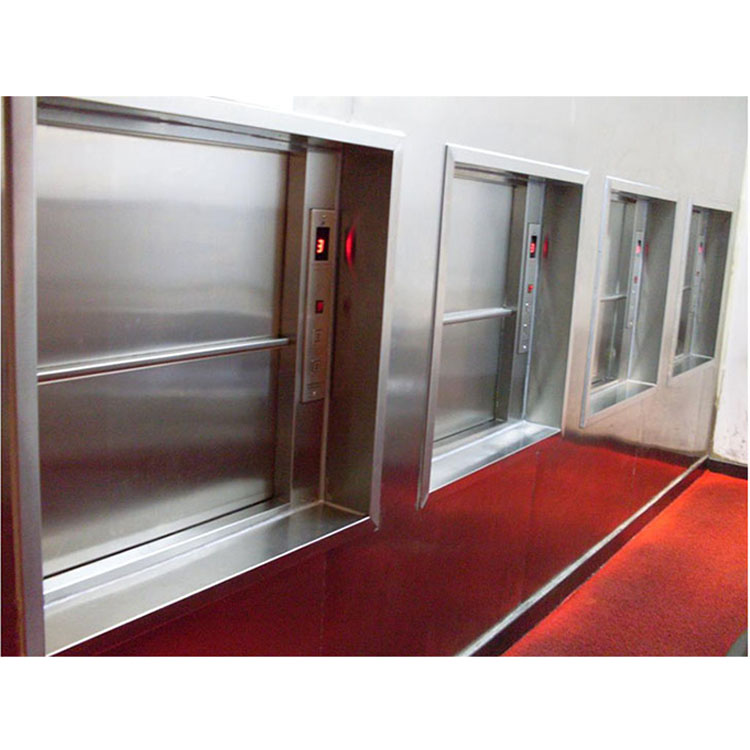

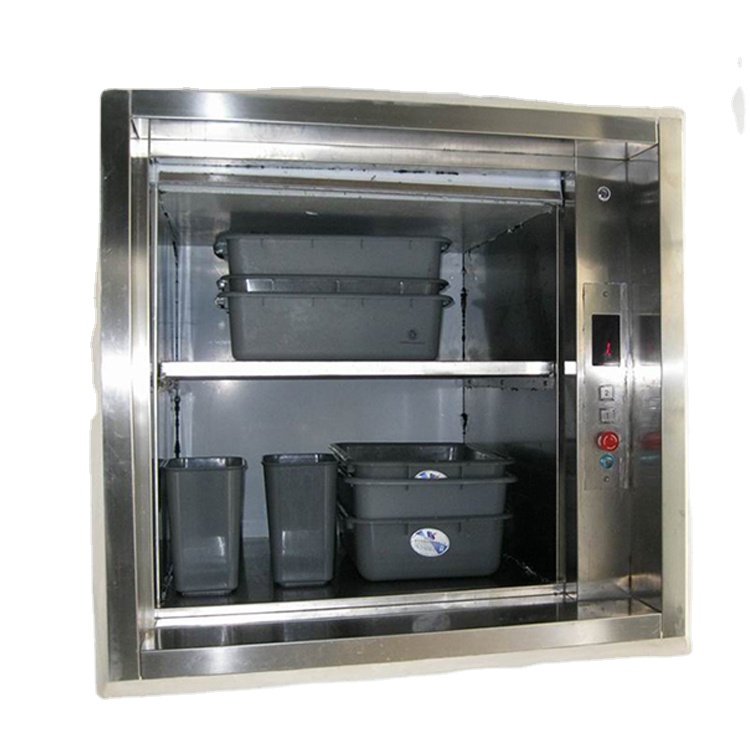

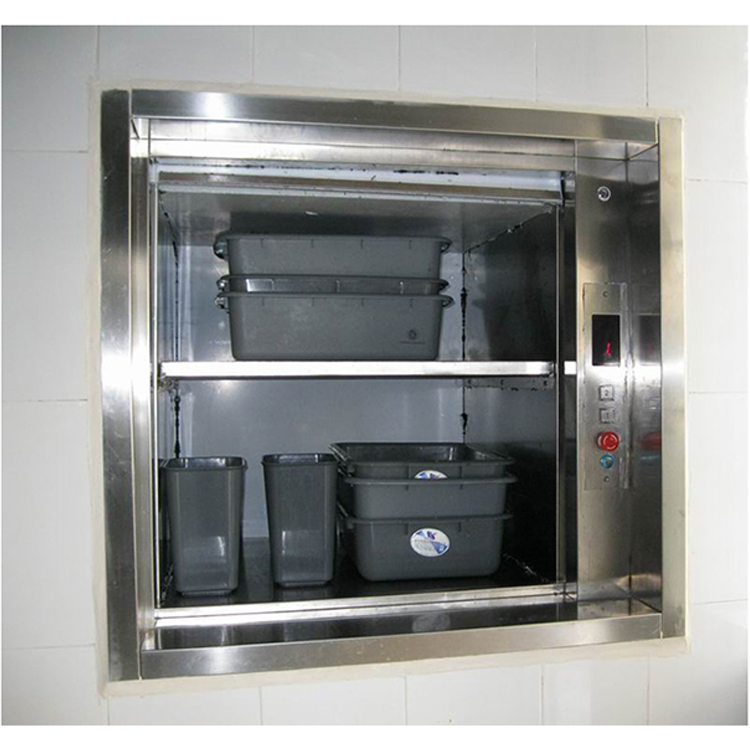

| Picture Example: |
Specification
| Load(KGS) | Type | Cabin Clear Size | Shaft Clear Size | Overhead Height | Pit Depth | Entrance Reserved Size | Motor Power(KW) | |||||
| A(Width) | B(Depth) | C(Height) | D(Width) | E(Depth) | F | G | H | |||||
| 100 | Window Type | 750 | 750 | 900 | 1250 | 900 | >=3600 | - | 750 | 1000 | 600 | 1.1 |
| 100 | Trolley Type | 750 | 750 | 900 | 1250 | 900 | >=3600 | 600 | 750 | 1000 | - | 1.1 |
| 200 | Window Type | 900 | 900 | 1000 | 1400 | 1100 | >=3600 | - | 900 | 1100 | 800 | 1.5 |
| 200 | Trolley Type | 900 | 900 | 1000 | 1400 | 1100 | >=3600 | 800 | 900 | 1100 | - | 1.5 |
| 250 | Window Type | 950 | 950 | 1000 | 1450 | 1150 | >=3600 | - | 950 | 1100 | 800 | 2.2 |
| 250 | Trolley Type | 950 | 950 | 1000 | 1450 | 1150 | >=3600 | 800 | 950 | 1100 | - | 2.2 |
| 300 | Trolley Type | 1000 | 1000 | 1100 | 1500 | 1200 | >=3600 | 1200 | 1000 | 1200 | - | 3 |
| 500 | Trolley Type | 1100 | 1100 | 1200 | 1600 | 1300 | >=3600 | 1200 | 1100 | 1300 | - | 4 |
1. Price
Re: please send us inquiry from Alibaba, we will qutoe to you within 24 hours. It’s more convenient and appreciated for us if you provide your company details and your detail inquiry for elevators.
2. Payment term
Re: T/T or L/C at sight.
3. Installation&Maintaining
Re: We will send installation&maintaining manual along with the elevator.
Our sugguestion is to hire a professional local company for installation and future maintaining,
once you need any technical assistant from us, just don't hesitate to contact us by mail or phone.
Technician will be sent to the job site if necessary.
4. Shipping&price term
Re: Both FOB/CIF/CFR price term are ok, we have reliable forwarder helping arrange the shipment for you.
