Overview
Essential details
| Warranty: | 1 Year | After-sale Service: | Online technical support, Onsite Installation, Onsite Training, Onsite Inspection |
| Project Solution Capability: | 3D model design, Cross Categories Consolidation | Application: | Office Building |
| Design Style: | Modern | Place of Origin: | Jiangsu, China |
| Brand Name: | NOVA | Model Number: | T45/A |
| Type: | Gearless Electric Motor MRL | Product name: | elevator fishplate |
| Brand: | NOVA | Transportation: | Sea |
| Payment: | TT LC | Delivery Time: | FAST |
| Package: | Wooden Box | Elevator Parts: | Elevator Fishplate |
| Certificate: | ISO7465 | Color: | Black |
| Country of Origin: | CHINA |
Supply Ability
| Supply Ability | 100000 Piece/Pieces per Year |
Packaging & delivery
| Packaging Details | Standard Sea Packing | Port | FOB SHANGHAI |
| Picture Example: |
Product Detail
Product Description
Product Paramenters

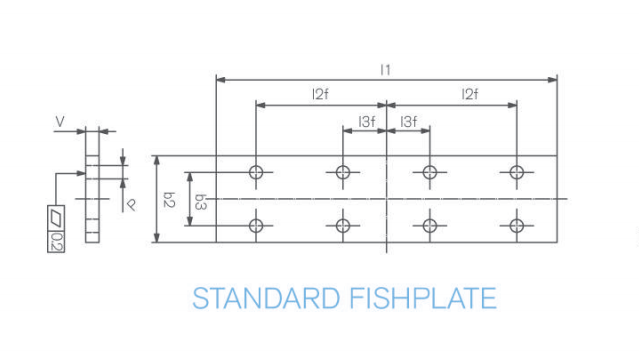

Suitable Rail Model | d | l1 | l2f | l3f | b2 | b3 | vmin | Bolt | |
T45/A | 9 | 160 | 65 | 15 | 50 | 25 | 8 | M8x25 | |
T50/A | 9 | 200 | 75 | 25 | 50 | 30 | 8 | M8x25 | |
T70/A | 13 | 250 | 105 | 25 | 70 | 42 | 10 | M12x35 | |
T70-1/B | 13 | 250 | 105 | 25 | 70 | 42 | 10 | M12x35 | |
T75-3/B | 13 | 250 | 105 | 25 | 70 | 42 | 10 | M12x35 | |
T78/B | 13 | 250 | 105 | 25 | 70 | 42 | 10 | M12x35 | |
T82/B | 13 | 216 | 80 | 26 | 80 | 50.8 | 10 | M12x35 | |
T89/B | 13 | 305 | 114.3 | 38.1 | 90 | 57.2 | 13 | M12x35 | |
T90/B | 13 | 305 | 114.3 | 38.1 | 90 | 57.2 | 13 | M12x35 | |
T114/B | 17 | 305 | 114.3 | 38.1 | 120 | 70 | 17 | M16x50 | |
T127-1/B | 17 | 305 | 114.3 | 38.1 | 130 | 79.4 | 17 | M16x50 | |
T127-2/B | 17 | 305 | 114.3 | 38.1 | 130 | 79.4 | 17 | M16x50 | |
T140-1/B | 21 | 380 | 152.4 | 31.8 | 140 | 92.1 | 28 | M20x65 | |
T140-2/B | 21 | 380 | 152.4 | 31.8 | 140 | 92.1 | 28 | M20x65 | |
T140-3/B | 21 | 380 | 152.4 | 31.8 | 140 | 92.1 | 38 | M20x80 | |
Tolerances | - | +3 | ±0.2 | ±0.2 | - | ±0.2 | +3 | - | |
0 | 0 | ||||||||

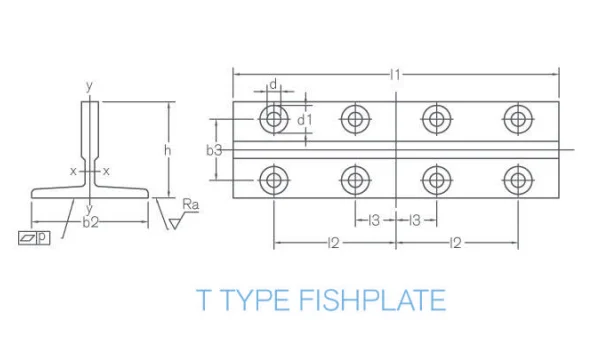

Suitable Rail Model | d | d1 | b2 | b3 | l1 | l2 | l3 | h | |
Type | mm | mm | mm | mm | mm | mm | mm | mm | |
T75-3/B | 13 | 26 | 75 | 43 | 240 | 90 | 30 | 61 | |
T78/B | 13 | 26 | 78 | 43 | 240 | 90 | 30 | 55 | |
T82/B | 13 | 26 | 82.5 | 50.8 | 216 | 81 | 27 | 66.6 | |
T89/B | 13 | 26 | 89 | 57.2 | 305 | 114.3 | 38.1 | 61 | |
T90/B | 13 | 26 | 90 | 57.2 | 305 | 114.3 | 38.1 | 74 | |
T114/B | 17 | 33 | 114 | 79.4 | 305 | 114.3 | 38.1 | 88 | |
T127-1/B | 17 | 33 | 127 | 79.4 | 305 | 114.3 | 38.1 | 88 | |
T127-2/B | 17 | 33 | 127 | 79.4 | 305 | 114.3 | 38.1 | 88 | |
T140-1/B | 21 | 40 | 140 | 92.1 | 380 | 152.4 | 31.8 | 107 | |
T140-2/B | 21 | 40 | 140 | 92.1 | 380 | 152.4 | 31.8 | 101 | |
T140-3/B | 21 | 40 | 140 | 92.1 | 380 | 152.4 | 31.8 | 126 | |
Tolerances | - | - | ±1.5 | ±0.2 | ±1.5 | ±0.2 | ±0.2 | ±0.1 | |
Suitable Rail Model | wxx | wyy | weight | bolt | |
Type | cm³ | cm³ | kg/pc | size | |
T75-3/B | 9.29 | 7.06 | 2.1 | M12x35 | |
T78/B | 7.56 | 6.71 | 1.8 | M12x35 | |
T82/B | 10.20 | 7.40 | 1.36 | M12x35 | |
T89/B | 14.25 | 11.80 | 3.8 | M12x35 | |
T90/B | 20.87 | 11.80 | 4.1 | M12x35 | |
T114/B | 29.70 | 19.10 | 5.0 | M16x50 | |
T127-1/B | 30.40 | 23.40 | 5.4 | M16x50 | |
T127-2/B | 30.90 | 36.20 | 6.9 | M16x50 | |
T140-1/B | 53.40 | 44.30 | 10.5 | M20x65 | |
T140-2/B | 68.00 | 51.20 | 12.9 | M20x65 | |
T140-3/B | 114.60 | 69.40 | 17.5 | M20x65 | |
Tolerances | - | - | - | - | |
