30W power elevator wall hanging air sterilizer disinfection purifier
Email: sales@novaelevator.com
Tel: 008613601565806
description1
Zipper closure
1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying
fabric for superior performance.
REGULAR FIT - US standard sizes. An athletic fit that sits close to the
body
for a wide range of motion, designed for optimal performance and all day
comfort.
FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them
in
place during workout
Overview
Essential details
| Warranty: | 1 Year | After-sale Service: | Online technical support, Onsite Installation, Onsite Training, Onsite Inspection |
| Project Solution Capability: | graphic design, total solution for projects | Application: | Office Building |
| Design Style: | Modern | Place of Origin: | Jiangsu, China |
| Brand Name: | NOVA | Model Number: | NV |
| Type: | None | Product name: | Elevator air purifier |
| Size: | 300*150*66mm | Weight: | 1.5KGS |
| Circulation air volume: | 60m3/h @0Pa | Virus (A and B) killing efficiency: | 99% |
| Virus (MERS-CoV) killing efficiency: | 98% | Adapter rated voltage: | 220V 50/60Hz |
| Maximum operating current: | 1.25A(24v DV) | Power adapter output voltage: | 24V DC |
| Range of working temperature: | -20℃~45℃ |
Supply Ability
| Supply Ability | 1000 Piece/Pieces per Month |
Packaging & delivery
| Packaging Details | Carton Box | Port | ShangHai |
| Picture Example: |
Product Detail
Product Description
Product Outline
1. Double functions of highly efficient disinfection and purification
2. All-round disinfection and purification of elevator air and walls
3. Peaceful coexistence of human and machine to realize real-time
4. disinfection and purification
5. Ultar-thin design for easy installation and maintenance
6. Intelligent biological recognition
7. Internet of Things optional

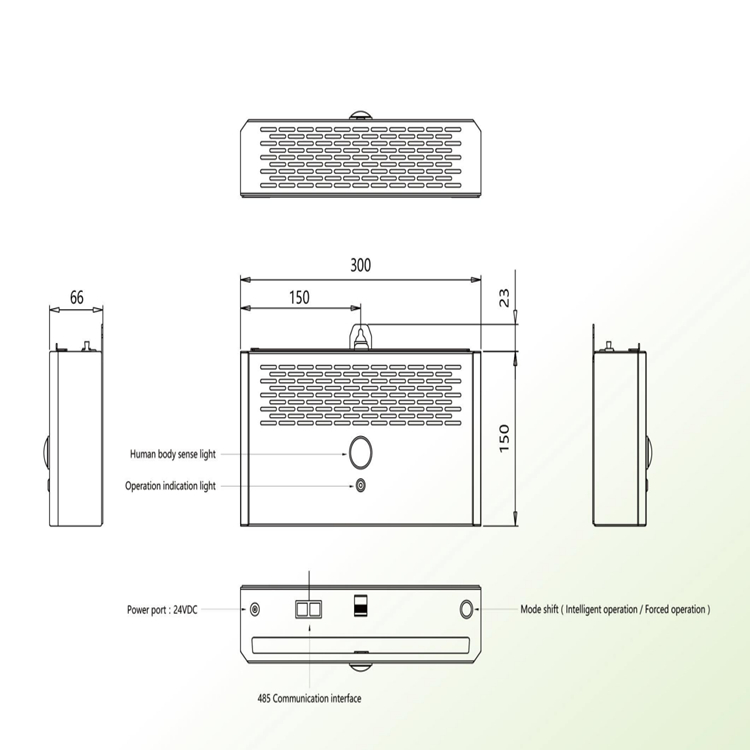

Specification
Size | 300*150*66mm |
Weight | 1.5kg |
Circulation air volume | 60m3/h @0Pa |
Virus (A and B) killing efficiency | 99% |
Virus (MERS-CoV) killing efficiency | 98% |
30WRated power | 30W |
Adapter rated voltage | 220V 50/60Hz |
Maximum operating current | 1.25A（24v DV) |
Power adapter output voltage | 24V DC |
Range of working temperature | -20℃～45℃ |
Ways of Installation

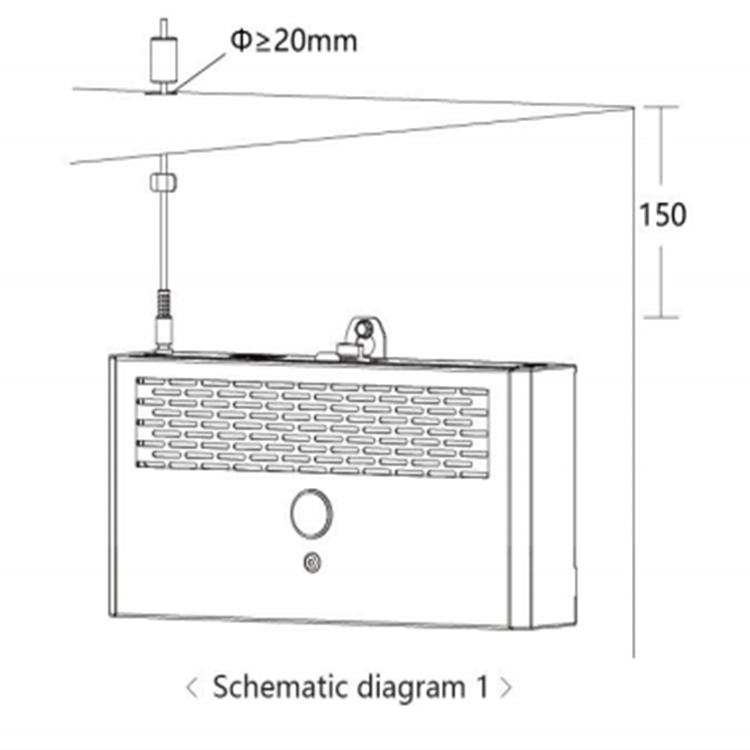

It is recommended to punch the bottom hole 150 mm
from the top of the cage side wall.
(Reserving top routing and operating space, and the crossing diameter is recommended to be no less than 20mm)
Ps. The positioning holes is recommended as 4.5mm for
plate of 1.5-1 8mm in thickness; and 4. 6mm for plate of 1.8-2.5mm in thickness. (Schematic diagram 1)

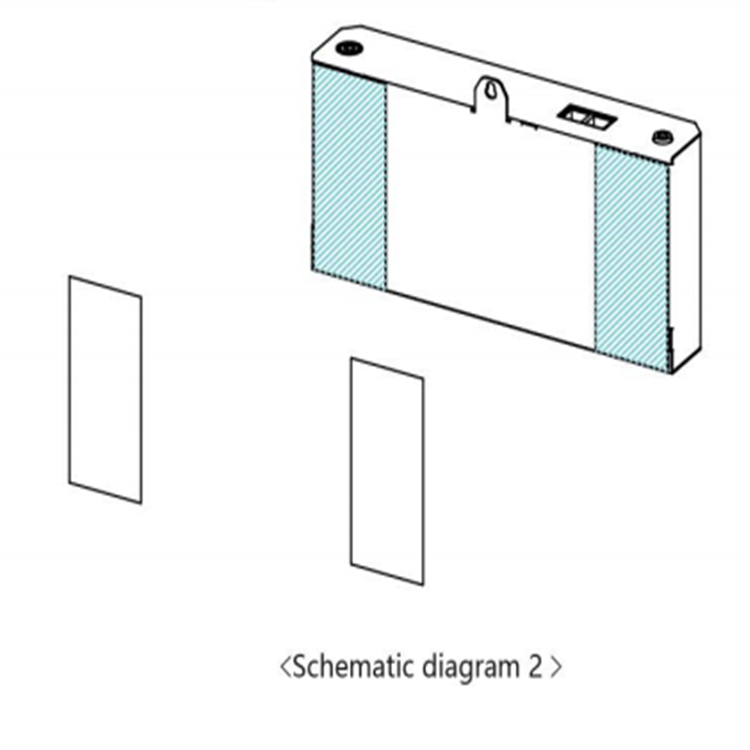

Tear off 3M tape on back of machine. (Schematic diagram 2)

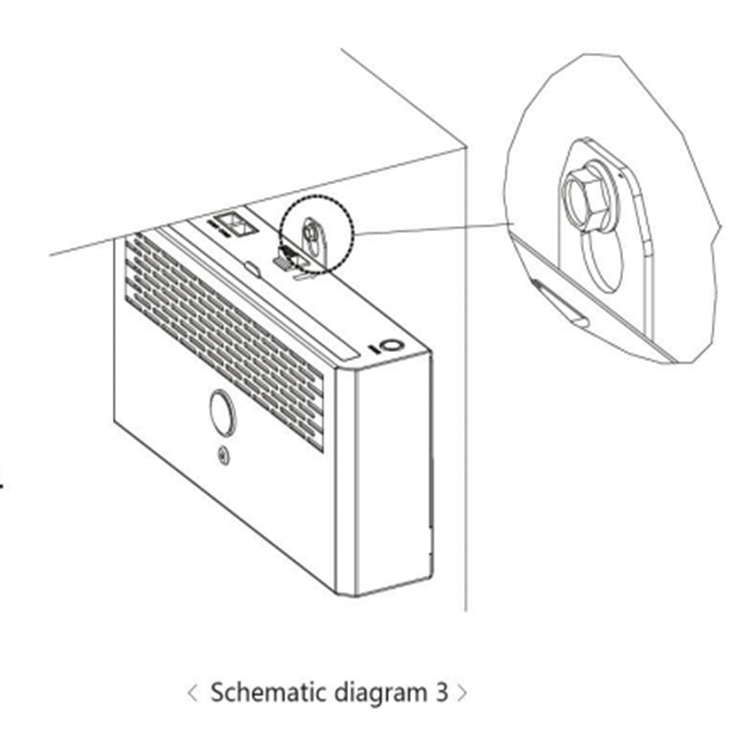

Align the hanging hole on the top of purifier with posstioning hole and attach the machine on the wall.
Then screw in self-tapping bolt slowly with electricalscrewdriver and hexagon sleeve.
Ps. The torque varies according to different plate thickness and material.
Pls screw with small strength to avoid the breakdown of bolt and adjust the strength little by little. (Schematic diagram 3)

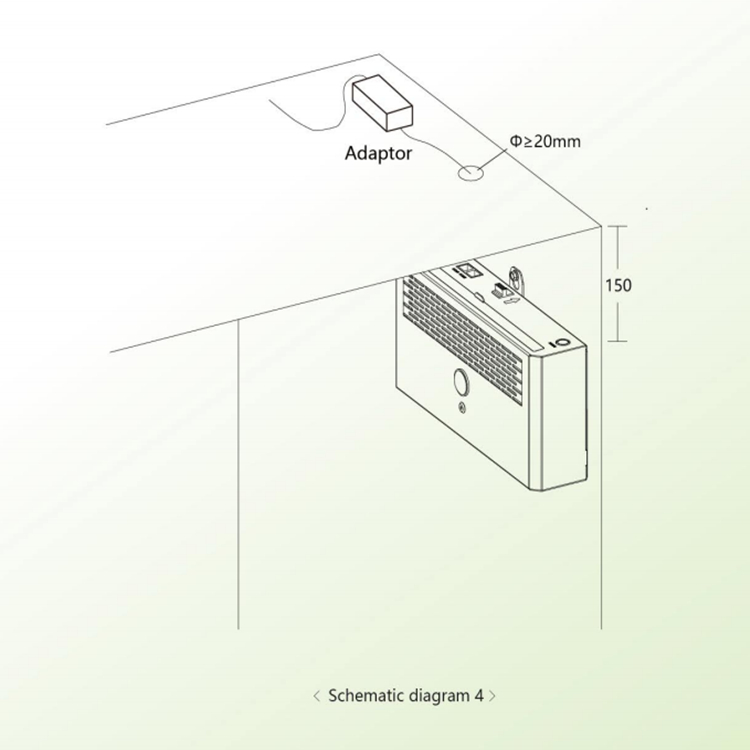

Connect adaptor and purifier (Schematic diagram 4)
and plunge the other end of cable into 220V power source.
Then the disinfection machine works by pressing the button.

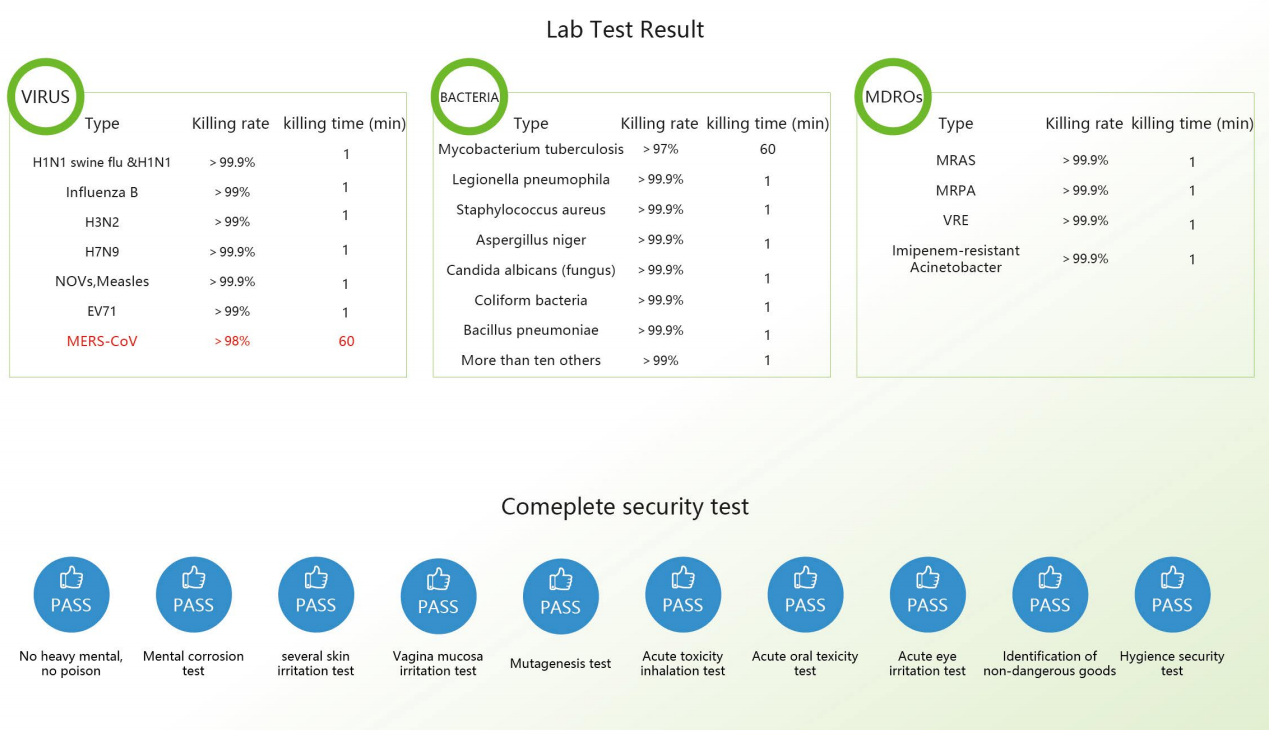

Related Tests
Company Profile
Exhibition
Product packaging
FAQ
1. Price
Re: please send us inquiry from Alibaba, we will qutoe to you within 24 hours. It’s more convenient and appreciated for us if you provide your company details and your detail inquiry for elevators.
2. Payment term
Re: T/T or L/C at sight.
3. Installation&Maintaining
Re: We will send installation&maintaining manual along with the elevator.
Our sugguestion is to hire a professional local company for installation and future maintaining,
once you need any technical assistant from us, just don't hesitate to contact us by mail or phone.
Technician will be sent to the job site if necessary.
4. Shipping&price term
Re: Both FOB/CIF/CFR price term are ok, we have reliable forwarder helping arrange the shipment for you.
