Easy operation elevator parts motor gearless traction machine
Email: sales@novaelevator.com
Tel: 008613601565806
description1
Zipper closure
1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying
fabric for superior performance.
REGULAR FIT - US standard sizes. An athletic fit that sits close to the
body
for a wide range of motion, designed for optimal performance and all day
comfort.
FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them
in
place during workout
Overview
Essential details
| Warranty: | 1 Year | After-sale Service: | Online technical support, Onsite Installation, Onsite Training, Onsite Inspection |
| Project Solution Capability: | graphic design, total solution for projects | Application: | Office Building |
| Design Style: | Contemporary | Place of Origin: | Jiangsu, China |
| Brand Name: | NOVA | Model Number: | NV |
| Type: | None, Geraless or geared | Keyword: | Elevator parts traction machine |
| Factory: | Yes | Certification: | ISO9001:2008,DAS,IAF,UKAS |
| Speed: | 0.5m/s-2.5m/s | Voltage: | 220V or 380V |
| Roping: | 2:1 or 1:1 | Drive: | VVVF,AC1,AC2 |
| Travel height: | less than 80m | Material: | Metal |
Supply Ability
| Supply Ability | 10000 Set/Sets per Year |
Packaging & delivery
| Packaging Details | Standard export package | Port | FOB SHANGHAI |
| Picture Example: |
Product Detail
Product Description
Product Description

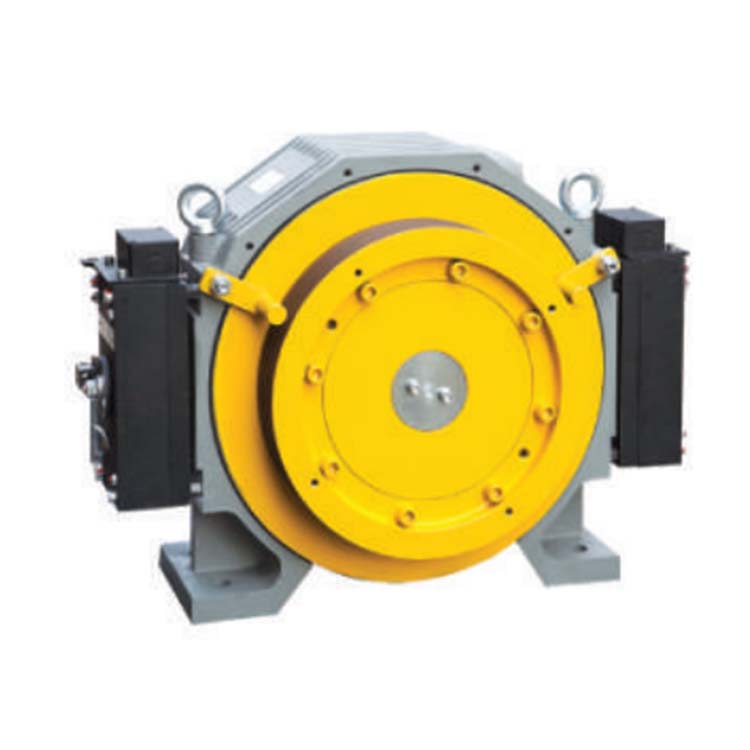

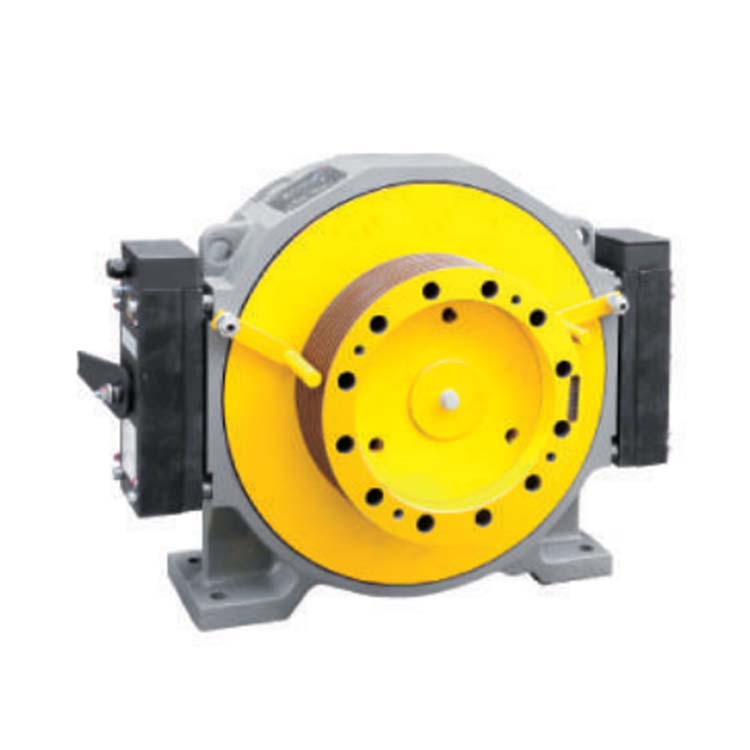

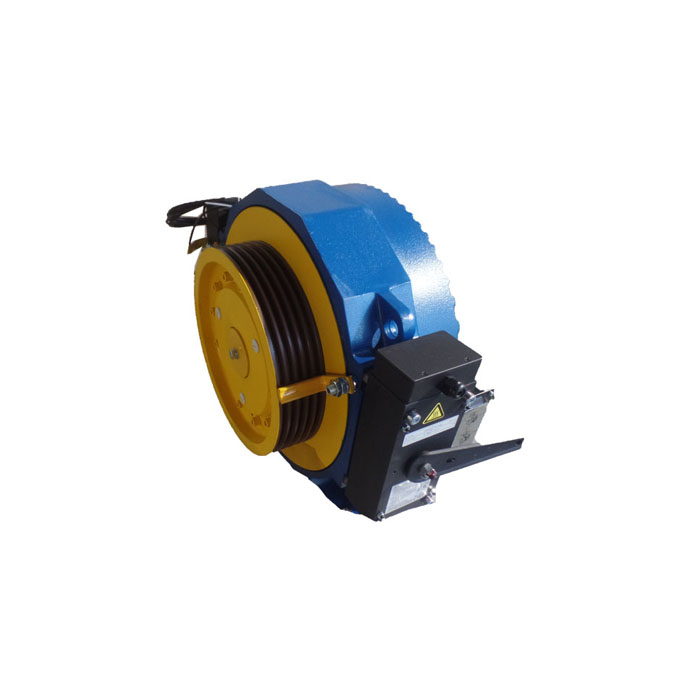

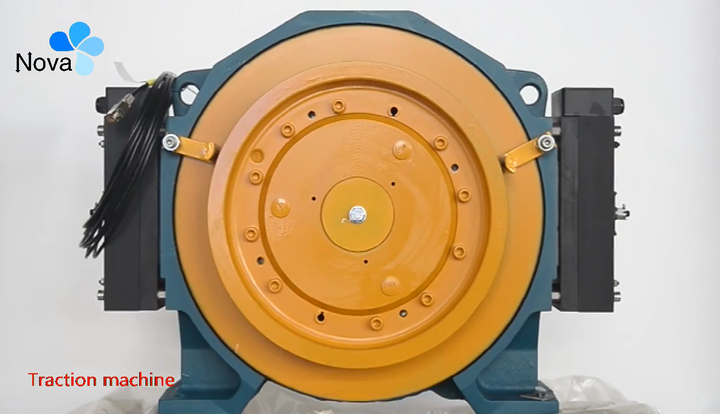

Using the permanent magnet synchronous gearless traction machine as the power source, it is small in size and compact in structure, which can meet the design requirements of small machine room and provide more free design space for architectural design.
Name | Elevator Gearless Traction Machine |
Voltage | 380V |
Speed(m/s) | 1 - 2.5 |
Roping | 2:1 |
Weight | 350kg |
Max. Shaft Load | 3000kg |
Brake | DC110V 2×0.88A |
Details Images
Model | Load (Kg) | Speed (m/s) | Sheave Diam (mm) | Rope Sheave (mm) | Current (A) | Torque (Nm) | Rated Speed (rpm) | Frequency (Hz) | Power (kW) |
NV41T-W7 | 630 | 1 | Φ400 | 4×Φ10×16 | 9.7 | 420 | 96 | 25.6 | 4.2 |
NV41T-W7 | 630 | 1.5 | Φ400 | 4×Φ10×16 | 14.9 | 420 | 144 | 38.4 | 6.3 |
NV41T-W7 | 630 | 1.6 | Φ400 | 4×Φ10×16 | 14.9 | 420 | 153 | 40.8 | 6.7 |
NV41T-W7 | 630 | 1.75 | Φ400 | 4×Φ10×16 | 15.9 | 420 | 167 | 44.5 | 7.3 |
NV41T-W7 | 630 | 2 | Φ400 | 4×Φ10×16 | 18.3 | 420 | 192 | 51.2 | 8.4 |
NV41T-W7 | 800 | 1 | Φ400 | 5×Φ10×16 | 12.1 | 530 | 96 | 25.6 | 5.3 |
NV41T-W7 | 800 | 1.5 | Φ400 | 5×Φ10×16 | 18.8 | 530 | 144 | 38.4 | 8 |
NV41T-W7 | 800 | 1.6 | Φ400 | 5×Φ10×16 | 18.8 | 530 | 153 | 40.8 | 8.5 |
NV41T-W7 | 800 | 1.75 | Φ400 | 5×Φ10×16 | 20.7 | 530 | 167 | 44.5 | 9.3 |
NV41T-W7 | 800 | 2 | Φ400 | 5×Φ10×16 | 23.2 | 530 | 192 | 51.2 | 10.7 |
NV41T-W7 | 1000 | 1 | Φ400 | 5×Φ10×16 | 14.7 | 650 | 96 | 25.6 | 6.5 |
NV41T-W7 | 1000 | 1.5 | Φ400 | 5×Φ10×16 | 22.9 | 650 | 144 | 38.4 | 9.8 |
NV41T-W7 | 1000 | 1.6 | Φ400 | 5×Φ10×16 | 22.9 | 650 | 153 | 40.8 | 10.4 |
NV41T-W7 | 1000 | 1.75 | Φ400 | 5×Φ10×16 | 25.1 | 650 | 167 | 44.5 | 11.4 |
NV41T-W7 | 1000 | 2 | Φ400 | 5×Φ10×16 | 28.2 | 650 | 192 | 51.2 | 13.1 |

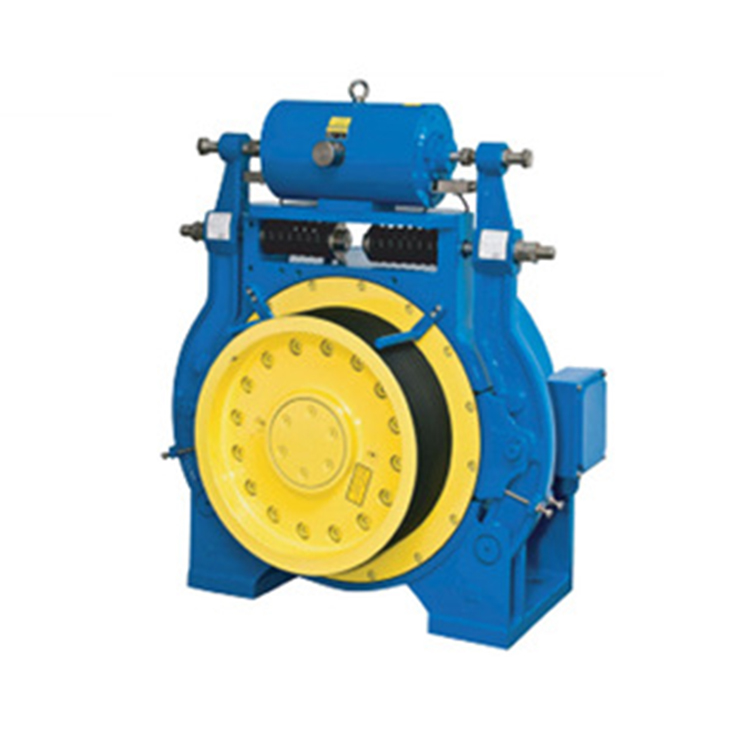

Different Models
Main Product Catalog
Shaft Components
Machined /Cold Drawn/ Hollow Guide Rail, Fishplate, Fasteners, Anchor Bolt, Rail Rracket etc.
Door System
Mitsubishi, Fermator and Selcom Door Operator and Landing Door, Door Panel, Door Spare Parts,Safety Light Curtain/Photocell etc.
Traction System
Geared/Gearless Traction Machine, Pulley Sheave,Anti-Vibration Pad,Steel Wire Rope etc.
Elevator Cabin
Complete Elevaotr Cabin, Car Frame, Counterweight Frame and Counterweight Block,Guide Shoes, Rope Attachment etc.
Electrical Components
Integrated and Separated Controlling Cabinet,Yaskawa L1000A Inverter, Elevator Display,COP&LOP&HOP, Elevator Button,
Flat Traveling Cable etc.
Safety Components
Safety Gear, Speed Governor, Rope Brake, Oil Buffer and Rubber Buffer etc.
Company Profile
Exhibition
Product Packaging
FAQ
1. Price
Re: please send us inquiry from Alibaba, we will qutoe to you within 24 hours. It’s more convenient and appreciated for us if you provide your company details and your detail inquiry for elevators.
2. Payment term
Re: T/T or L/C at sight.
3. Installation&Maintaining
Re: We will send installation&maintaining manual along with the elevator.
Our sugguestion is to hire a professional local company for installation and future maintaining,
once you need any technical assistant from us, just don't hesitate to contact us by mail or phone.
Technician will be sent to the job site if necessary.
4. Shipping&price term
Re: Both FOB/CIF/CFR price term are ok, we have reliable forwarder helping arrange the shipment for you.
