Elevator Spare Parts Lift Roller Elevator Guide Shoe
Email: sales@novaelevator.com
Tel: 008613601565806
description1
Zipper closure
1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying
fabric for superior performance.
REGULAR FIT - US standard sizes. An athletic fit that sits close to the
body
for a wide range of motion, designed for optimal performance and all day
comfort.
FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them
in
place during workout
Overview
Essential details
| Warranty: | 1 Year | After-sale Service: | Online technical support, Onsite Inspection |
| Project Solution Capability: | graphic design, total solution for projects | Application: | Hotel |
| Design Style: | Modern | Place of Origin: | Jiangsu, China |
| Brand Name: | NOVA | Model Number: | NONE |
| Type: | Elevator | Product name: | elevator |
| Warranty Time: | 1-3years Based | Payment Terms: | T.T |
| Original: | China JiangSu | Transportation: | DHL TNT FEDEX SEA |
| Delivery Time: | 3~15 Working Days | Package: | Standard Package |
| Drive: | VVVF Drive | Feature: | Strong |
| Size: | Nova Standard |
Supply Ability
| Supply Ability | 500 Set/Sets per Month |
Packaging & delivery
| Packaging Details | Wooden cases packing in 20' and 40' container | Port | FOB SHANGHAI |
| Picture Example: |
Product Detail

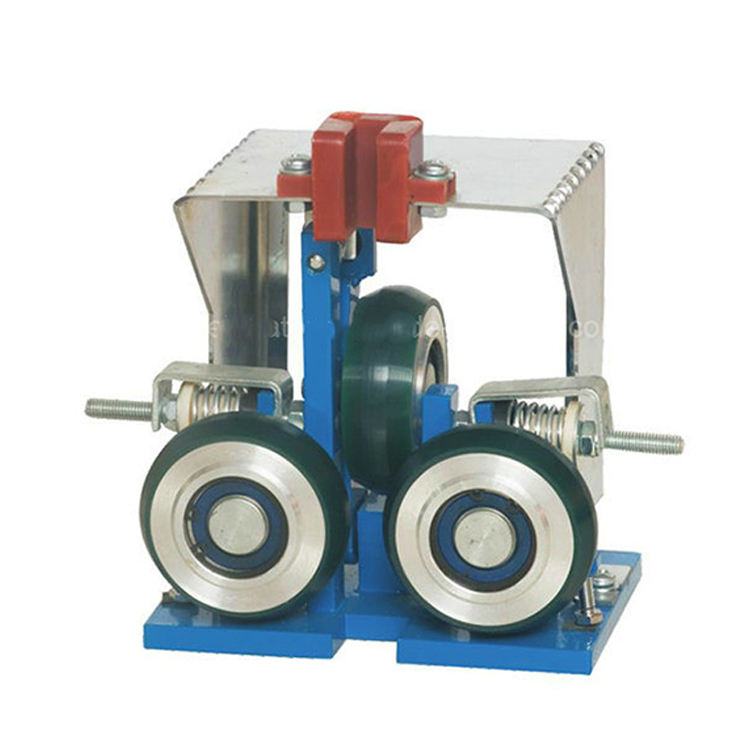

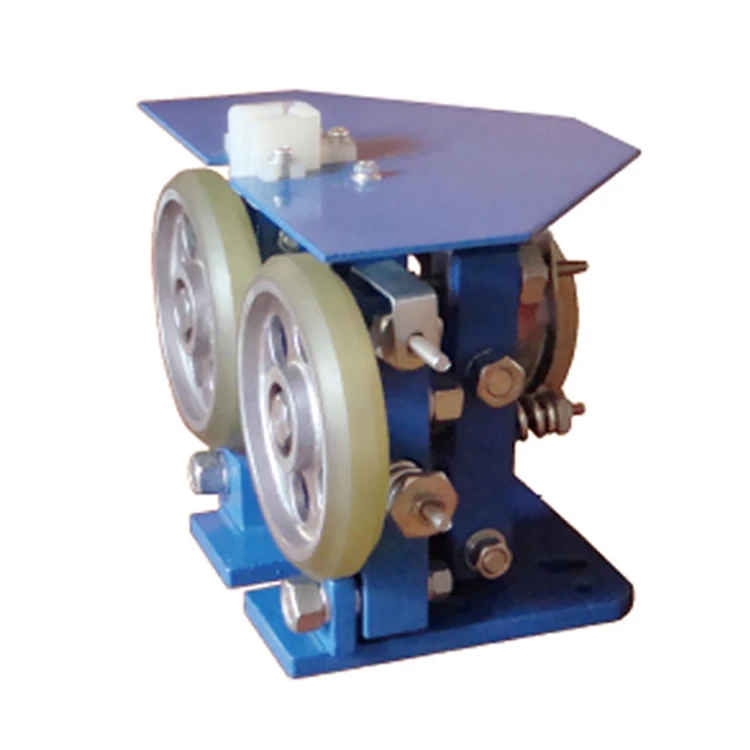

Product Description

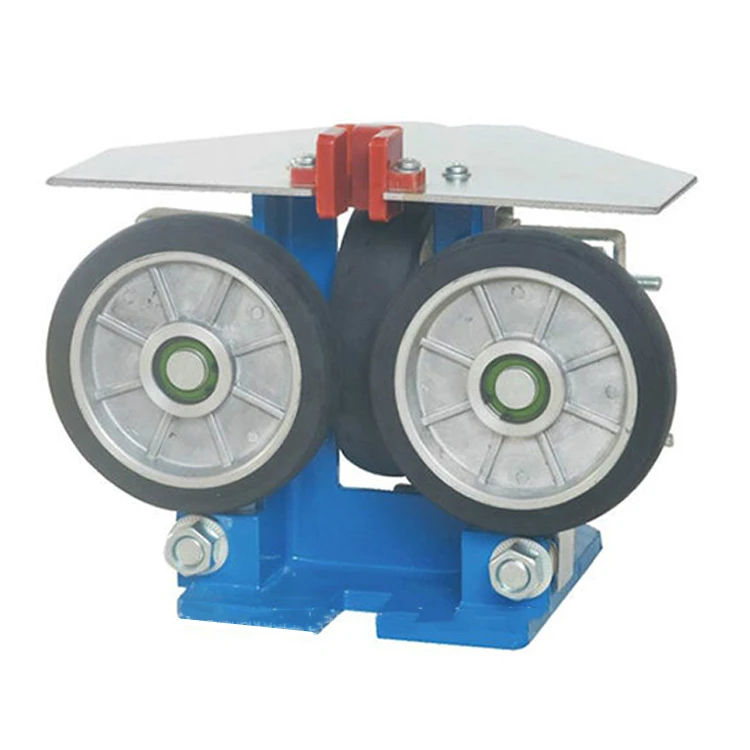

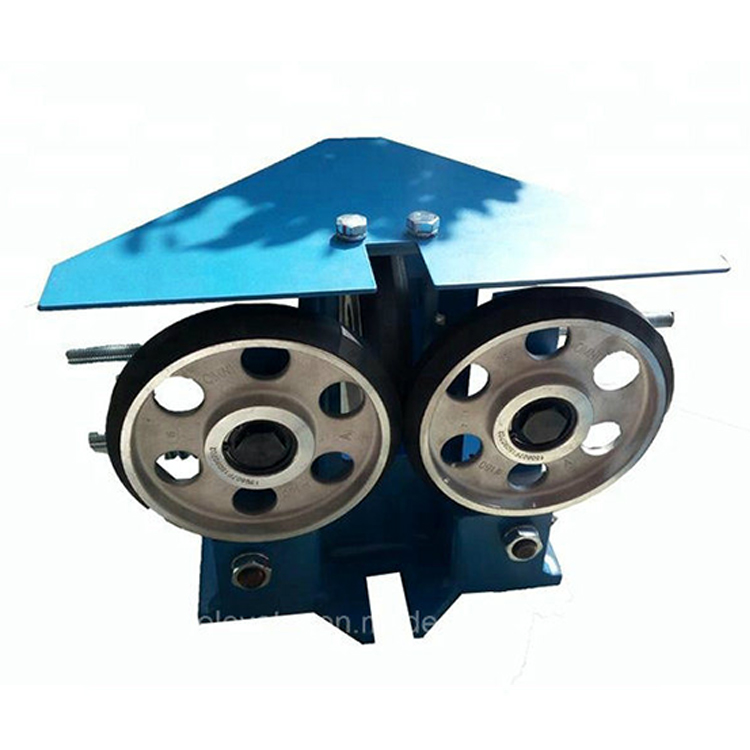

The guide shoe is a slidable nylon block between the elevator guide rail and the cabin. It is called guide shoe. It can fix the cabin on the guide rail so that the cabin can only move up and down. There is an oil cup on the guide shoe to reduce the shoe lining. Friction with the guide rail.
Product Paramenters
NOVA Code | Roller Dia.(mm) | Rated Speed(m/s) | Rated Load(kg) | Width of guiade rail(mm) |
NV25R-001 | φ125 | ≤2.5 | ≤1600 | 10/16 |
NV25R-002 | φ160 | ≤3.0 | ≤1600 | 10/16 |
NV25R-003 | φ76 | ≤3.5 | ≤3000 | 10/16 |
NV25R-004 | φ150 | ≤3.5 | ≤2700 | 10/16 |
NV25R-005 | φ82.3 | ≤2.0 | ≤2500 | 10/16 |
NV25R-006 | φ70 | ≤0.63 | ≤450 | 10/16 |
NV25R-007 | φ80 | ≤3.5 | ≤2700 | 10/16 |
NV25R-HZ80 | φ80 | ≤2.5 | ≤2000 | 9/10/16 |
NV25R-HZ100 | φ100 | ≤3.5 | ≤2000 | 9/10/16 |
NV25R-HZ125 | φ125 | ≤7.0 | ≤2000 | 9/10/16 |
NV25R-HZ150 | φ150 | ≤7.0 | ≤4500 | 9/10/16 |
NV25R-HZ200 | φ200 | ≤10.0 | ≤4500 | 16/19/28.6/31.75 |
