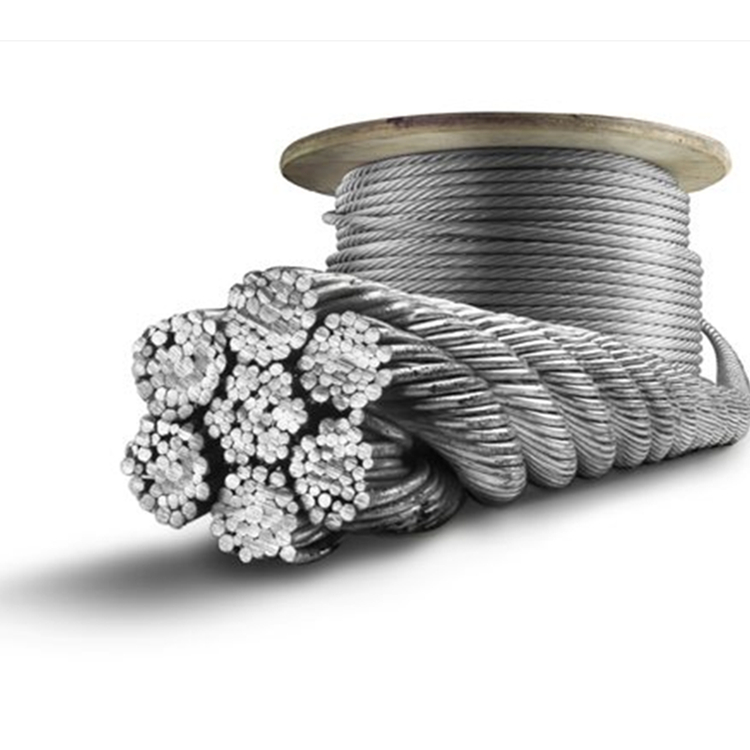

Galvanized Elevator 6x19 Stainless Steel Wire Rope For Sale
Email: sales@novaelevator.com
Tel: 008613601565806
description1
Zipper closure
1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying
fabric for superior performance.
REGULAR FIT - US standard sizes. An athletic fit that sits close to the
body
for a wide range of motion, designed for optimal performance and all day
comfort.
FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them
in
place during workout
Overview
Essential details
| Steel Grade: | steel | Standard: | GB |
| Place of Origin: | Jiangsu, China | Type: | galvanized, Elevator Parts |
| Application: | Rope | Alloy Or Not: | Non-Alloy |
| Special Use: | Free Cutting Steel | Model Number: | NV |
| Brand Name: | NOVA | Tolerance: | ±1% |
| Processing Service: | Bending, Welding, Punching, Decoiling, Cutting | Grade: | steel |
| Keyword: | Elevator Steel Wire Rope | Material: | Stainless Steel |
| 500-1000kg: | 500-1000kg | Speed: | 1.00 - 2.00m/s |
| Length: | Optional | Colour: | Silvery |
| Rope Diameter: | 6-22mm | Certification: | ISO9001:2000, ISO14001, OHSAS18001, IS09001:2008, GB/T 19001-2008. |
| Brand: | NOVA |
Supply Ability
| Supply Ability | 500000000 Meter/Meters per Year |
Packaging & delivery
| Packaging Details | Wooden cases packing in 20' and 40' container | Port | FOB SHANGHAI |
| Picture Example: |
Product Detail
Product Description
Product Paramenters
1. This rope is for low speed, low duty elevators
2. If elevator with high speed, please contact us
3. We can also produce as customer's requirements
4. Above specifications just for your reference. Error may occur in actual situation.
Nominal Rope Diameter | 6*19S+PP | Minimum Breaking Load | |||
Dual Tensile,Mpa | Single Tensile,Mpa | ||||
1370/1770 | 1570/1770 | 1570 | 1770 | ||
mm | Kg/100m | kN | kN | kN | kN |
6 | 12.9 | 17.8 | 19.5 | 18.7 | 21 |
8 | 23 | 31.7 | 34.6 | 33.2 | 37.4 |
Natural fiber core(NFC): Suspension ropes for medium duty elevators
Elevator speed≤20M/Ss, Building height≤60M
Nominal Rope Diameter | Approx Weight | Minimum Breaking Load | |||
Dual Tensile,Mpa | Single Tensile,Mpa | ||||
1370/1770 | 1570/1770 | 1570 | 1770 | ||
mm | Kg/100m | kN | kN | kN | kN |
8 | 21.8 | 28.1 | 30.8 | 29.4 | 33.2 |
9 | 27.5 | 35.6 | 38.9 | 37.3 | 42 |
10 | 34 | 44 | 48.1 | 46 | 51.9 |
11 | 41.1 | 53.2 | 58.1 | 55.7 | 62.8 |
12 | 49 | 63.3 | 69.2 | 66.2 | 74.7 |
13 | 57.5 | 74.3 | 81.2 | 77.7 | 87.6 |
14 | 66.6 | 86.1 | 94.2 | 90.2 | 102 |
15 | 76.5 | 98.9 | 108 | 104 | 117 |
16 | 87 | 113 | 123 | 118 | 133 |
18 | 110 | 142 | 156 | 149 | 168 |
19 | 123 | 159 | 173 | 166 | 187 |
20 | 136 | 176 | 192 | 184 | 207 |
22 | 165 | 213 | 233 | 223 | 251 |
For IWRC, speed>4.0 m/s, Building height> 100m
For TWRF,20< speed≤40m/ s, Building heigh≤100m
Nominal Rope Diameter | Approx Weight | Minimum Breaking Load | ||||
Dual Tensile,Mpa | ||||||
1370/1770 | 1570/1770 | 1620/1770 | ||||
IWRC | IWRF | IWRC | IWRF | IWRC | IWRF | |
mm | Kg/100m | kN | kN | |||
8 | 26 | 25.9 | 35.8 | 35.2 | 38 | 37.4 |
9 | 33 | 32.8 | 45.3 | 44.5 | 48.2 | 47.3 |
10 | 40.7 | 40.5 | 55.9 | 55 | 59.5 | 58.5 |
11 | 49.2 | 49 | 67.6 | 66.5 | 79.1 | 70.7 |
12 | 58.6 | 58.3 | 80.5 | 79.1 | 85.6 | 84.2 |
13 | 68.8 | 68.4 | 94.5 | 92.9 | 100 | 98.8 |
14 | 79.8 | 79.4 | 110 | 108 | 117 | 115 |
15 | 91.6 | 91.1 | 126 | 124 | 134 | 132 |
16 | 104 | 104 | 143 | 141 | 152 | 150 |
18 | 132 | 131 | 181 | 178 | 193 | 189 |
19 | 147 | 146 | 202 | 198 | 215 | 211 |
20 | 163 | 162 | 224 | 220 | 238 | 234 |
22 | 197 | 196 | 271 | 266 | 283 | 283 |
Nominal Rope Diameter | Approx Weight | Minimum Breaking Load | ||||||
Single Tensile,Mpa | ||||||||
1570 | 1620 | 1770 | ||||||
IWRC | IWRF | IWRC | IWRF | IWRC | IWRF | IWRC | IWRF | |
mm | Kg/100m | kN | kN | kN | ||||
8 | 26 | 25.9 | 35.8 | 35.2 | 36.9 | 35.2 | 40.3 | 39.6 |
9 | 33 | 32.8 | 45.3 | 44.5 | 46.7 | 45.9 | 51 | 50.2 |
10 | 40.7 | 40.5 | 55.9 | 55 | 57.7 | 56.7 | 63 | 62 |
11 | 49.2 | 49 | 67.6 | 66.5 | 69.8 | 68.6 | 76.2 | 75 |
12 | 58.6 | 58.3 | 80.5 | 79.1 | 83 | 81.6 | 90.7 | 89.2 |
13 | 68.8 | 68.4 | 94.5 | 92.9 | 97.5 | 98.5 | 106 | 105 |
14 | 79.8 | 79.4 | 110 | 108 | 113 | 111 | 124 | 121 |
15 | 91.6 | 91.1 | 126 | 124 | 130 | 128 | 142 | 139 |
16 | 104 | 104 | 143 | 141 | 148 | 145 | 161 | 159 |
18 | 132 | 131 | 181 | 178 | 187 | 184 | 204 | 201 |
19 | 147 | 146 | 202 | 198 | 208 | 205 | 227 | 224 |
20 | 163 | 162 | 224 | 220 | 231 | 227 | 252 | 248 |
22 | 197 | 196 | 271 | 266 | 279 | 274 | 305 | 300 |
