High quality Elevator Emergency Device Lift Automatic Rescue Device ARD
Email: sales@novaelevator.com
Tel: 008613601565806
description1
Zipper closure
1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying
fabric for superior performance.
REGULAR FIT - US standard sizes. An athletic fit that sits close to the
body
for a wide range of motion, designed for optimal performance and all day
comfort.
FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them
in
place during workout
Overview
Essential details
| Warranty: | 1 Year | After-sale Service: | Online technical support, Onsite Installation, Onsite Training, Onsite Inspection |
| Project Solution Capability: | graphic design, total solution for projects | Application: | Office Building |
| Design Style: | Industrial | Place of Origin: | Jiangsu, China |
| Brand Name: | NOVA | Model Number: | NV |
| Type: | None, Elevator Parts | Product name: | Elevator ARD |
| Brand: | NOVA | Certificate: | ISO9001 |
| Warranty Time: | 1 Year Under Normal | Payment Terms: | T/T |
| Original: | China Mainland | Feature: | Stabilize |
| Color: | White | Package: | Standard Package |
Supply Ability
| Supply Ability | 10000 Piece/Pieces per Year |
Packaging & delivery
| Packaging Details | Standard export package | Port | FOB SHANGHAI |
| Picture Example: |
Video Description
Product Detail
Product Description
When the elevator in progress suddenly encounters a power failure, power failure, phase loss, or fire, the device will automatically switch to work, output the electrical energy required by the elevator, run the elevator to the leveling position, and open the car door to allow passengers to safely get out of the elevator.
Features:
1. Automatic operation
2. Intelligently identify the elevator light load direction
3. Low power consumption and long life
4. Stable operation and strong guarantee

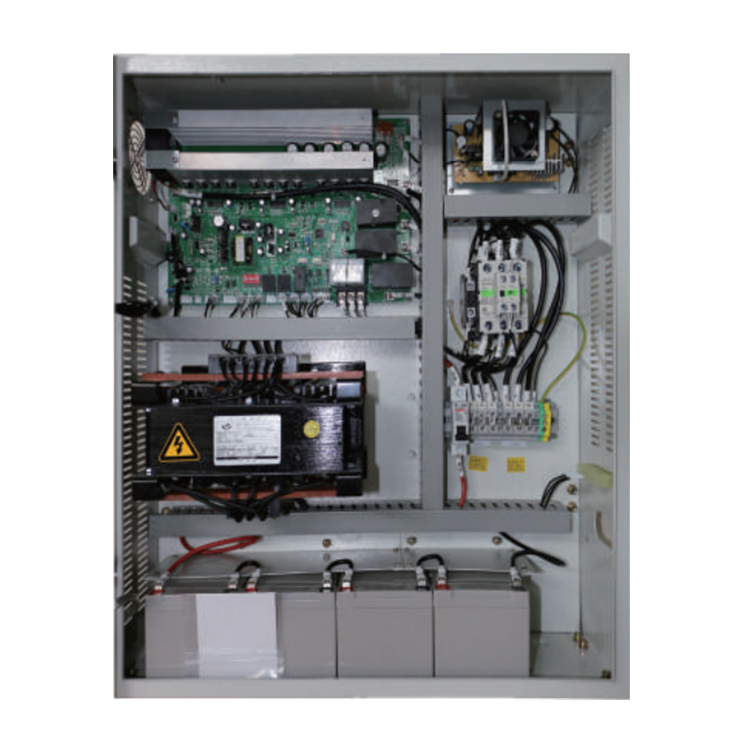

Details Images
Product Paramenters
Model | XT-ARD-110A | XT-ARD-150A | |
Adapt elevator frequency converter | 15KW | 30KW | |
Mains input | Voltage | Three-phase AC400V±10% | |
Frequency | 50Hz/60Hz | ||
Inverter output | Inverter output Voltage | Single phase AC400V±10% | |
Output frequency | 50Hz±5Hz (Rated value:50Hz) | ||
Efficiency | ≥0.8 | ||
Battery | Type | Lead acid special battery without adding liquid and maintenance | |
Rescue time | 3 Min(adjustable) | ||
Charging time | ≤6Hours | ||
Specifications | 12V7AH*2 | 12V12AH*2 | |
Environment | Temperature | 0℃～40℃ | |
Humidity | 30%~90%（non-condensible） | ||
Noise | ≤50DB | ||
Dimension L*W*H(mm) | 374*251*170 | 374*251*170 | |
Weight(KG) | 10.28 | 12.24 | |
Hot Products
Elevator Cabin
Elevator Controller
Elevator Traction Machine
Elevator Guide Rail
Elevator Door Operator
Elevator Speed Governor
Company Profile
Exhibition
Product Packaging
FAQ
1. Price
Re: please send us inquiry from Alibaba, we will qutoe to you within 24 hours. It’s more convenient and appreciated for us if you provide your company details and your detail inquiry for elevators.
2. Payment term
Re: T/T or L/C at sight.
3. Installation&Maintaining
Re: We will send installation&maintaining manual along with the elevator.
Our sugguestion is to hire a professional local company for installation and future maintaining,
once you need any technical assistant from us, just don't hesitate to contact us by mail or phone.
Technician will be sent to the job site if necessary.
4. Shipping&price term
Re: Both FOB/CIF/CFR price term are ok, we have reliable forwarder helping arrange the shipment for you.
