High quality lift gear electric elevator traction motor
Email: sales@novaelevator.com
Tel: 008613601565806
description1
Zipper closure
1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying
fabric for superior performance.
REGULAR FIT - US standard sizes. An athletic fit that sits close to the
body
for a wide range of motion, designed for optimal performance and all day
comfort.
FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them
in
place during workout
Overview
Essential details
| Warranty: | 1 Year | After-sale Service: | Online technical support, Onsite Installation, Onsite Training, Onsite Inspection |
| Project Solution Capability: | graphic design, total solution for projects | Application: | Office Building |
| Design Style: | Contemporary | Place of Origin: | Jiangsu, China |
| Brand Name: | NOVA | Model Number: | Elevator Parts |
| Type: | None, Geraless or geared | Keyword: | Elevator traction motor |
| Factory: | Yes | Certification: | ISO9001:2008,DAS,IAF,UKAS |
| Speed: | 0.5m/s-2.5m/s | Voltage: | 220V or 380V |
| Roping: | 2:1 or 1:1 | Drive: | VVVF,AC1,AC2 |
| Travel height: | less than 80m | Material: | Metal |
Supply Ability
| Supply Ability | 10000 Set/Sets per Year |
Packaging & delivery
| Packaging Details | Standard export package | Port | FOB SHANGHAI |
| Picture Example: |
Product Detail
Product Description

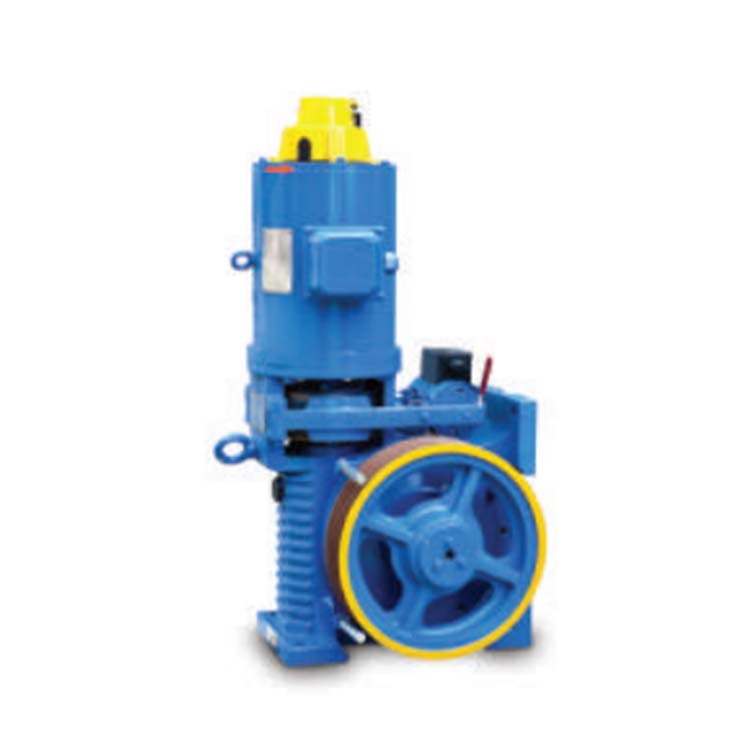

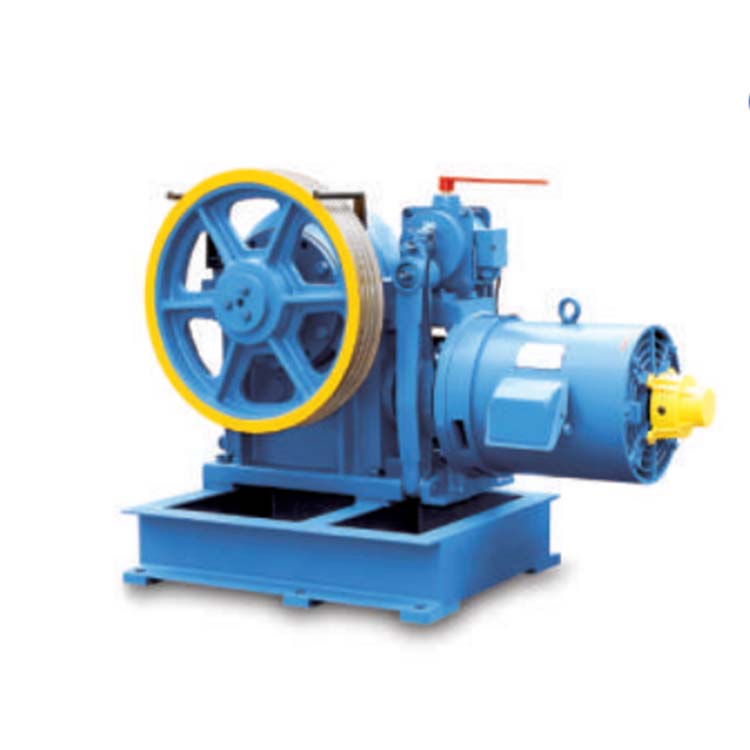

Elevator Geared Traction Machine
General Information for the Elevator Motor
1. Type: VVVF asynchronous and geared
2. Traction Sheave Location: Optional for right or left
3. Load: 2000KG to 2500KG
4. Speed: 0.5m/s to 2.0m/s
5. Application: For new elevator or elevator modernization
Features for Geared VVVF Asynchronous Elevator Traction Machine
1. High efficiency
2. Stable and low noise
3. High static load capacity
Model | NV41G |
Speed(m/s) | 0.5 - 2 |
Weight | 730kg |
Suspension | 1:1 |
Max.Static Load | 7500kg |
Control | VVVF |
Brake | DC110V 2A |
Details Images
Model | Load (kg) | Lift Speed (m/s) | Ratio | Sheave Diam (mm) | Rope Sheave (mm) | Motor Power (kW) | Pole |
NV41G | 800 | 1.6 | 59:2 | Φ620 | 5×Φ13×20 | 12.5 | 4 |
NV41G | 800 | 1.75 | 55:2 | Φ620 | 5×Φ13×20 | 15 | 4 |
NV41G | 800 | 2 | 49:2 | Φ620 | 6×Φ13×20 | 18.5 | 4 |
NV41G | 1000 | 1 | 49:1 | Φ620 | 5×Φ13×20 | 11 | 4 |
NV41G | 1000 | 1.6 | 59:2 | Φ620 | 6×Φ13×20 | 18.5 | 4 |
NV41G | 1000 | 1.75 | 55:2 | Φ620 | 6×Φ13×20 | 18.5 | 4 |
NV41G | 1000 | 2 | 49:2 | Φ620 | 6×Φ13×20 | 18.5 | 4 |
NV41G | 1150 | 1 | 49:1 | Φ620 | 6×Φ13×20 | 15 | 4 |
NV41G | 1150 | 1.6 | 59:2 | Φ620 | 6×Φ13×20 | 18.5 | 4 |
NV41G | 1150 | 1.75 | 55:2 | Φ620 | 6×Φ13×20 | 18.5 | 4 |
NV41G | 1150 | 2 | 49:2 | Φ620 | 6×Φ13×20 | 22 | 4 |
