Overview
Essential details
| Warranty: | 1 Year | After-sale Service: | Online technical support, Onsite Installation, Onsite Inspection |
| Project Solution Capability: | graphic design, total solution for projects | Application: | Hotel, Villa, Apartment, Office Building, Hospital, Mall, Supermarket, Warehouse |
| Place of Origin: | China | Brand Name: | NOVA |
| Model Number: | NV | Type: | None |

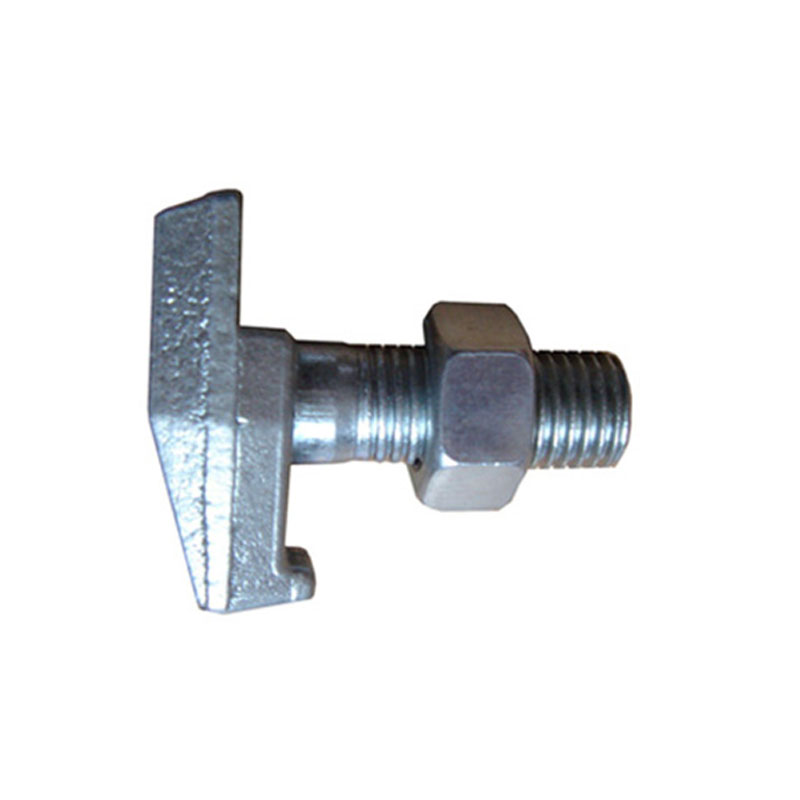

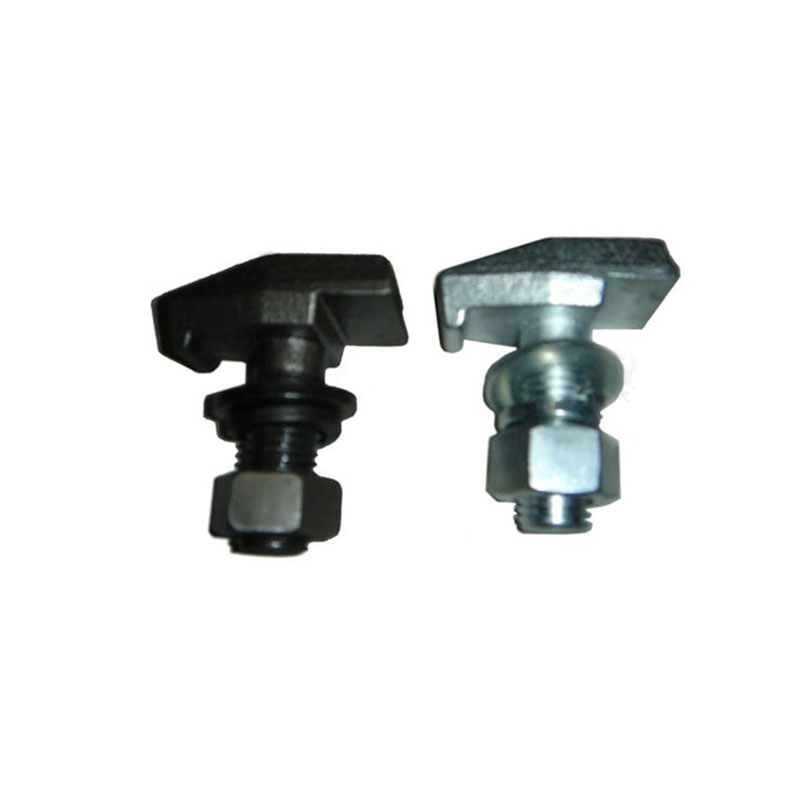

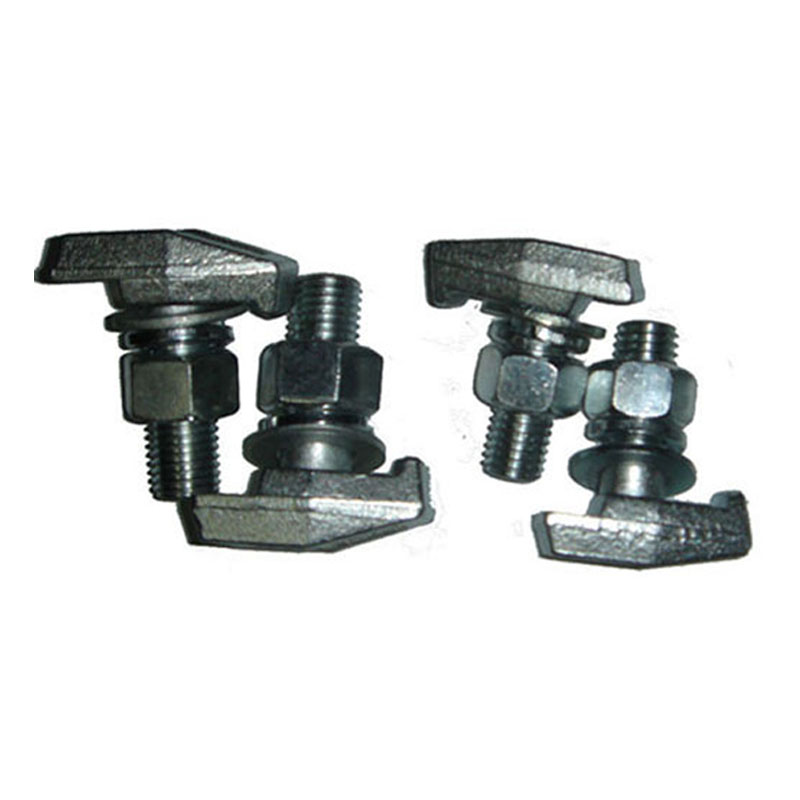

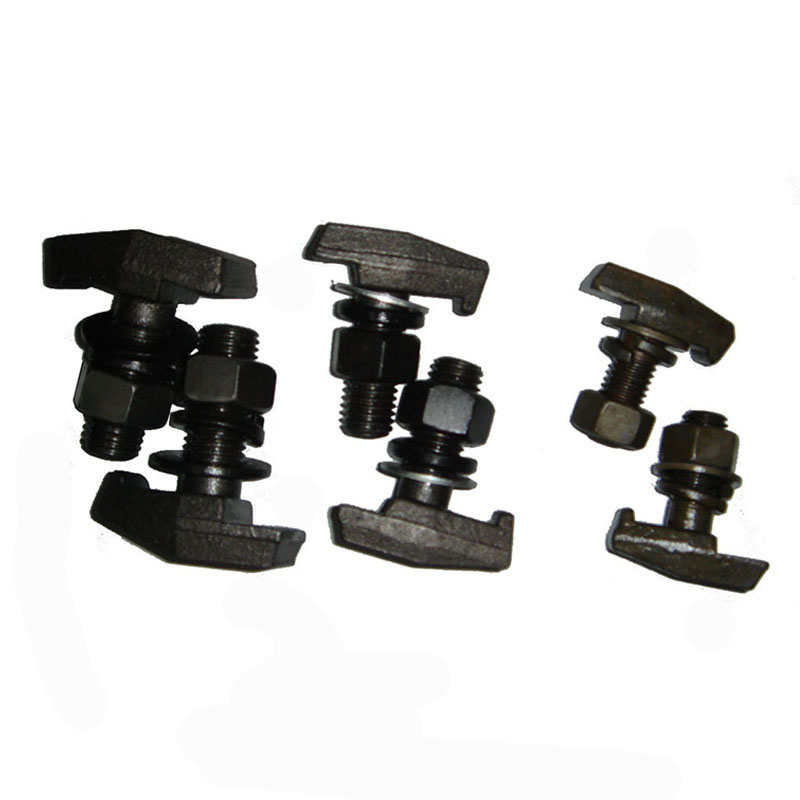

| Keywords: | Elevator Rail Clips | Brand: | NOVA |
| Certificate: | ISO9001:2008,DSA,IAF,UKAS | Color Standard Series: | Black, Gray |
| T1(M10): | T45/A,T50/A | Warranty Period: | One year |
| Dimension: | M10,M12,M14,M16,M18 | Technology1: | Forged Cilp |
| Technology2: | Cast Iron Cilp | Usage: | For Elevator Cabin Or Counterweight |
Supply Ability
| Supply Ability | 10000 Piece/Pieces per Month |
Packaging & delivery
| Packaging Details | Standard export package | Port | SHANGHAI |
| Picture Example: |
Product Detail
Product Description

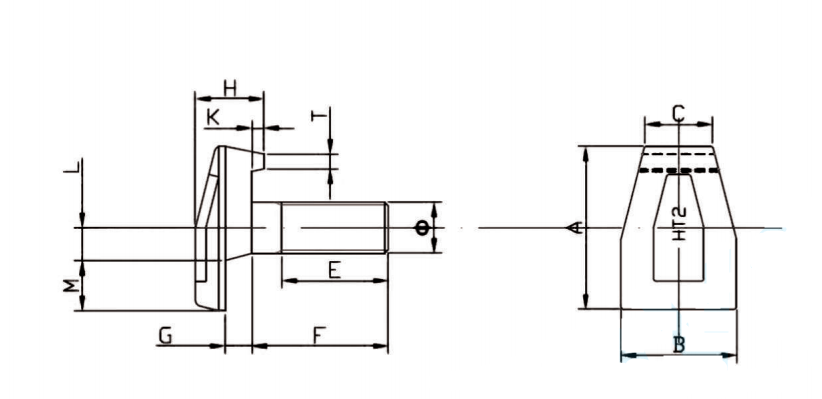

Product Paramenters
Type | Applicable Gudie Rail Model | φ | A | B | C | E | F |
mm | mm | mm | mm | mm | mm | ||
±1.3 | ±1.3 | ±1.3 | ±2.5/0 | ±1.5 | |||
T1 | T45/A,T50/A | M10 | 32 | 22 | 15 | 19 | 25 |
T2 | T70-1/B,T75-3/B,T78/B | M12 | 39 | 26 | 19 | 22 | 30 |
T3 | T82/B,T89/B,T90/B | M14 | 45 | 29 | 21 | 28 | 38 |
T4 | T114/B,T127-1/B,T127-2/B | M16 | 50 | 34 | 22 | 34 | 44 |
T5 | T140-1/B,T140-2/B | M18 | 55 | 37 | 23 | 35 | 46 |
Type | Applicable Gudie Rail Model | φ | A | B | C | E | F |
mm | mm | mm | mm | mm | mm | ||
±1.3 | ±1.3 | ±1.3 | ±2.5/0 | ±1.5 | |||
T1 | T45/A,T50/A | M10 | 32 | 22 | 15 | 19 | 25 |
T2 | T70-1/B,T75-3/B,T78/B | M12 | 39 | 26 | 19 | 22 | 30 |
T3 | T82/B,T89/B,T90/B | M14 | 45 | 29 | 21 | 28 | 38 |
T4 | T114/B,T127-1/B,T127-2/B | M16 | 50 | 34 | 22 | 34 | 44 |
T5 | T140-1/B,T140-2/B | M18 | 55 | 37 | 23 | 35 | 46 |
Related Products
Shaft Components
Elevator Cabin
Door System
Traction System
Safety Components
Electric Components
·Shaft Components includes
Machined /Cold Drawn/ Hollow Guide Rail, Fishplate, Fasteners, Anchor Bolt, Rail Rracket etc.
·Elevator Cabin includes
Complete Elevaotr Cabin, Car Frame, Counterweight Frame and Counterweight Block,Guide Shoes, Rope Attachment etc.
·Door System includes
Mitsubishi, Fermator and Selcom Door Operator and Landing Door, Door Panel, Door Spare Parts,Safety Light Curtain/Photocell etc.
·Safetey Components includes
Safety Gear, Speed Governor, Rope Brake, Oil Buffer and Rubber Buffer etc.
·Traction System includes
Geared/Gearless Traction Machine, Pulley Sheave,Anti-Vibration Pad,Steel Wire Rope etc.
·Electrical Components inclueds
Integrated and Separated Controlling Cabinet,Yaskawa L1000A Inverter, Elevator Display,COP&LOP&HOP, Elevator Button, Flat
Traveling Cable etc.
Machined /Cold Drawn/ Hollow Guide Rail, Fishplate, Fasteners, Anchor Bolt, Rail Rracket etc.
·Elevator Cabin includes
Complete Elevaotr Cabin, Car Frame, Counterweight Frame and Counterweight Block,Guide Shoes, Rope Attachment etc.
·Door System includes
Mitsubishi, Fermator and Selcom Door Operator and Landing Door, Door Panel, Door Spare Parts,Safety Light Curtain/Photocell etc.
·Safetey Components includes
Safety Gear, Speed Governor, Rope Brake, Oil Buffer and Rubber Buffer etc.
·Traction System includes
Geared/Gearless Traction Machine, Pulley Sheave,Anti-Vibration Pad,Steel Wire Rope etc.
·Electrical Components inclueds
Integrated and Separated Controlling Cabinet,Yaskawa L1000A Inverter, Elevator Display,COP&LOP&HOP, Elevator Button, Flat
Traveling Cable etc.
Company Profile
Exhibition
Product Packaging
FAQ
1. Price
Re: please send us inquiry from Alibaba, we will qutoe to you within 24 hours. It’s more convenient and appreciated for us if you provide your company details and your detail inquiry for elevators.
2. Payment term
Re: T/T or L/C at sight.
3. Installation&Maintaining
Re: We will send installation&maintaining manual along with the elevator.
Our sugguestion is to hire a professional local company for installation and future maintaining,
once you need any technical assistant from us, just don't hesitate to contact us by mail or phone.
Technician will be sent to the job site if necessary.
4. Shipping&price term
Re: Both FOB/CIF/CFR price term are ok, we have reliable forwarder helping arrange the shipment for you.
