Horizontal or Vertical Type Elevator Geared Traction Machine
Email: sales@novaelevator.com
Tel: 008613601565806
description1
Zipper closure
1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying
fabric for superior performance.
REGULAR FIT - US standard sizes. An athletic fit that sits close to the
body
for a wide range of motion, designed for optimal performance and all day
comfort.
FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them
in
place during workout
Overview
Essential details
| Warranty: | 1 Year | After-sale Service: | Online technical support, Onsite Installation, Onsite Training, Onsite Inspection |
| Project Solution Capability: | 3D model design, Cross Categories Consolidation | Application: | Home Office |
| Design Style: | Traditional | Place of Origin: | Jiangsu, China |
| Brand Name: | NOVA | Model Number: | NV |
| Product name: | Elevator Geared Traction Machine | Material: | Cast Iron |
| Delivery: | FAST | Certificate: | ISO9001 |
| Package: | Standard Package | Payment: | TT LC DA DP |
| Color: | Customized Color | Speed: | 1.00 - 2.00m/s |
| Size: | Nova Stanard | Elevator Parts: | Traction System |
Supply Ability
| Supply Ability | 100000 Piece/Pieces per Year |
Packaging & delivery
| Packaging Details | Standard Sea Packing | Port | FOB SHANGHAI |
| Picture Example: |
Product Detail
Product Description

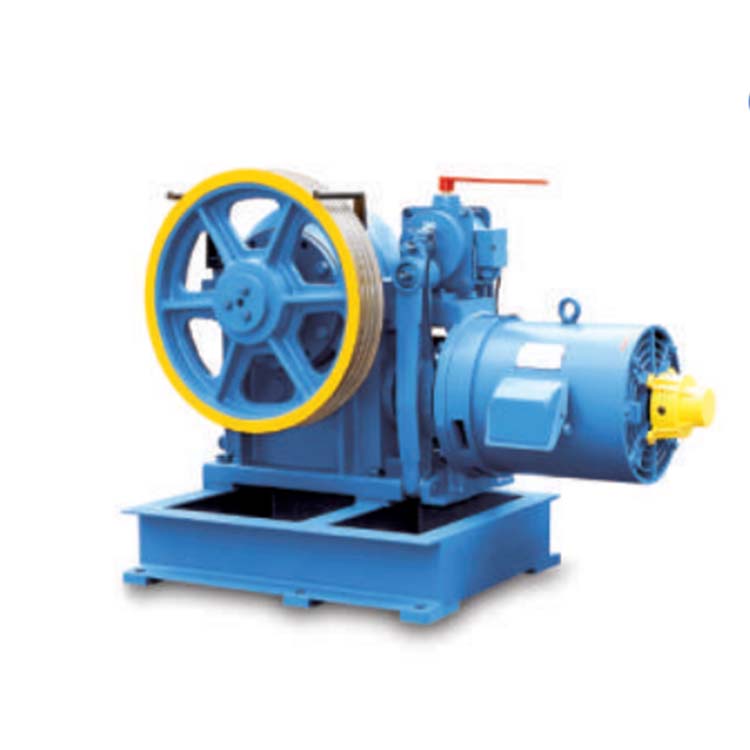

Elevator Geared Traction Machine
General Information for the Elevator Motor
1. Type: VVVF asynchronous and geared
2. Traction Sheave Location: Optional for right or left
3. Load: 2000KG to 2500KG
4. Speed: 0.5m/s to 2.0m/s
5. Application: For new elevator or elevator modernization
Features for Geared VVVF Asynchronous Elevator Traction Machine
1. High efficiency
2. Stable and low noise
3. High static load capacity
Model | NV41G |
Speed(m/s) | 0.5 - 2 |
Weight | 730kg |
Suspension | 1:1 |
Max.Static Load | 7500kg |
Control | VVVF |
Brake | DC110V 2A |
Details Images
Model | Load (kg) | Lift Speed (m/s) | Ratio | Sheave Diam (mm) | Rope Sheave (mm) | Motor Power (kW) | Pole |
NV41G | 800 | 1.6 | 59:2 | Φ620 | 5×Φ13×20 | 12.5 | 4 |
NV41G | 800 | 1.75 | 55:2 | Φ620 | 5×Φ13×20 | 15 | 4 |
NV41G | 800 | 2 | 49:2 | Φ620 | 6×Φ13×20 | 18.5 | 4 |
NV41G | 1000 | 1 | 49:1 | Φ620 | 5×Φ13×20 | 11 | 4 |
NV41G | 1000 | 1.6 | 59:2 | Φ620 | 6×Φ13×20 | 18.5 | 4 |
NV41G | 1000 | 1.75 | 55:2 | Φ620 | 6×Φ13×20 | 18.5 | 4 |
NV41G | 1000 | 2 | 49:2 | Φ620 | 6×Φ13×20 | 18.5 | 4 |
NV41G | 1150 | 1 | 49:1 | Φ620 | 6×Φ13×20 | 15 | 4 |
NV41G | 1150 | 1.6 | 59:2 | Φ620 | 6×Φ13×20 | 18.5 | 4 |
NV41G | 1150 | 1.75 | 55:2 | Φ620 | 6×Φ13×20 | 18.5 | 4 |
NV41G | 1150 | 2 | 49:2 | Φ620 | 6×Φ13×20 | 22 | 4 |
