Hot Saling economic T140-3/B parts rail guide for elevators
Email: sales@novaelevator.com
Tel: 008613601565806
description1
Zipper closure
1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying
fabric for superior performance.
REGULAR FIT - US standard sizes. An athletic fit that sits close to the
body
for a wide range of motion, designed for optimal performance and all day
comfort.
FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them
in
place during workout
Overview
Essential details
| Warranty: | 1 Year | After-sale Service: | Online technical support, Onsite Installation, Onsite Training, Onsite Inspection |
| Project Solution Capability: | graphic design, total solution for projects | Application: | Office Building |
| Design Style: | Contemporary | Place of Origin: | Jiangsu, China |
| Brand Name: | NOVA | Model Number: | Elevator Parts, T70-1/B,T75-3/B,T78/B,T89/B,T90/B,T127-1/B,T127-2/B,T140-1/B,T140-2/B |
| Type: | None | Keyword: | elevators parts |
| Certification: | ISO9001:2008,DAS,IAF,,UKAS | Color standard series: | Black, Gray |
| Warranty period: | One year | Length: | 5m, 2.5m |
| size: | 9mm, 10mm, 16mm | Speed: | 0.4-4m/s |
| Usage: | For Elevator Cabin or Counterwight | OEM: | Marazzi,Monteferro,Savra |
Supply Ability
| Supply Ability | 10000 Ton/Tons per Year |
Packaging & delivery
| Packaging Details | Standard export package | Port | FOB SHANGHAI |
| Picture Example: |
Product Detail

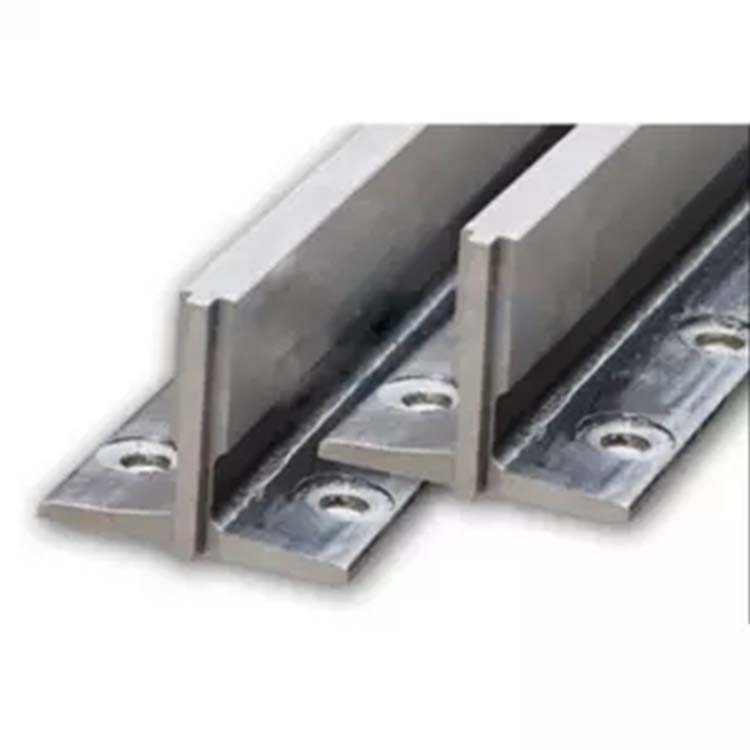

Product Description
Type:

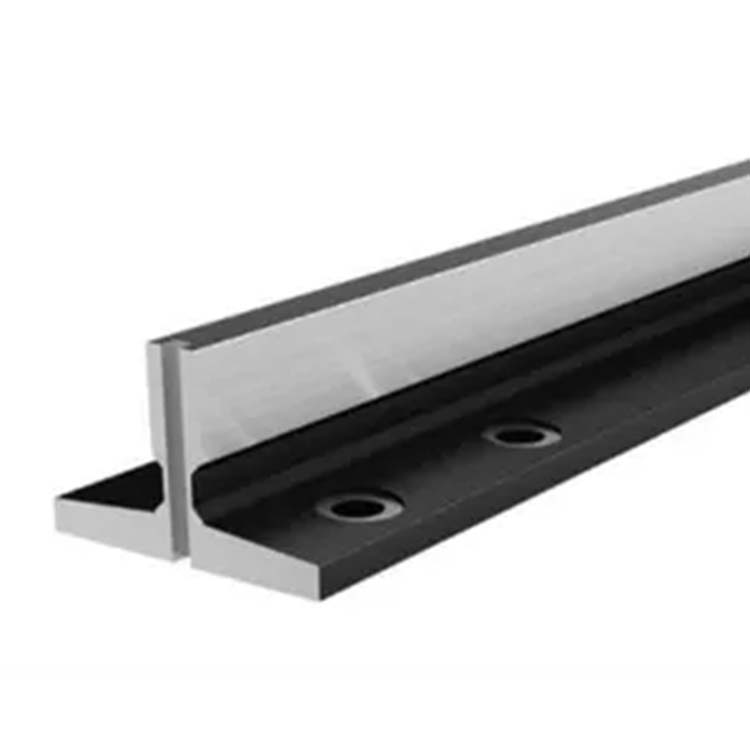

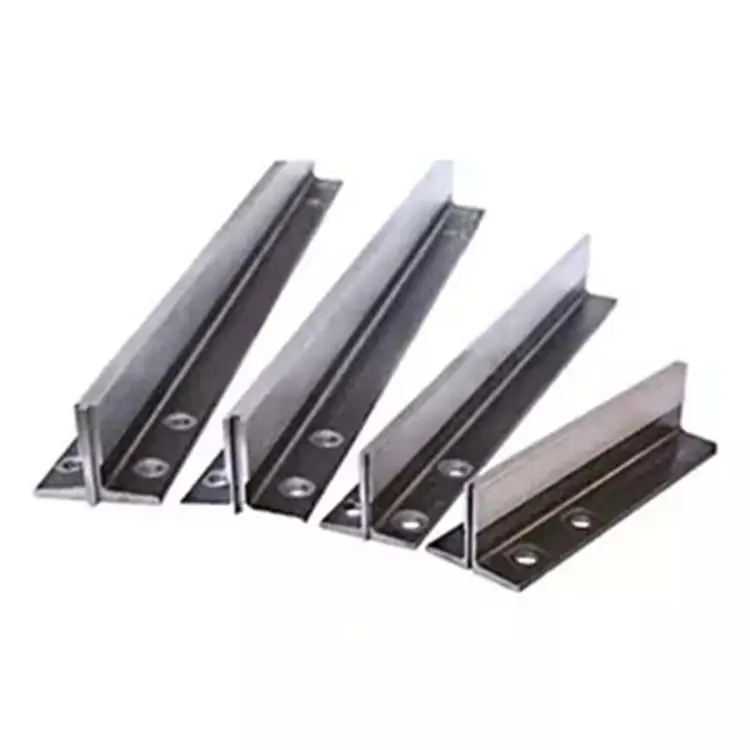

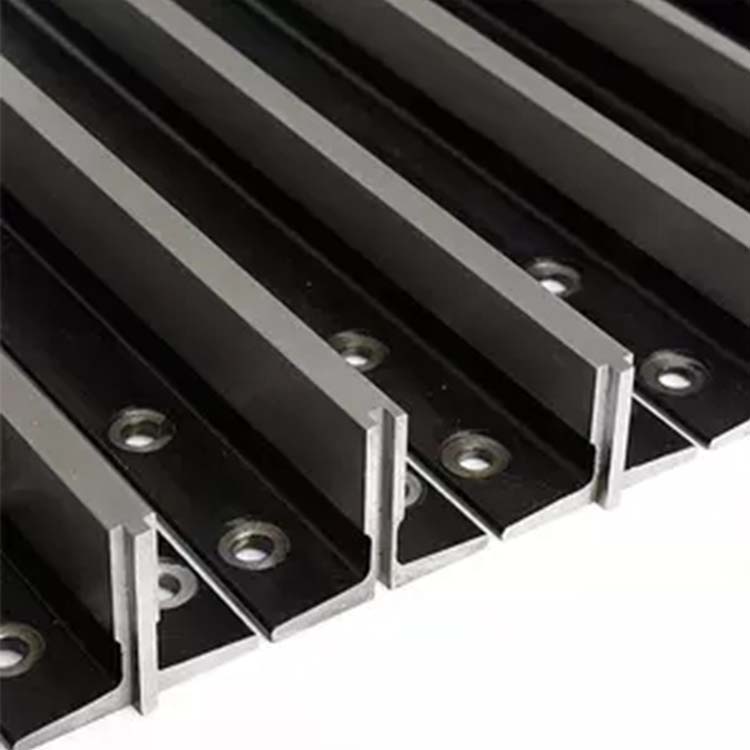

1. Machined Elevator Guide Rail
2. Cold Drawn Elevator Guide Rail

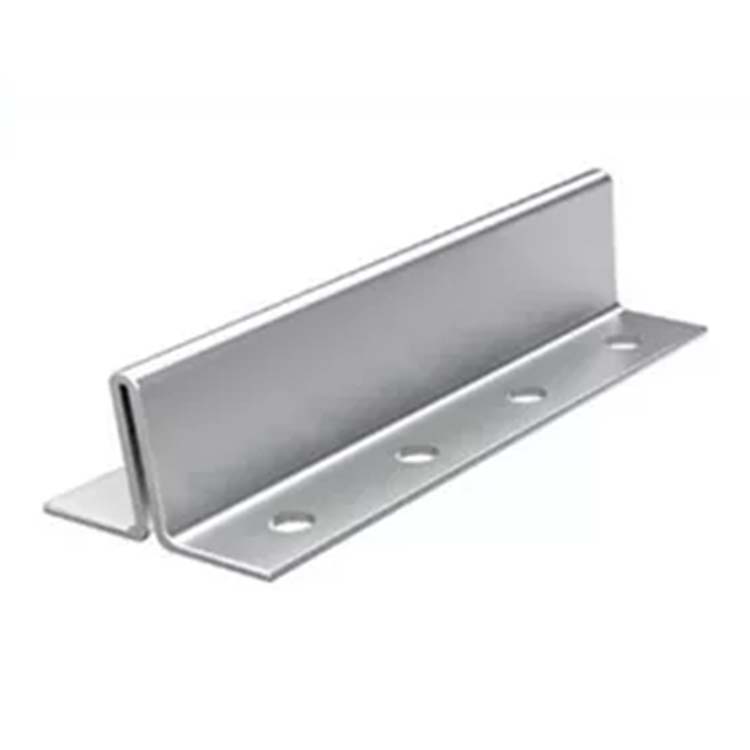

3. Hollow Elevator Guide Rail
4. Customized Elevator Guide Rail
5. Cold drawn elevator guide rail fishplates, machined elevator guide rail fishplates, special thicness fishplates, T section fishplates, forged clips, sliding clamps, sliding clips, T-clips
Standard: ISO 7465.
Model: T45A, T50A, T70B, T75B, T78B, T82B, T89B, T90B, T114B, T127B, TK3, TK3A, TK5, TK5A.

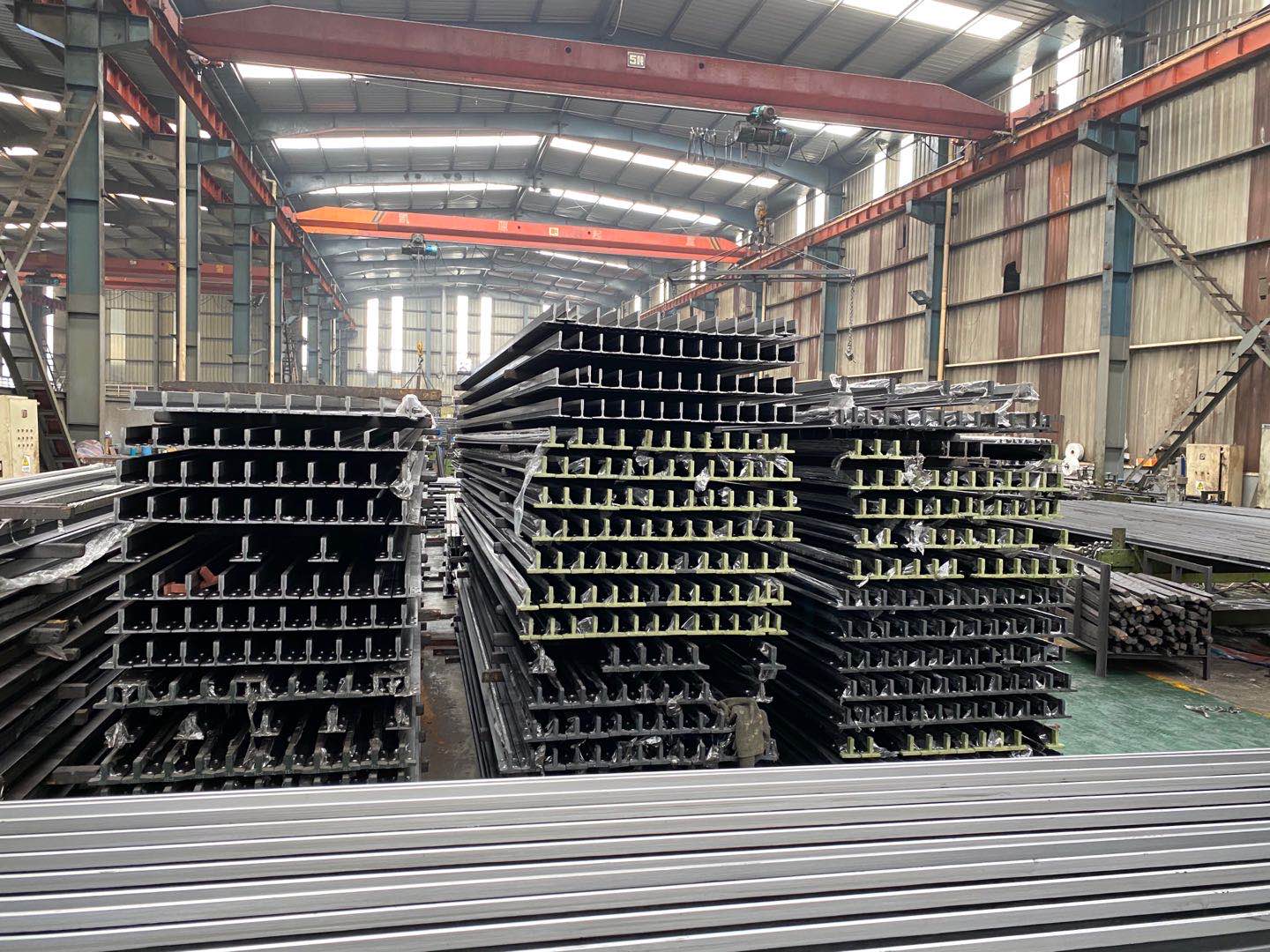

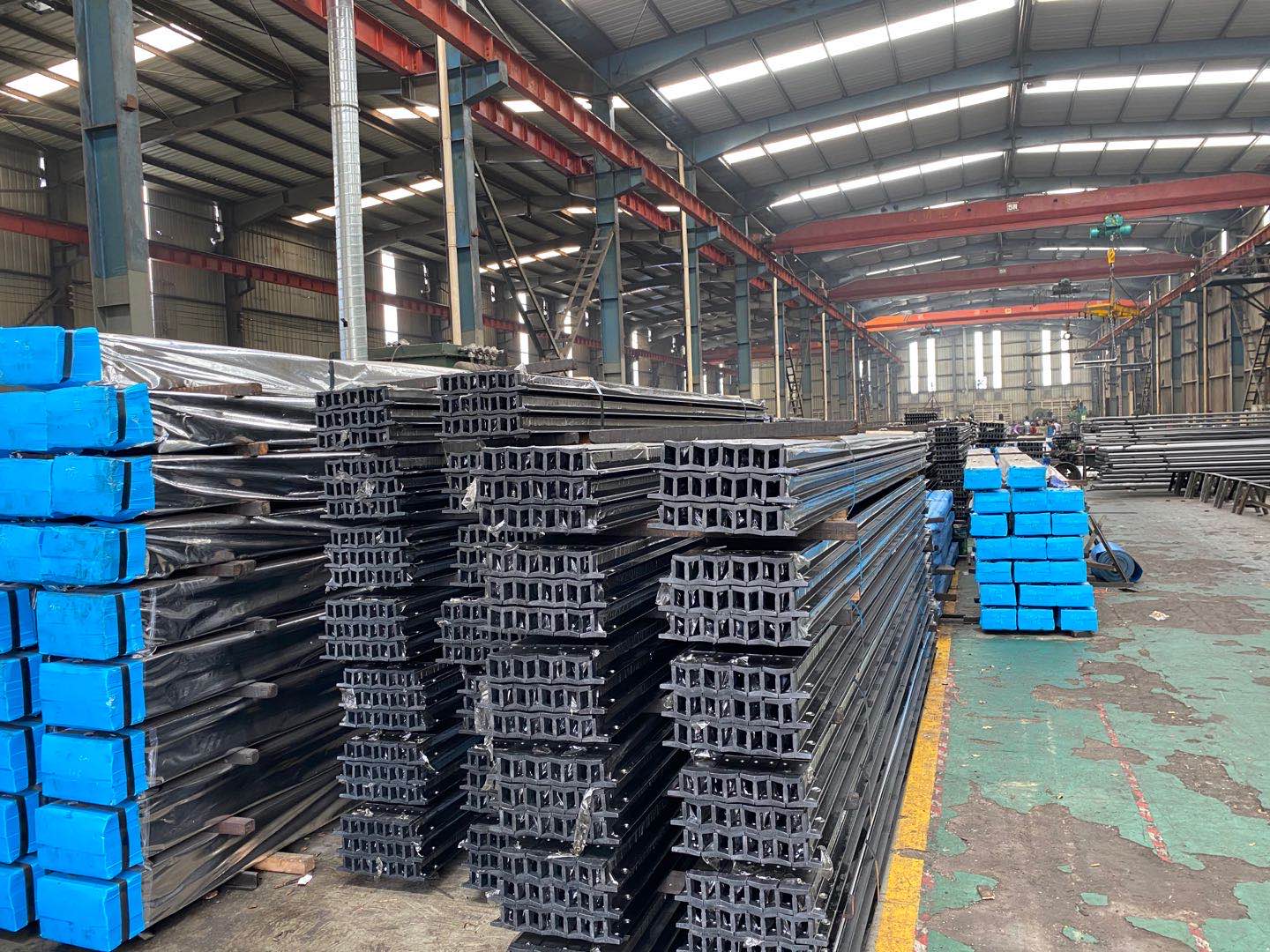

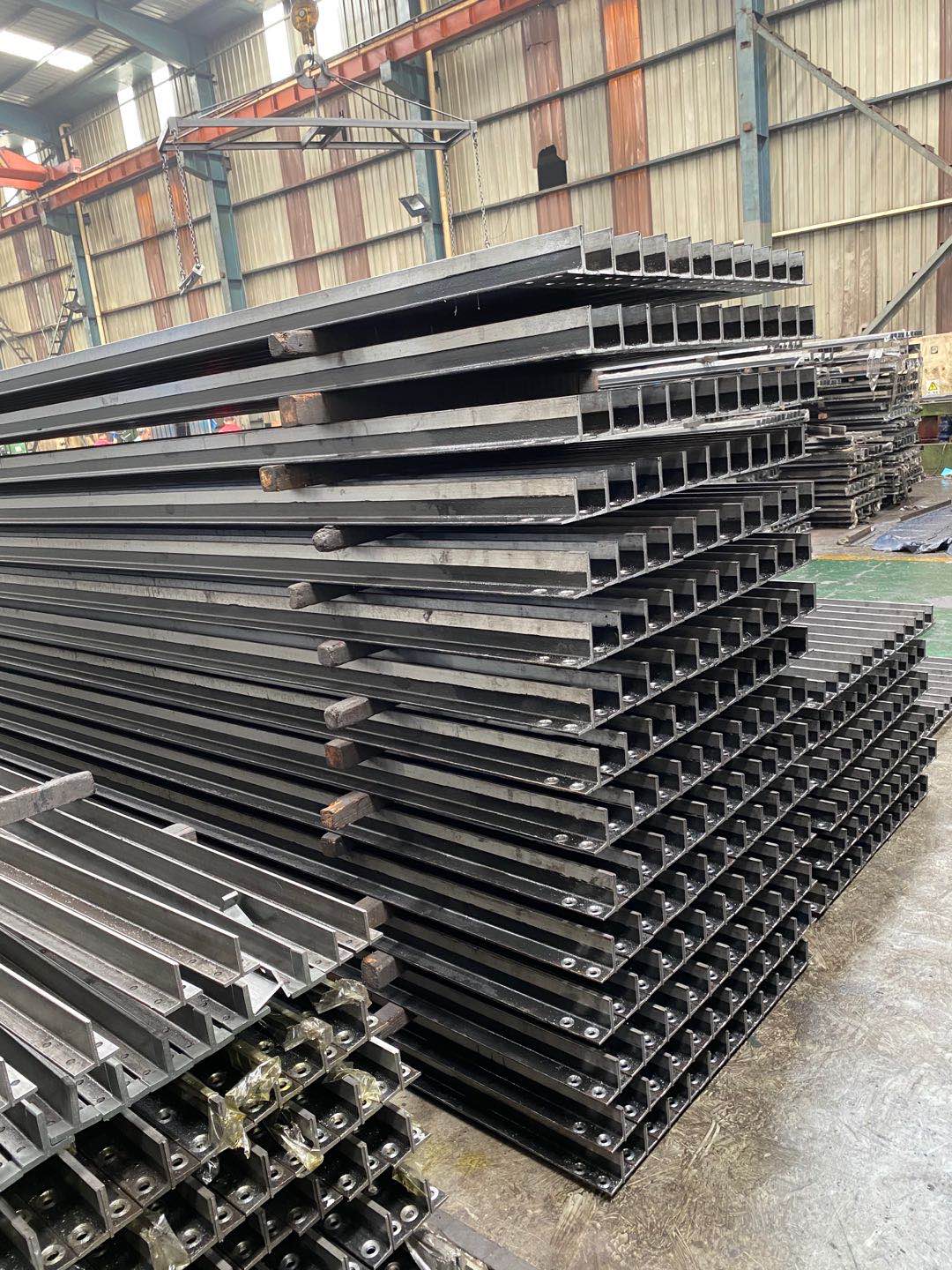

Packing: Our guide rails are packed in bundles with protective sheathes protecting both ends, each bundle repacked in blue plastic sheeting. We can also pack as per your request.

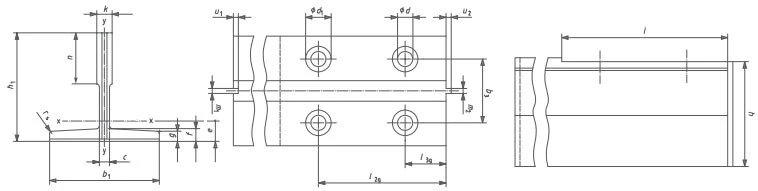

Product Paramenters
Model | Guide Rail Size | Fishplate Size | Clip | Screw |
T45/A | 45mm*45mm*5mm | 160*50*8mm | 8K | M8*25 |
T50/A | 50mm*50mm*5mm | 200*50*8mm | 8K | M8*25 |
T70-1/B | 70mm*65mm*9mm | 250*70*10mm | 8K | M12*35 |
T75-3/B | 75mm*62mm*10mm | 240*75*10mm | 8K | M12*35 |
T78/B | 78mm*56mm*10mm | 240*75*10mm | 8K | M12*35 |
T82/B | 82.5mm*68.25mm*9mm | 216*80*10mm | 13K | M12*35 |
T89/B | 89mm*62mm*16mm | 280*90*13mm | 13K | M12*40 |
T90/B | 90mm*75mm*16mm | 280*90*13mm | 13K | M12*40 |
T114/B | 114mm*89mm*16mm | 300*115*18mm | 18K | M16*50 |
T127-2/B | 127mm*89mm*16mm | 300*130*18mm | 24K | M16*55 |
TK3 | 75mm*55mm*10mm | 220*72*2.5mm | 3K | M8*25 |
TK3A | 78mm*60mm*16.4mm | 200*78*4mm | 3K | M8*25 |
TK5 | 87mm*60mm*16.4mm | 350*87*4mm | 5K | M10*25 |
TK5A | 78mm*60mm*16.4mm | 200*78*4mm | 5K | M10*25 |
Hot Products
Elevator Guide Rail
Elevator Door Operator
Elevator Speed Governor
Elevator Cabin
Elevator Controller
Elevator Traction Machine
Company Profile
Exhibition
Product Packaging
FAQ
1. Price
Re: please send us inquiry from Alibaba, we will qutoe to you within 24 hours. It’s more convenient and appreciated for us if you provide your company details and your detail inquiry for elevators.
2. Payment term
Re: T/T or L/C at sight.
3. Installation&Maintaining
Re: We will send installation&maintaining manual along with the elevator.
Our sugguestion is to hire a professional local company for installation and future maintaining,
once you need any technical assistant from us, just don't hesitate to contact us by mail or phone.
Technician will be sent to the job site if necessary.
4. Shipping&price term
Re: Both FOB/CIF/CFR price term are ok, we have reliable forwarder helping arrange the shipment for you.
