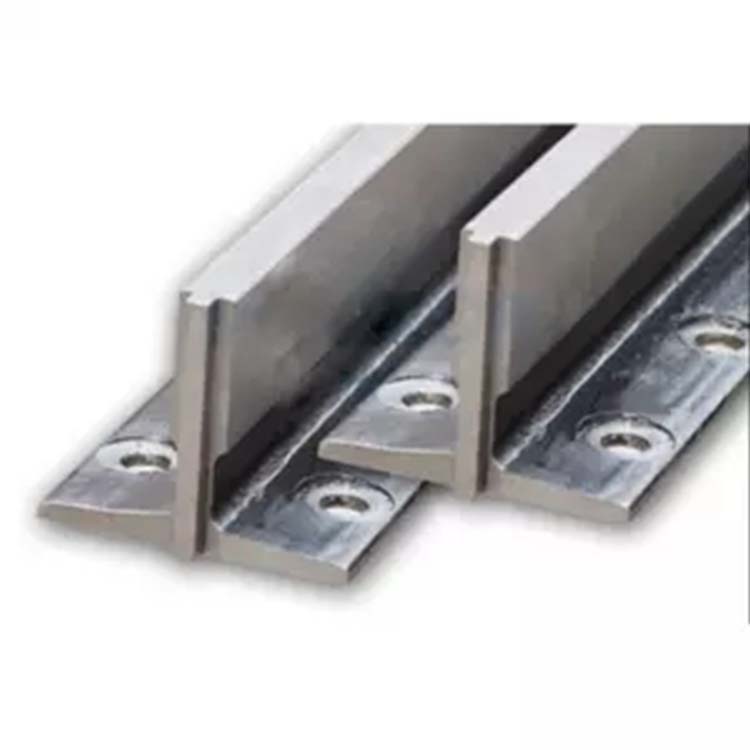

Precise design elevator parts cold drawn elevator guide rail for sale

sales@novaelevator.com

Tel: 008613601565806

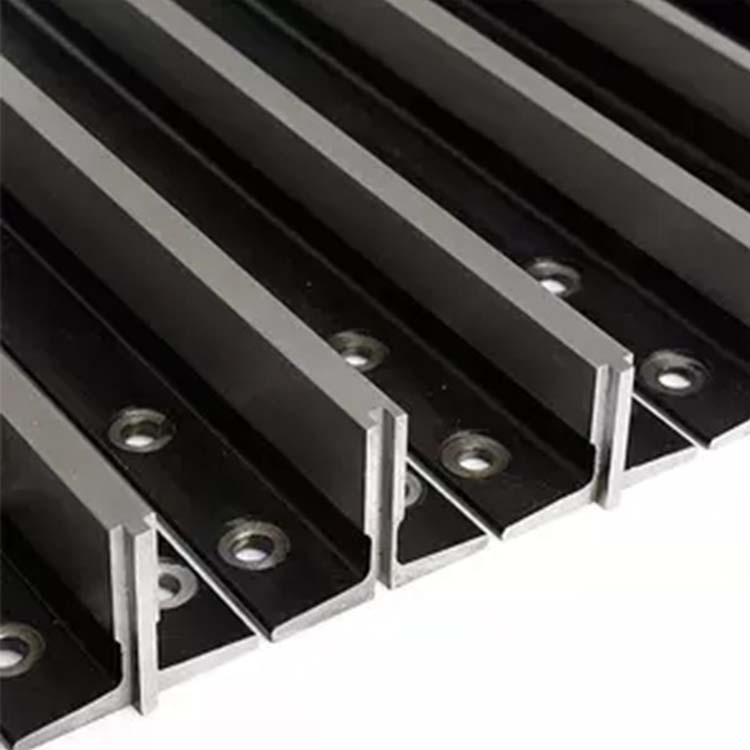

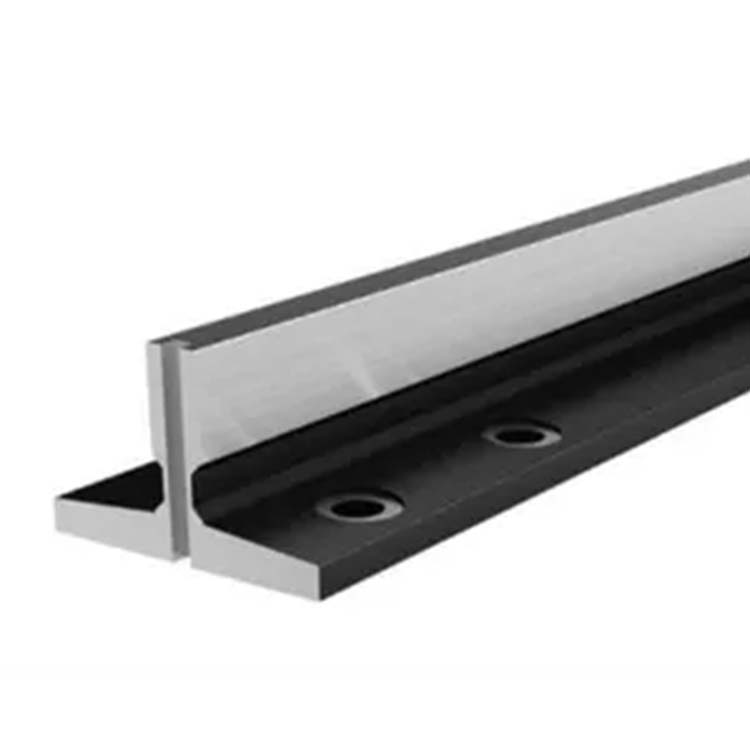

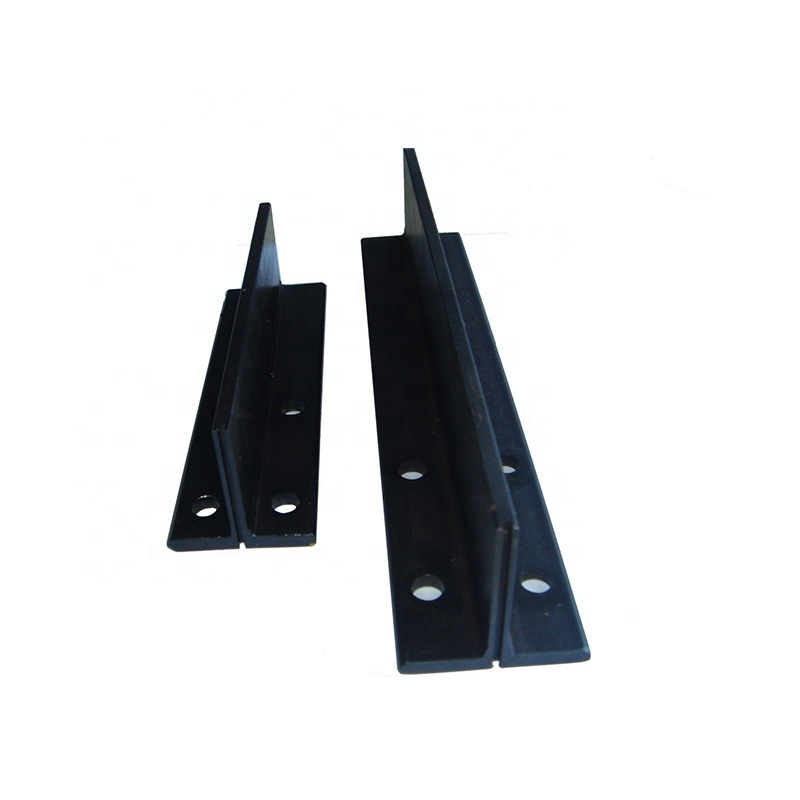

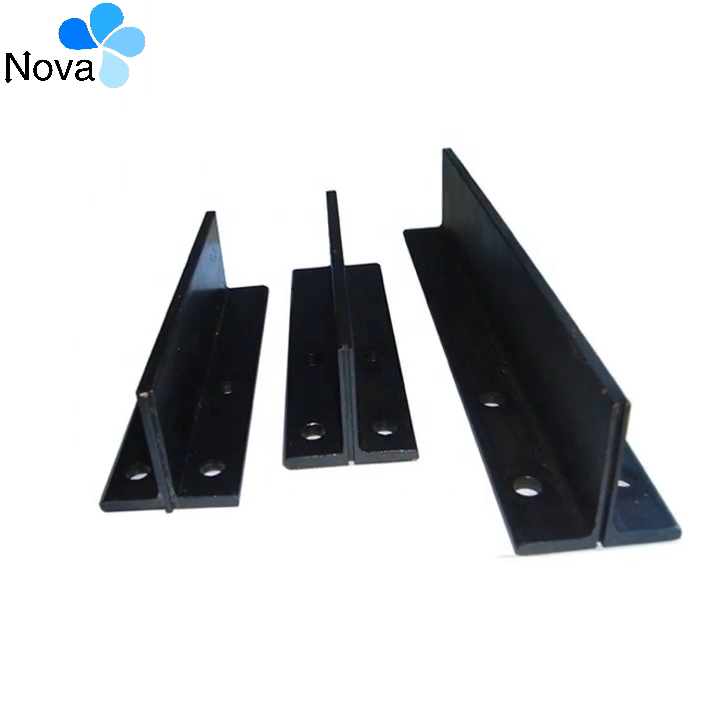

Precise design elevator parts cold drawn elevator guide rail for sale
description1
Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout
Overview
Essential details
Warranty: 1 YearAfter-sale Service: Online technical support, Onsite Installation, Onsite Training, Onsite Inspection
Project Solution Capability: graphic design, total solution for projectsApplication: Office Building
Design Style: ContemporaryPlace of Origin: Jiangsu, China
Brand Name: NovaModel Number: Elevator Parts, T45/A,T50/A,T70-1/A
Type: None, cold drawnProduct name: Elevator guide rail
Certification: ISO9001:2008,DAS,IAF,UKASColor standard series: Black, Gray
Warranty period: One yearLength: 5m, 2.5m
size: 9mm, 10mm, 16mmSpeed: 0.4-4m/s
Usage: For Elevator Cabin or Counterwight
Supply Ability
Supply Ability 50000 Piece/Pieces per Year
Packaging & delivery
Packaging Details Standard export packagePort FOB SHANGHAI
Picture Example:
Video Description
Product Detail
Product Description

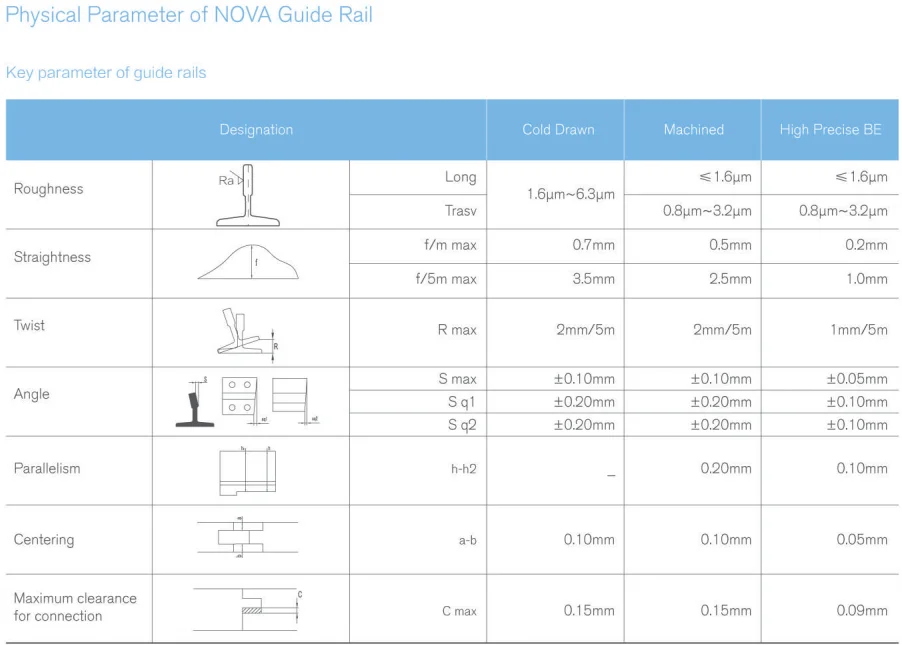

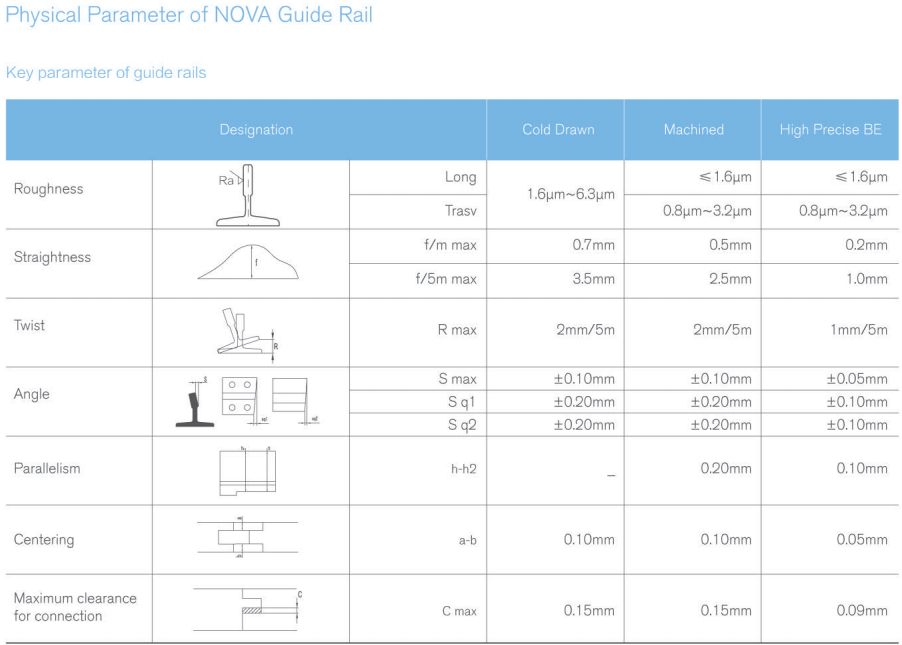

Product Paramenters
Type
b1
h1
h
k
n
c
f
g
rs
Tolerances(Standard)
±1.5
±0.75
±0.10
+0.1/0
+3/0
—
±0.75
±0.75
—
T70-1/B
70
65
64
9
34
6
8
6
1.5
T75-3/B
75
62
61
10
30
8
9
7
3
T78/B
78
56
55
10
26
7
8.5
6
2.5
T82/B
82
68.25
66.6
9
26
7.5
8.25
6
3
T89/B
89
62
61
16
34
10
11.1
7.9
3
T90/B
90
75
74
16
42
10
10
8
4
T114/B
114
89
88
16
38
9.5
11
8
4
T127-1/B
127
89
88
16
45
10
11
8
4
T127-2/B
127
89
88
16
51
10
15.9
12.7
5
T140-1/B
140
108
107
19
51
12.7
15.9
12.7
5
T140-2/B
140
102
101
28.6
51
17.5
17.5
14.5
5
T140-3/B
140
127
126
31.75
57
19
25.4
17.5
5
Type
m1
m2
u1
u2
d
d1
b3
l2g
l3g
Tolerances(Standard)
+0.06/0
0/-0.06
±0.10
±0.10
—
—
±0.2
±0.2
±0.2
T70-1/B
3.00
2.97
3.50
3.00
13
26
42
105
25
T75-3/B
3.00
2.97
3.50
3.00
13
26
42
105
30
T78/B
3.00
2.97
3.50
3.00
13
26
42
105
38
T82/B
3.00
2.97
3.50
3.00
13
26
50.8
81
27
T89/B
6.40
6.37
7.14
6.35
13
26
57.2
114.3
38.1
T90/B
6.40
6.37
7.14
6.35
13
26
57.2
114.3
38.1
T114/B
6.40
6.37
7.14
6.35
17
33
70
114.3
38.1
T127-1/B
6.40
6.37
7.14
6.35
17
33
79.4
114.3
38.1
T127-2/B
6.40
6.37
7.14
6.35
17
33
79.4
114.3
38.1
T140-1/B
6.40
6.37
7.14
6.35
21
40
92.1
152.4
31.8
T140-2/B
6.40
6.37
7.14
6.35
21
40
92.1
152.4
31.8
T140-3/B
6.40
6.37
7.14
6.35
21
40
92.1
152.4
31.8
Type(BE-class)
b1
h1
k
n
c
f
g
rs
m1
Tolerances(High Precise)
±1.5
±0.75
+0.05/0
+3/0
_
±0.75
±0.75
_
+0.03/0
T89/BE
89
62
16
34
10
11.1
7.9
3
6.40
T90/BE
90
75
16
42
10
10
8
4
6.40
T114/BE
114
89
16
38
9.5
11
8
4
6.40
T127-1/BE
127
89
16
45
10
11
8
4
6.40
T127-2/BE
127
89
16
51
10
15.9
12.7
5
6.40
T140-1/BE
140
108
19
51
12.7
15.9
12.7
5
6.40
T140-2/BE
140
102
28.6
51
17.5
17.5
14.5
5
6.40
T140-3/BE
140
127
31.75
57
19
25.4
17.5
5
6.40
Type
m2
u1
u2
d
d1
b3
l2g
l3g
l              h
Tolerances(High Precise)
0/-0.03
±0.10
±0.10
±0.2
±0.2
±0.2
+3/0   +0.05
T89/BE
6.37
7.14
6.35
13
26
57.2
114.3
38.1
156       61
T90/BE
6.37
7.14
6.35
13
26
57.2
114.3
38.1
156       74
T114/BE
6.37
7.14
6.35
17
33
70
114.3
38.1
156       88
T127-1/BE
6.37
7.14
6.35
17
33
79.4
114.3
38.1
156       88
T127-2/BE
6.37
7.14
6.35
17
33
79.4
114.3
38.1
156       88
T140-1/BE
6.37
7.14
6.35
21
40
92.1
152.4
31.8
193      107
T140-2/BE
6.37
7.14
6.35
21
40
92.1
152.4
31.8
193      101
T140-3/BE
6.37
7.14
6.35
21
40
92.1
152.4
31.8
193      126
Related Products

Shaft Components

Elevator Cabin

Door System

Traction System

Safety Components

Electric Components

·Shaft Components includes

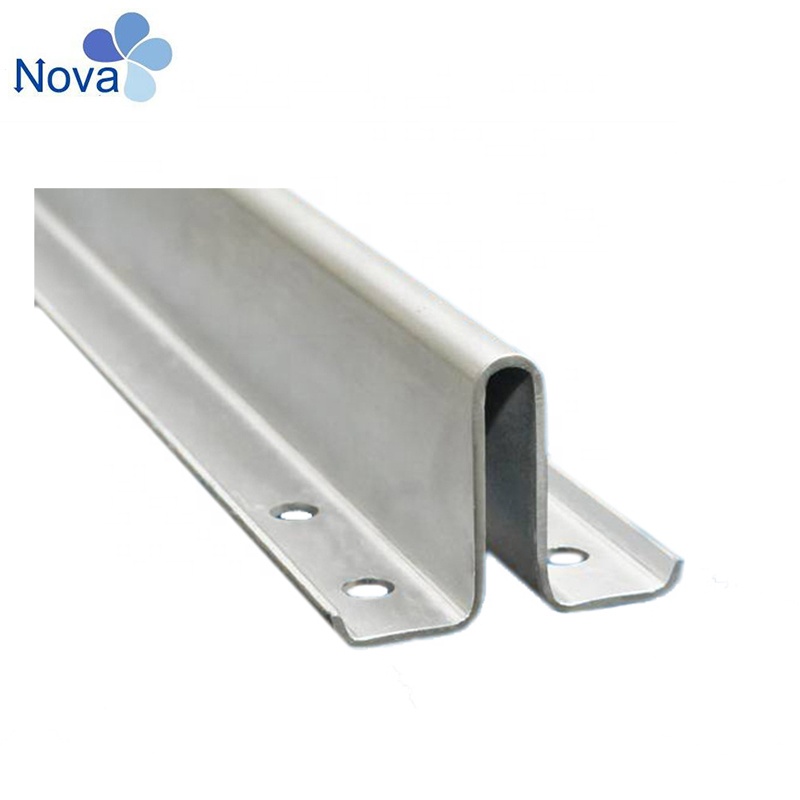

Machined /Cold Drawn/ Hollow Guide Rail, Fishplate, Fasteners, Anchor Bolt, Rail Rracket etc.
