Overview
Essential details
| Warranty: | 1 Year | After-sale Service: | Online technical support, Onsite Installation, Onsite Training, Onsite Inspection |
| Project Solution Capability: | 3D model design, Cross Categories Consolidation | Application: | Hotel |
| Design Style: | Modern | Place of Origin: | Jiangsu, China |
| Brand Name: | NOVA | Model Number: | T45/A |

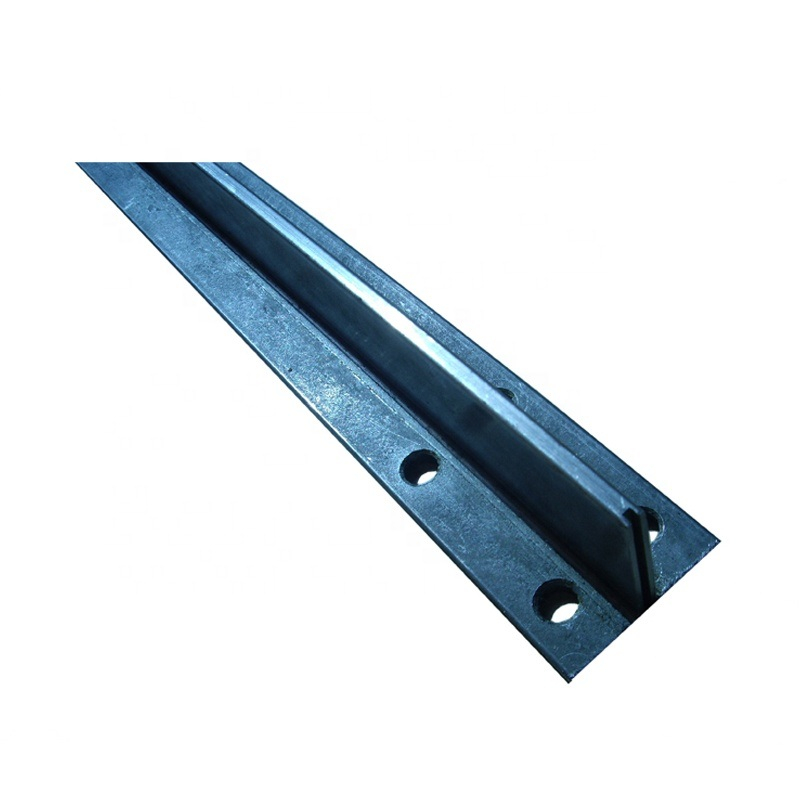

| Type: | cold drawn guide rail | Product name: | Elevator Guide rail |
| Brand: | NOVA | Transportation: | Sea |
| Keywords: | T45/A COLD DRAWN GUIDE RAIL | Payment: | TT LC |
| Delivery Time: | 7~10 Working Days | length: | 5m |
| Package: | Wooden Box | Guarantee: | 1 year |
| Size: | 45*45*5mm |
Supply Ability
| Supply Ability | 100000 Piece/Pieces per Year |
Packaging & delivery
| Packaging Details | Standard Sea Packing | Port | FOB SHANGHAI |
| Picture Example: |
Video Description

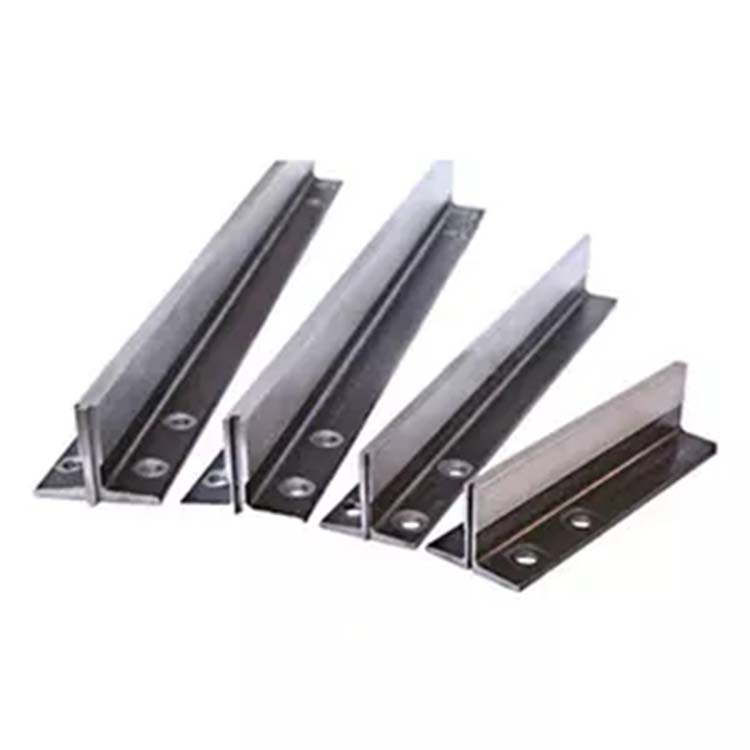

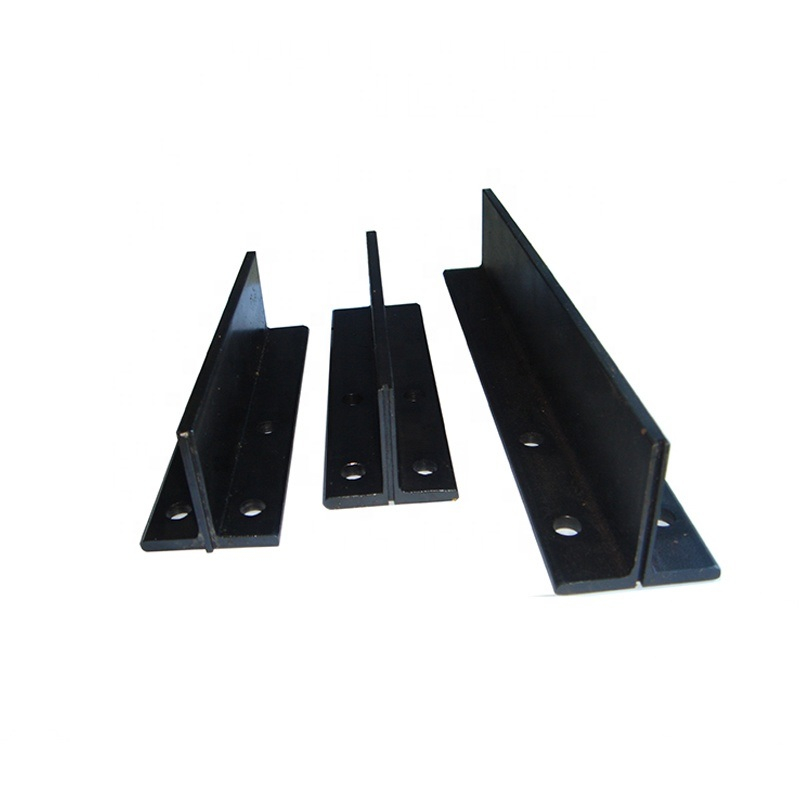

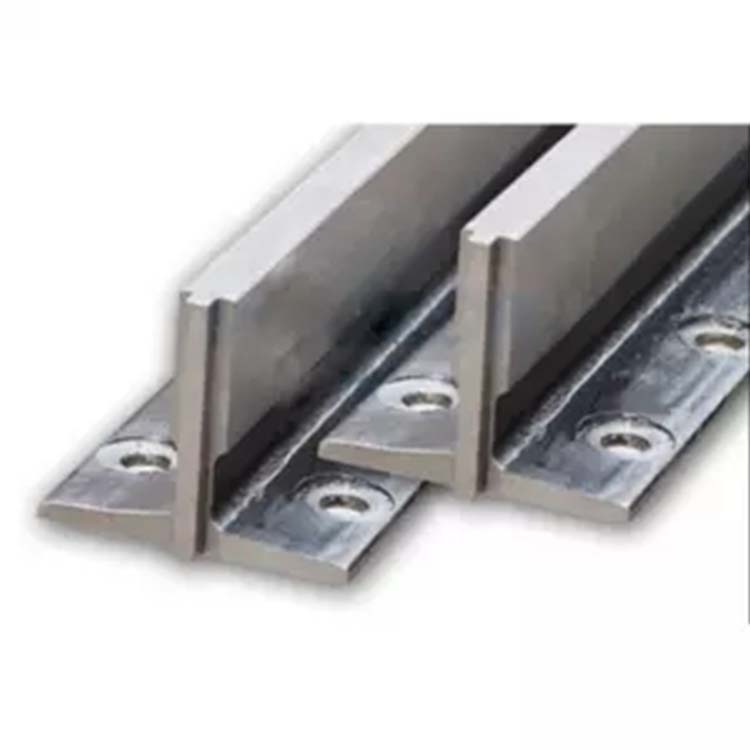

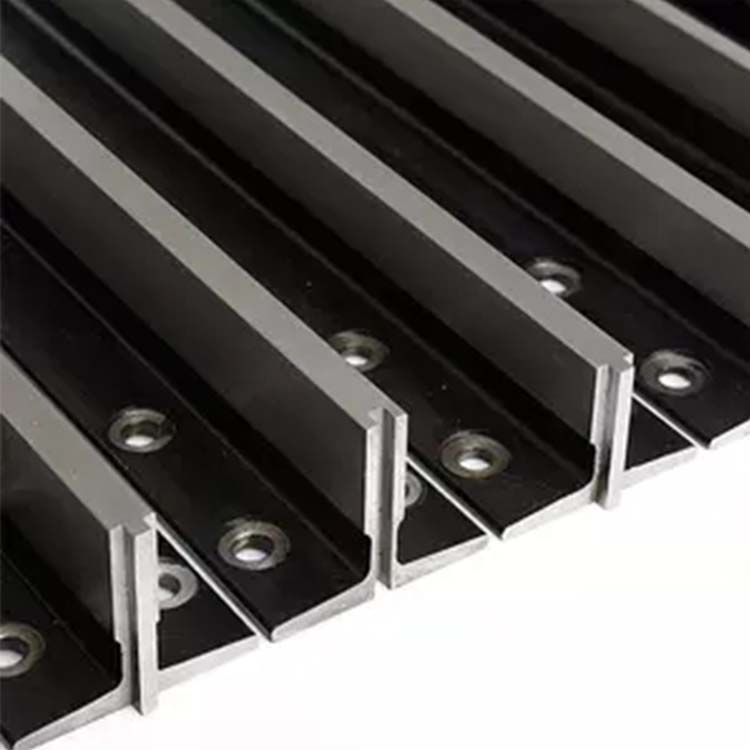

Product Detail
Type:
1. Machined Elevator Guide Rail
2. Cold Drawn Elevator Guide Rail
3. Hollow Elevator Guide Rail
4. Customized Elevator Guide Rail

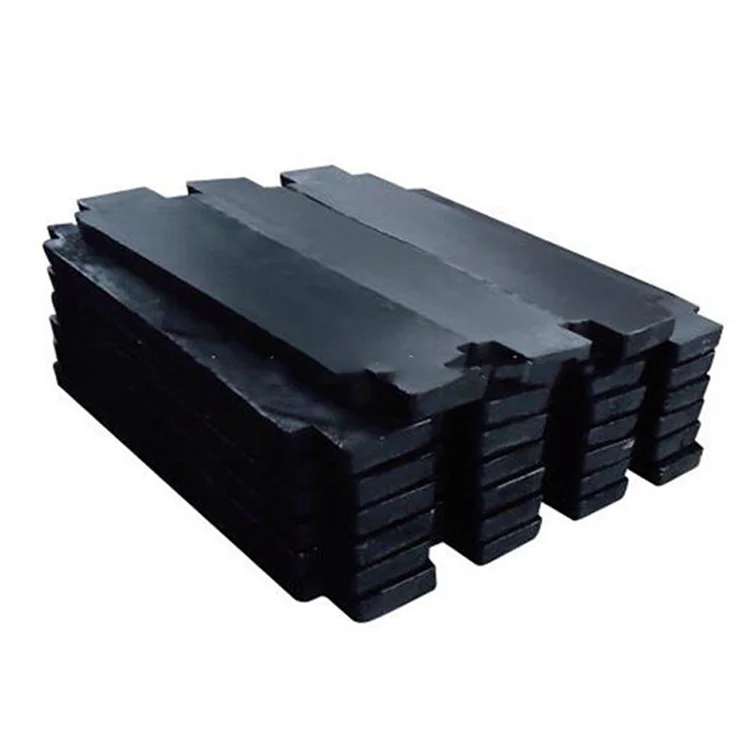

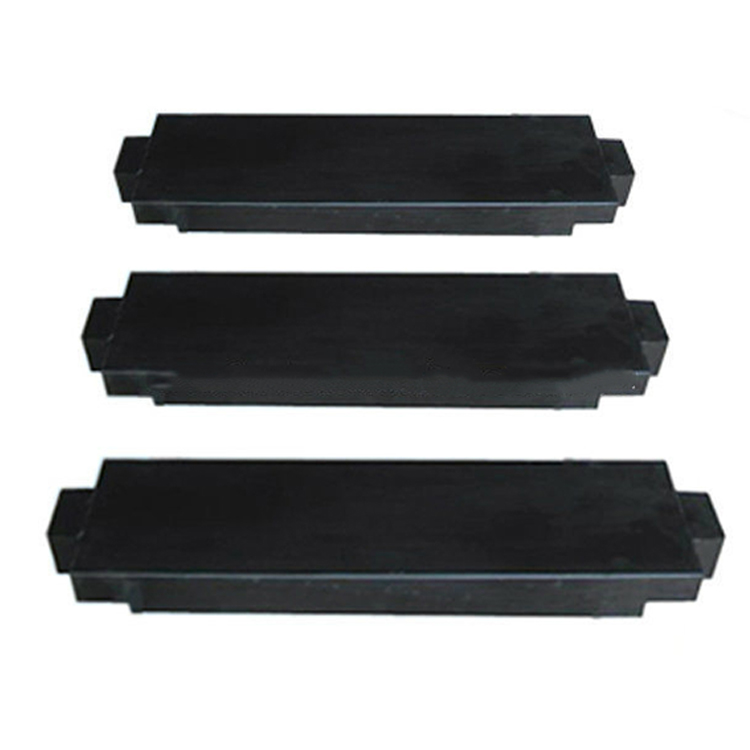

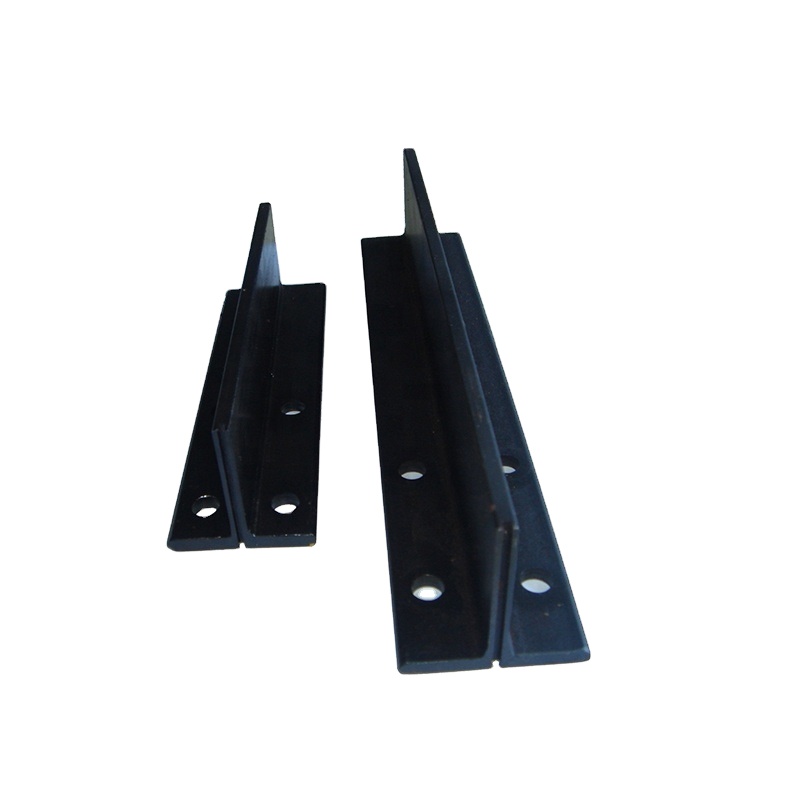

5. Cold drawn elevator guide rail fishplates, machined elevator guide rail fishplates, special thicness fishplates, T section fishplates, forged clips, sliding clamps, sliding clips, T-clips
Standard: ISO 7465.
Model: T45A, T50A, T70B, T75B, T78B, T82B, T89B, T90B, T114B, T127B, TK3, TK3A, TK5, TK5A.
Packing: Our guide rails are packed in bundles with protective sheathes protecting both ends, each bundle repacked in blue plastic sheeting. We can also pack as per your request.
Model | Guide Rail Size | Fishplate Size | Clip | Screw |
T45/A | 45mm*45mm*5mm | 160*50*8mm | 8K | M8*25 |
T50/A | 50mm*50mm*5mm | 200*50*8mm | 8K | M8*25 |
T70-1/B | 70mm*65mm*9mm | 250*70*10mm | 8K | M12*35 |
T75-3/B | 75mm*62mm*10mm | 240*75*10mm | 8K | M12*35 |
T78/B | 78mm*56mm*10mm | 240*75*10mm | 8K | M12*35 |
T82/B | 82.5mm*68.25mm*9mm | 216*80*10mm | 13K | M12*35 |
T89/B | 89mm*62mm*16mm | 280*90*13mm | 13K | M12*40 |
T90/B | 90mm*75mm*16mm | 280*90*13mm | 13K | M12*40 |
T114/B | 114mm*89mm*16mm | 300*115*18mm | 18K | M16*50 |
T127-2/B | 127mm*89mm*16mm | 300*130*18mm | 24K | M16*55 |
TK3 | 75mm*55mm*10mm | 220*72*2.5mm | 3K | M8*25 |
TK3A | 78mm*60mm*16.4mm | 200*78*4mm | 3K | M8*25 |
TK5 | 87mm*60mm*16.4mm | 350*87*4mm | 5K | M10*25 |
TK5A | 78mm*60mm*16.4mm | 200*78*4mm | 5K | M10*25 |
Permanent magnet synchronous toothless traction machine
The new generation control system is combined with the elevator control with drive.
It brings compact structure,smaller
volume,more convenient operation and more favorable cost performance
View more
View more
Elevator Speed Governor
Elevator Cabin
Elevator Controller
Elevator Traction Machine
Q1:Are you a trading company or a manufacturer?
1:We are manufacturer.We have our own factory and trading company.Q2:How can I order?
A2:Please send enquiry from Alibaba,Click "Contact Now".Please let me know the specification of elevator.
Q3:Can you cheaper?Another company lower than you.
A4:The quality of the product determines the price. Just like the BMW and other cars, We use high quality materials and advanced
technology.We provide you with quality products and best services. Please know that the value for money is good.
Q4:Can I customize the elevator?
A4:Of course, please tell me your requirements and parameters or drawings, we can also design drawings for you to confirm.
Q5:How about warranty?
A5:Every unit we can follow by our GPS system,if any problem we can tell you how to fix it
Q6:Payment and Price terms?
A6:Mainly according to your requirements, but we recommend using L/C at sight or 30% T/T In Advance,balance before shipping.
Q7:What is your delivery time?
A7:Our delivery time is based on the quantity of your order.
