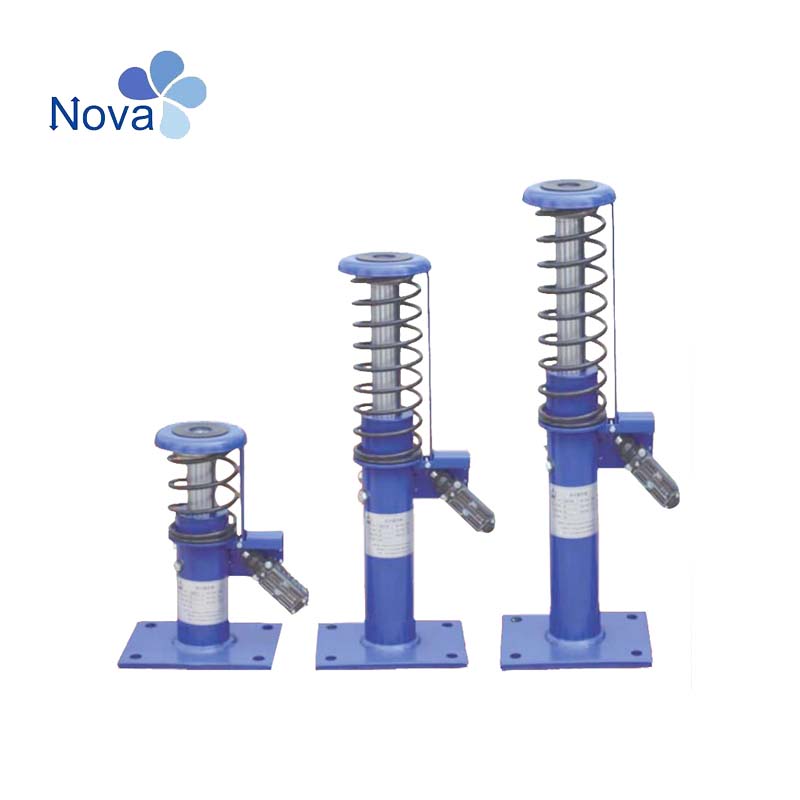

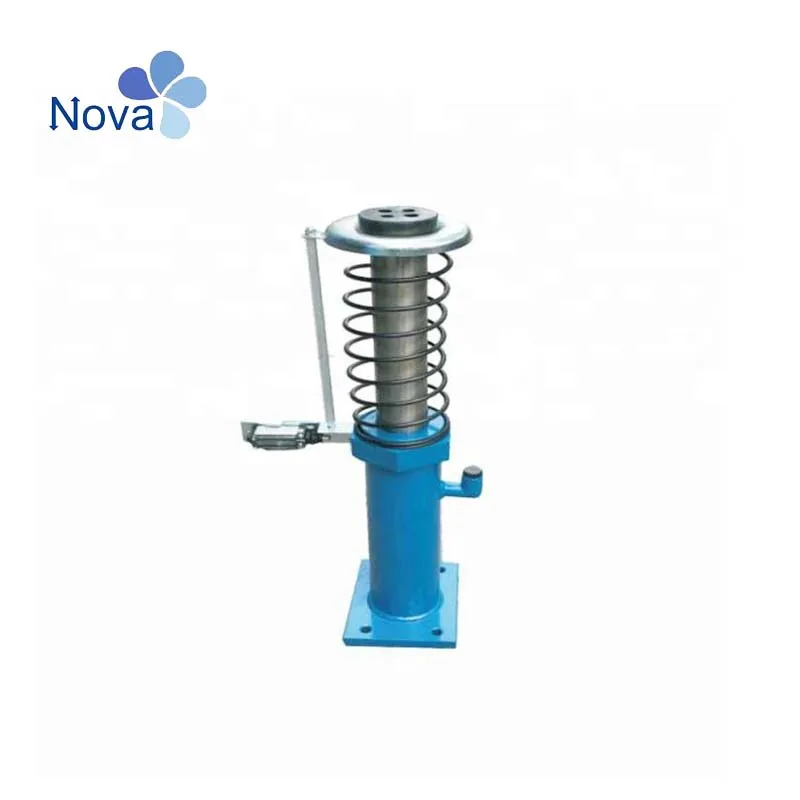

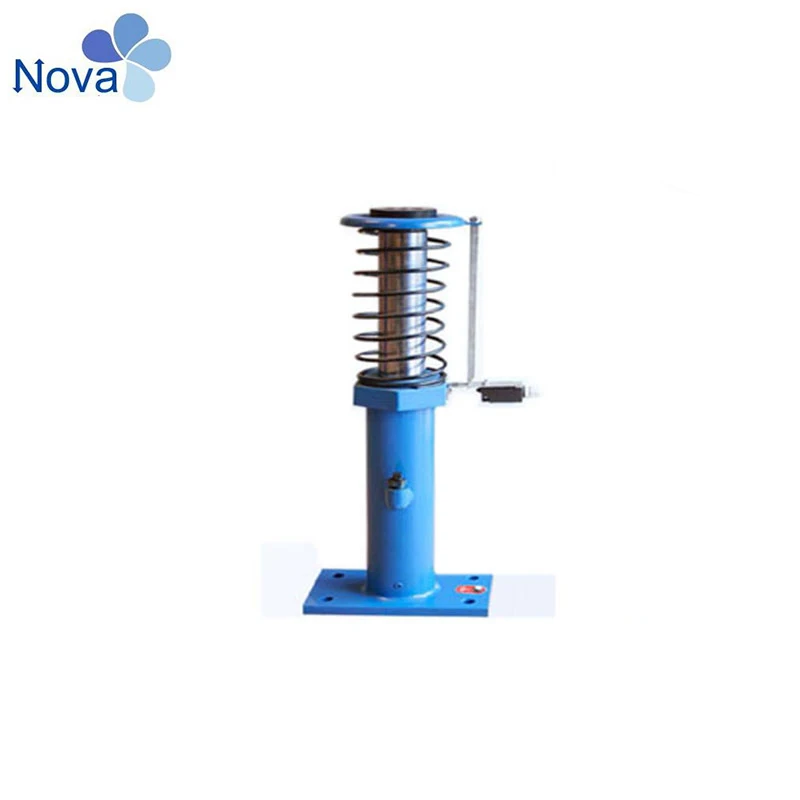

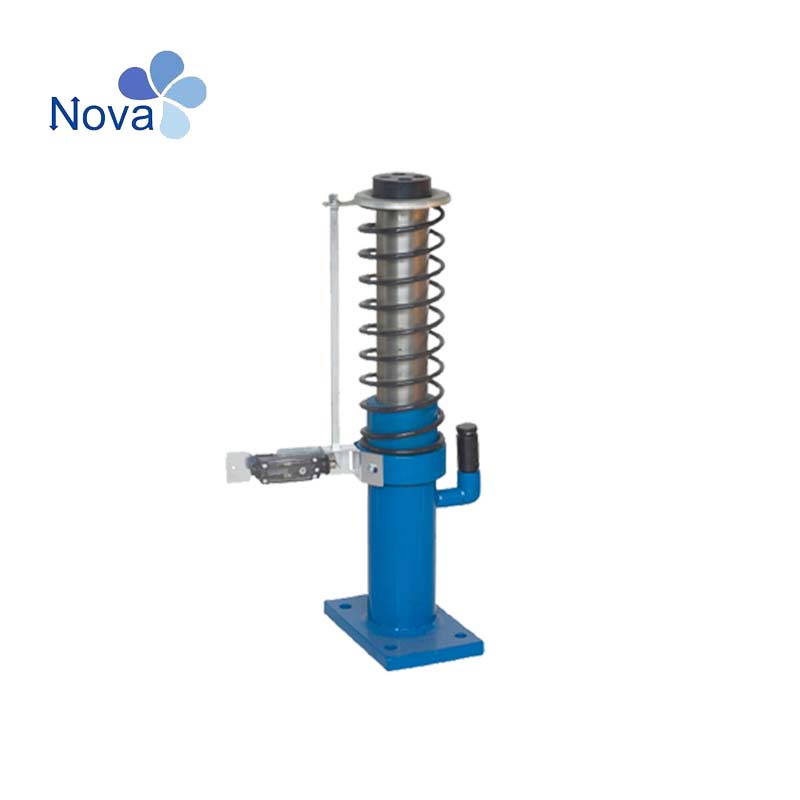

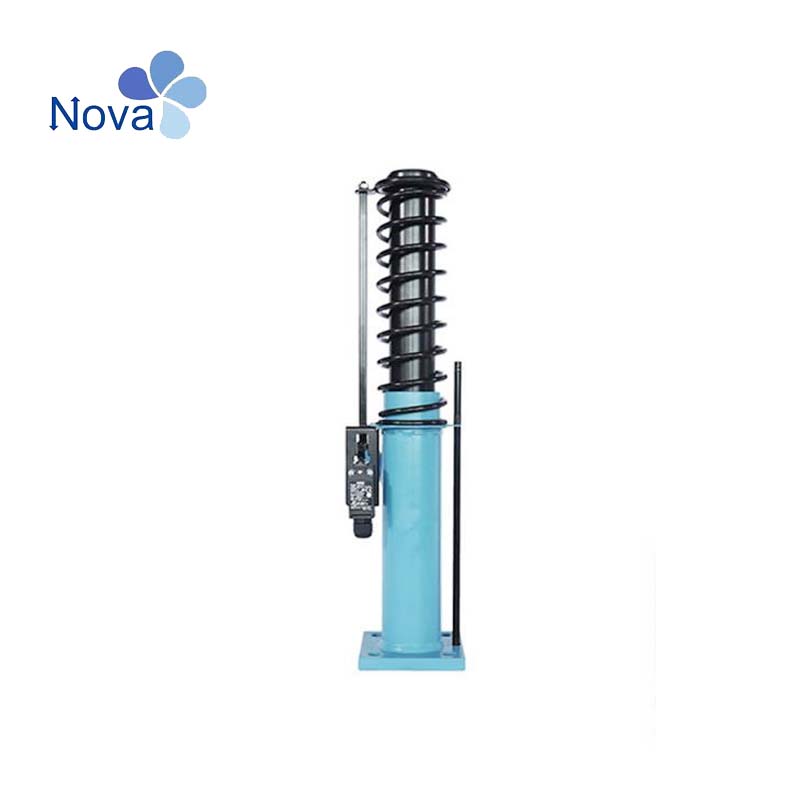

Safety Parts Spring Inside and outside Oil Buffer for Lift Use
Email: sales@novaelevator.com
Tel: 008613601565806
description1
Zipper closure
1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying
fabric for superior performance.
REGULAR FIT - US standard sizes. An athletic fit that sits close to the
body
for a wide range of motion, designed for optimal performance and all day
comfort.
FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them
in
place during workout
Overview
Essential details
| Warranty: | 1 Year | After-sale Service: | Online technical support |
| Project Solution Capability: | graphic design, Cross Categories Consolidation | Application: | Office Building |
| Design Style: | Modern | Place of Origin: | Jiangsu, China |
| Brand Name: | Nova | Model Number: | NONE |
| Type: | Oil Buffer | Product name: | Elevator Buffer |
Supply Ability
| Supply Ability | 100000 Piece/Pieces per Year |
Packaging & delivery
| Packaging Details | Standard Sea Packing | Port | FOB SHANGHAI |
| Picture Example: |
Product Detail
Product Description

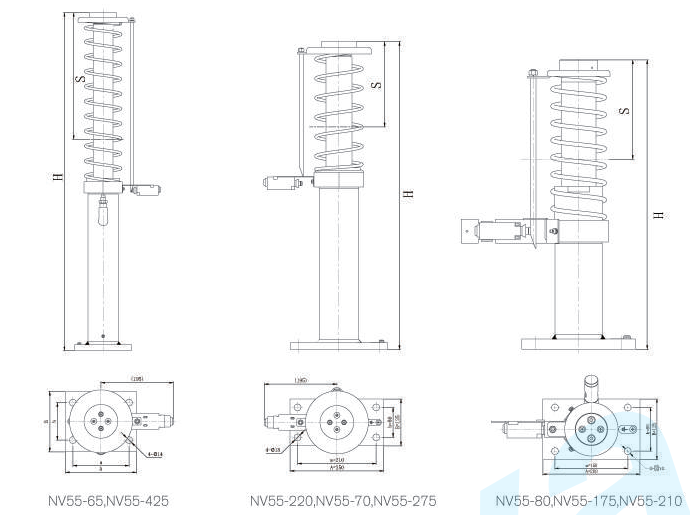

Nova Code | Rated Speed (m/s) | P+Q (Kg) | Plunger Stroke (mm) | Free Height (mm) | a*b (mm) | A*B (mm) | Oil Mass (L) |
NV55-10 | ≤1.0 | 300-2500 | 100 | 390 | 150*90 | 180*125 | 0.5 |
NV55-16 | ≤1.6 | 700-5300 | 175 | 625 | 210*100 | 270*150 | 1.7 |
NV55-20 | ≤2.0 | 1000-5300 | 290 | 915 | 210*100 | 270*150 | 2.6 |
NV55-65 | ≤0.63 | 500-4600 | 65 | 350 | 150*100 | 190*160 | 0.45 |
NV55-70 | ≤1.0 | 300-2500 | 70 | 305 | 210*80 | 250*125 | 0.5 |
NV55-80 | ≤1.0 | 600-3000 | 80 | 315 | 150*90 | 200*125 | 0.4 |
NV55-175 | ≤1.6 | 600-3000 | 175 | 510 | 150*90 | 200*125 | 0.6 |
NV55-210 | ≤1.75 | 700-3600 | 210 | 600 | 150*90 | 200*125 | 0.8 |
NV55-220 | ≤1.75 | 600-2500 | 220 | 780 | 210*80 | 250*125 | 1.3 |
NV55-275 | ≤2.0 | 800-3800 | 275 | 790 | 210*80 | 250*125 | 1.5 |
NV55-425 | ≤2.5 | 820-3600 | 425 | 1130 | 150*100 | 190*160 | 2.5 |

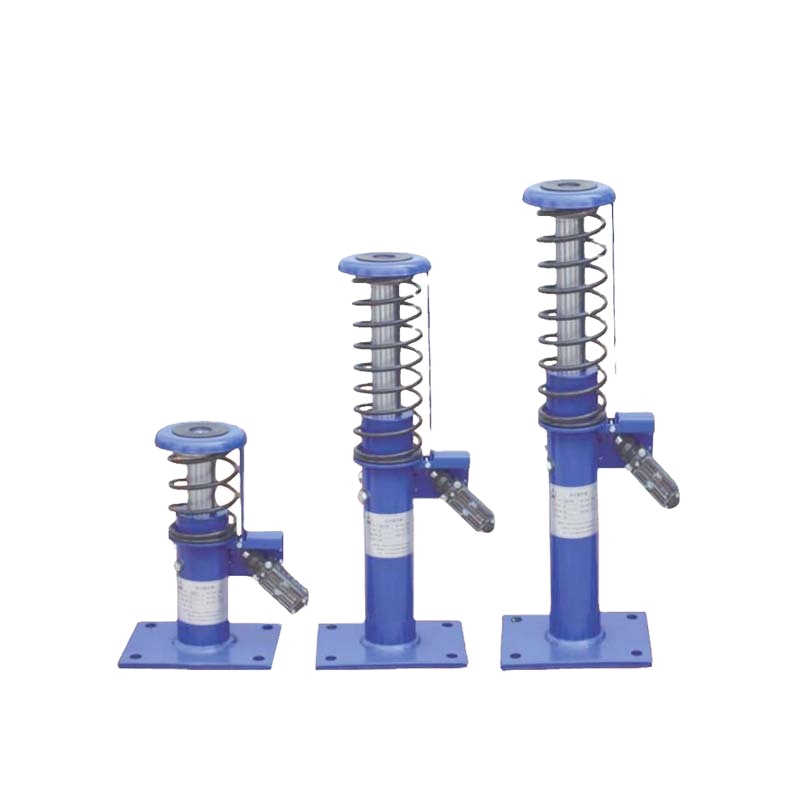

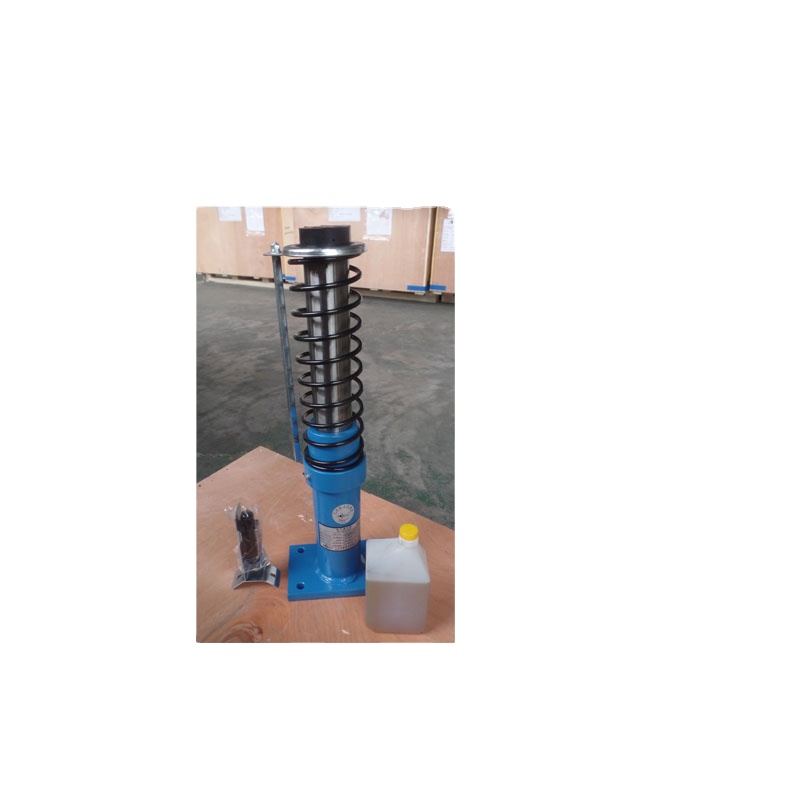

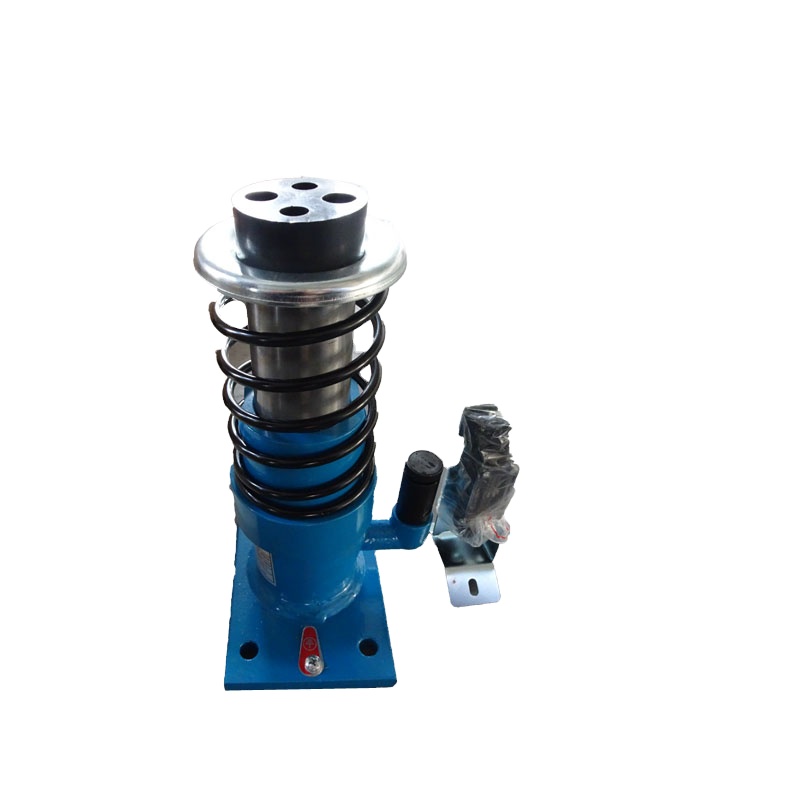

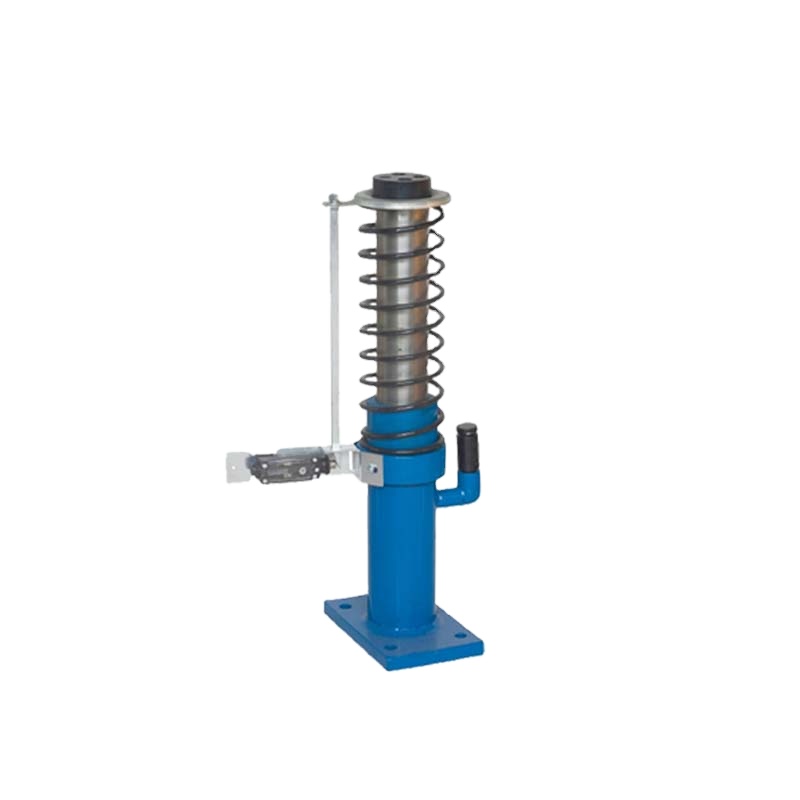

Details Images

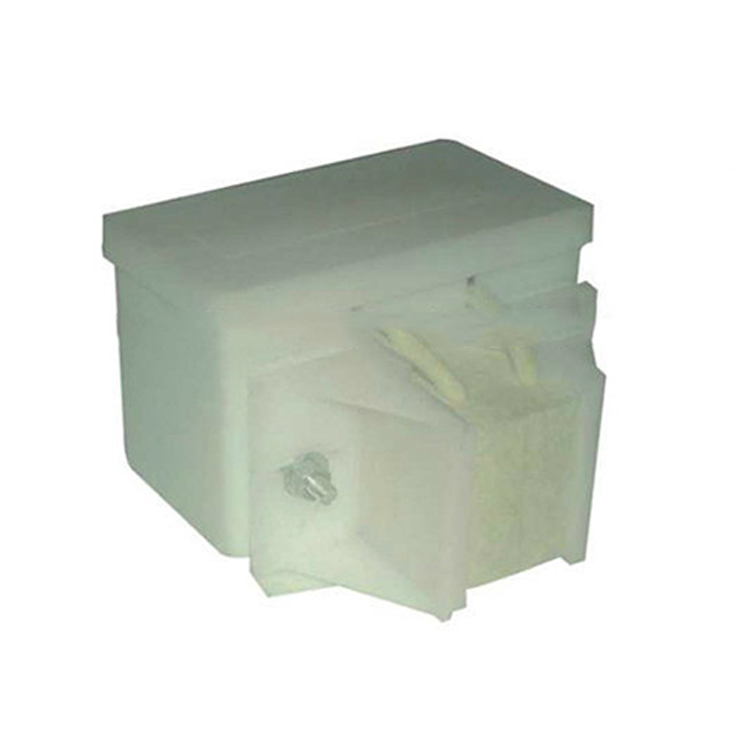

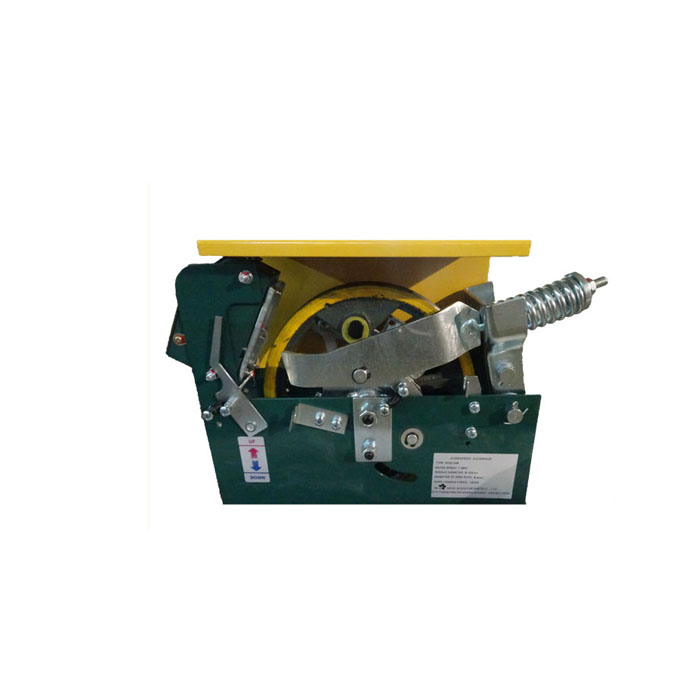

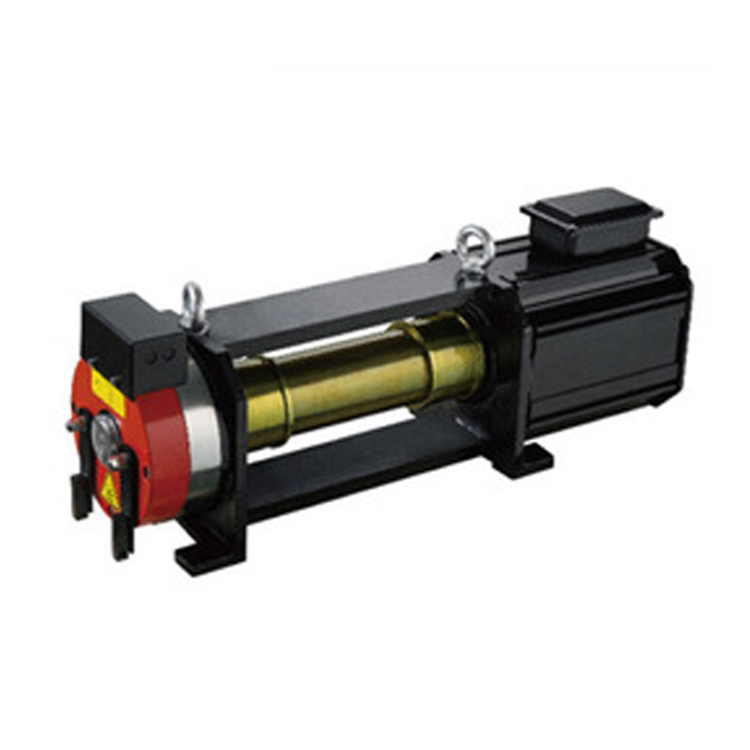

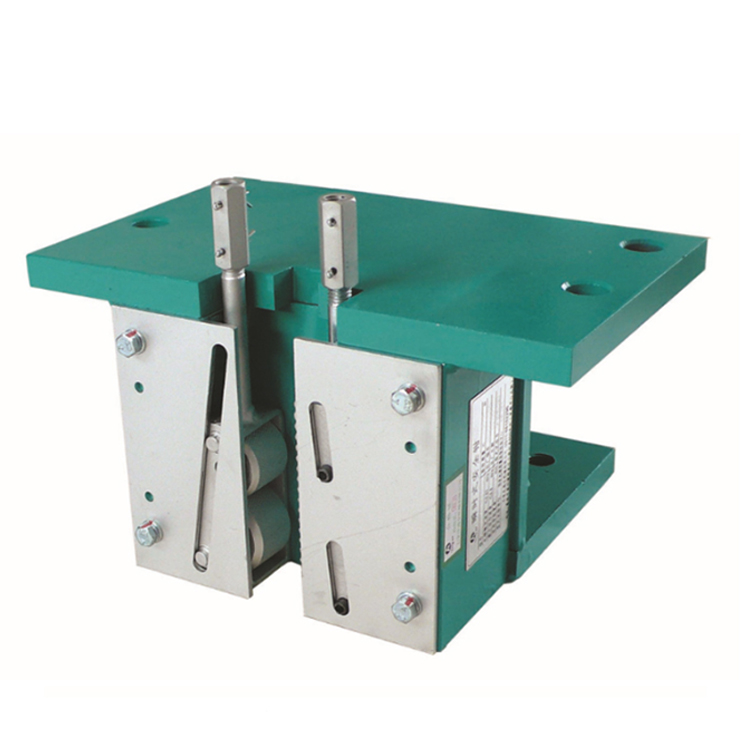

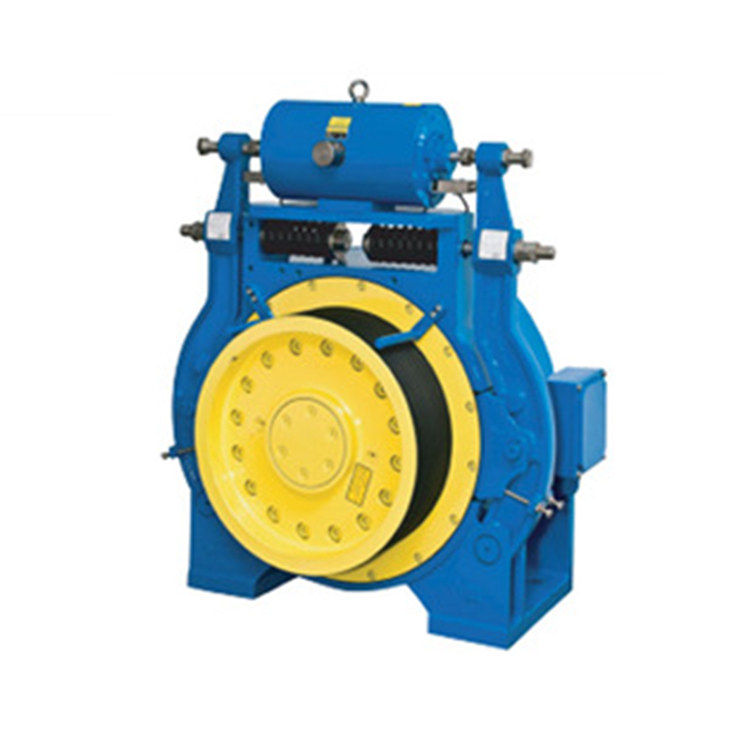

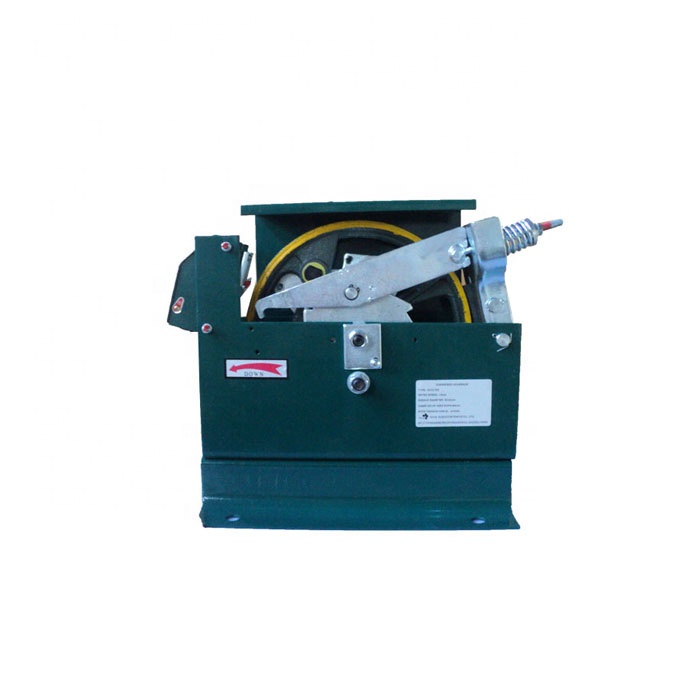

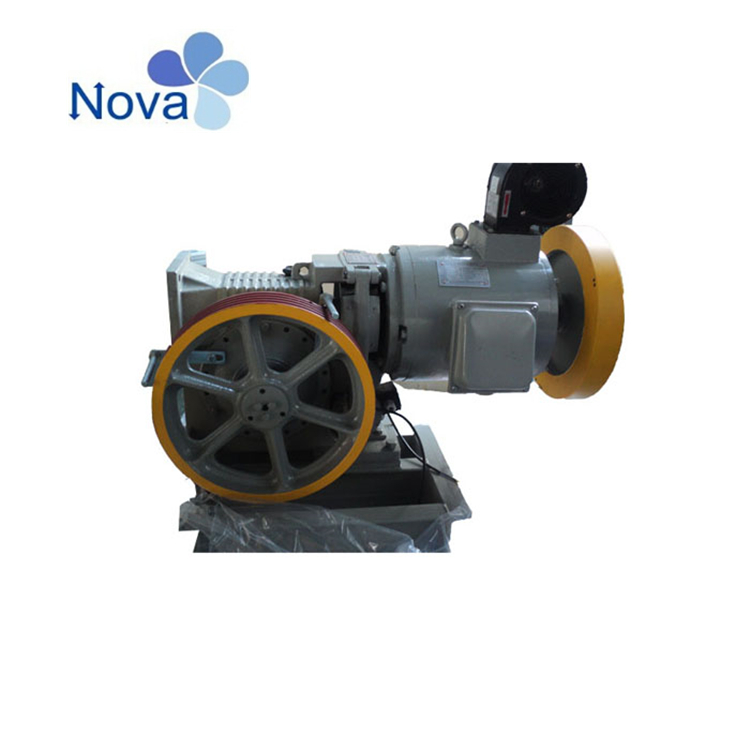

Elevator Accessories
Company Profile
Exhibition

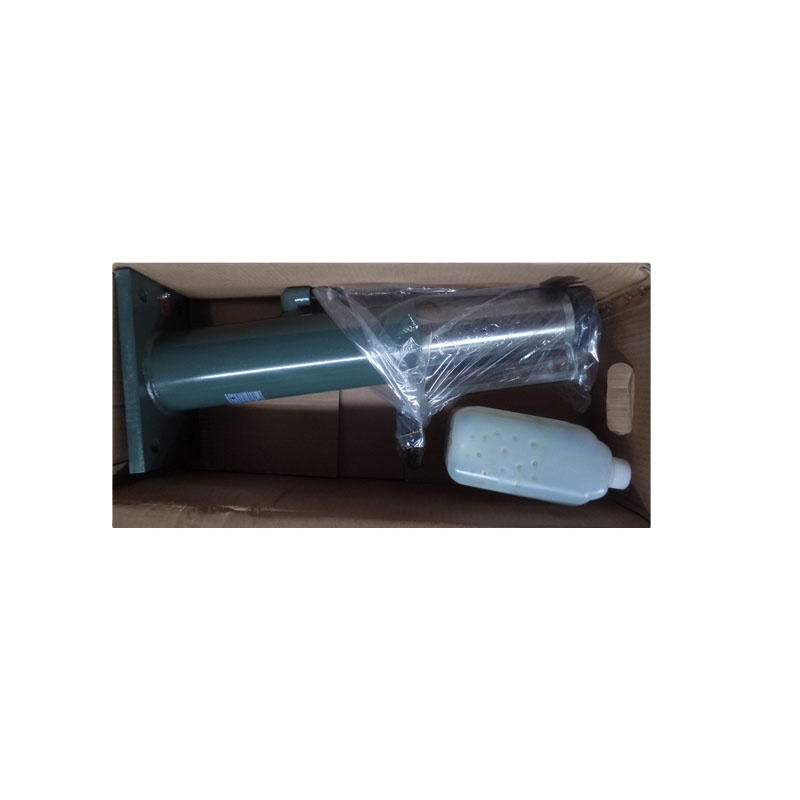

Product Packaging
FAQ
1. Price
Re: please send us inquiry from Alibaba, we will qutoe to you within 24 hours. It’s more convenient and appreciated for us if you provide your company details and your detail inquiry for elevators.
2. Payment term
Re: T/T or L/C at sight.
3. Installation&Maintaining
Re: We will send installation&maintaining manual along with the elevator.
Our sugguestion is to hire a professional local company for installation and future maintaining,
once you need any technical assistant from us, just don't hesitate to contact us by mail or phone.
Technician will be sent to the job site if necessary.
4. Shipping&price term
Re: Both FOB/CIF/CFR price term are ok, we have reliable forwarder helping arrange the shipment for you.
