Overview
Essential details
| Warranty: | 1 Year | After-sale Service: | Online technical support, Onsite Installation, Onsite Training, Onsite Inspection |
| Project Solution Capability: | graphic design, total solution for projects | Application: | Hotel, Villa, Apartment, Office Building, Hospital, Mall, Supermarket, Warehouse |
| Place of Origin: | China | Brand Name: | NOVA |
| Model Number: | NV | Type: | None |
| Keywords: | Elevator Rail Clips | Brand: | NOVA |
| Certificate: | ISO9001:2008,DSA,IAF,UKAS | Color Standard Series: | Black, Gray |
| T1(M10): | T75-3/B,T89/B,T90/B | Warranty Period: | One year |
| Dimension: | M10,M12,M14,M16,M18 | Technology1: | Forged Cilp |
| Technology2: | Cast Iron Cilp | Usage: | For Elevator Cabin Or Counterweight |
Supply Ability
| Supply Ability | 10000 Piece/Pieces per Month |
Packaging & delivery
| Packaging Details | Standard export package | Port | SHANGHAI |
| Picture Example: |
Product Detail
Product Description

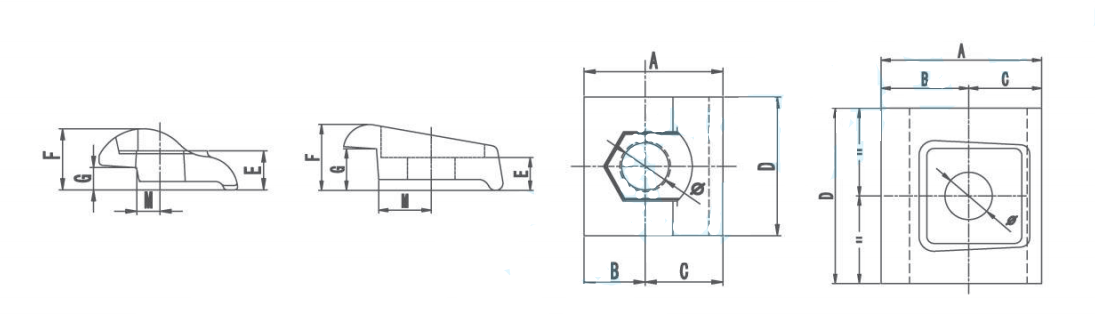

Product Paramenters
Type | Designation | Dimensions(mm) | ||||
A | B | C | D | E | ||
NV75 | T75-3/B | 30 | 15 | 15 | 30 | 10.5 |
NV89 | T89/B | 32 | 16 | 16 | 38 | 11 |
NV90 | T90/B | 32 | 16 | 16 | 38 | 11 |
NV114 | T114/B | 50 | 22 | 28 | 50 | 14 |
NV1271 | T127-1/B | 50 | 22 | 28 | 50 | 14 |
NV1272 | T127-2/B | 50 | 22 | 28 | 50 | 17 |
NV1401 | T140-1/B | 50 | 22 | 28 | 50 | 17 |
NV1402 | T140-2/B | 70 | 38 | 32 | 65 | 16 |
NV1403 | T140-3/B | 70 | 38 | 32 | 76 | 19 |
Type | Designation | Dimensions(mm) | ||||
F | G | M | φ | Bolt | ||
NV75 | T75-3/B | 15 | 4.5 | 3 | 9 | M8 |
NV89 | T89/B | 16 | 5 | 6 | 13 | M12 |
NV90 | T90/B | 16 | 5 | 6 | 13 | M12 |
NV114 | T114/B | 22 | 5 | 7.5 | 17 | M16 |
NV1271 | T127-1/B | 22 | 5 | 7.5 | 17 | M16 |
NV1272 | T127-2/B | 25 | 8 | 8 | 17 | M16 |
NV1401 | T140-1/B | 25 | 8 | 8 | 17 | M16 |
NV1402 | T140-2/B | 25.5 | 12.5 | 24 | 20.5 | M18 |
NV1403 | T140-3/B | 28.5 | 19 | 24 | 20.5 | M18 |
Type | Designation | Dimensions(mm) | ||||
A | B | C | D | E | ||
NV-SL1 | T89/B | 76 | 70 | 31 | 5 | 9 |
T90/B | 76 | 70 | 31 | 5 | 9 | |
NV-SL2 | T114/B | 76 | 70 | 31 | 5 | 9 |
T127-1/B | 76 | 70 | 31 | 5 | 9 | |
NV-SL3 | T127-2/B | 76 | 70 | 33 | 5 | 14.5 |
T140-1/B | 76 | 70 | 33 | 5 | 14.5 | |
T140-2/B | 76 | 70 | 33 | 5 | 14.5 | |
Type | Designation | Dimensions(mm) | ||||
F | G | - | φ | Bolt | ||
NV-SL1 | T89/B | 14.5 | 18.5 | - | 13 | M12 |
T90/B | 14.5 | 18.5 | - | 13 | M12 | |
NV-SL2 | T114/B | 14.5 | 18.5 | - | 17.5 | M16 |
T127-1/B | 14.5 | 18.5 | - | 17.5 | M16 | |
NV-SL3 | T127-2/B | 20.5 | 19 | - | 17.5 | M16 |
T140-1/B | 20.5 | 19 | - | 17.5 | M16 | |
T140-2/B | 20.5 | 19 | - | 17.5 | M16 | |
