Using the permanent magnet synchronous gearless traction machine as the power source, it is small in size and compact in
structure, which can meet the design requirements of small machine room and provide more free design space for architectural
design.
Clearance T50/A low price linear guide rail lift escalator spare parts
Email: sales@novaelevator.com
Tel: 008613601565806
description1
Zipper closure
1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying
fabric for superior performance.
REGULAR FIT - US standard sizes. An athletic fit that sits close to the
body
for a wide range of motion, designed for optimal performance and all day
comfort.
FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them
in
place during workout
Overview
Essential details
| Warranty: | 1 Year | After-sale Service: | Online technical support, Onsite Installation, Onsite Training, Onsite Inspection |
| Project Solution Capability: | graphic design, total solution for projects | Application: | Office Building |
| Design Style: | Contemporary | Place of Origin: | Jiangsu, China |
| Brand Name: | NOVA | Model Number: | Elevator Parts, T45/A,T50/A,T70-1/A |
| Type: | None | Keyword: | Nova guide rail |
| Certification: | ISO9001:2008,DAS,IAF,UKAS | Color standard series: | Black, Gray |
| Warranty period: | One year | Length: | 5m, 2.5m |
| size: | 9mm, 10mm, 16mm | Speed: | 0.4-4m/s |
| Usage: | For Elevator Cabin or Counterwight | OEM: | Marazzi,Monteferro,Savra |
Supply Ability
| Supply Ability | 10000 Set/Sets per Year |
Packaging & delivery
| Packaging Details | Standard export package | Port | FOB SHANGHAI |
| Picture Example: |
Video Description
Product Detail

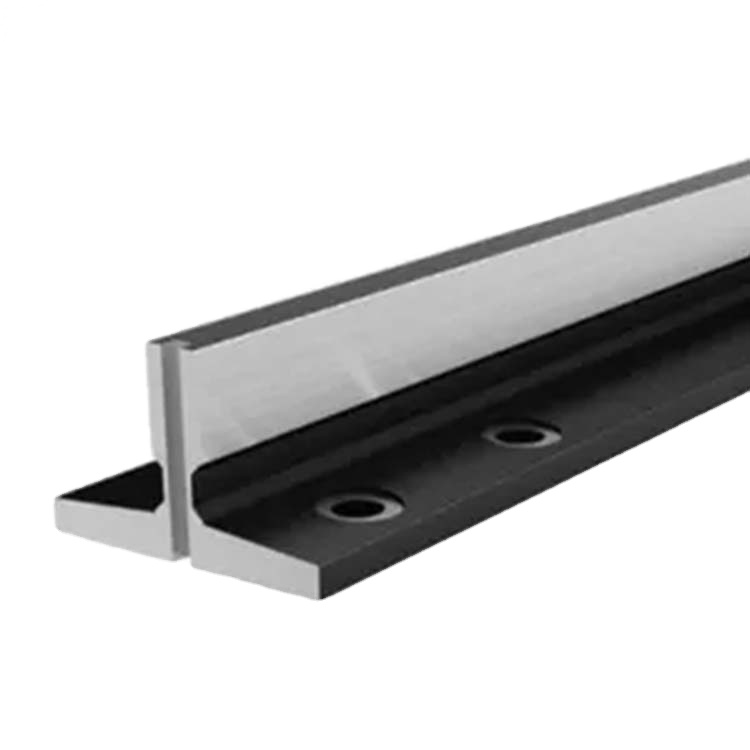

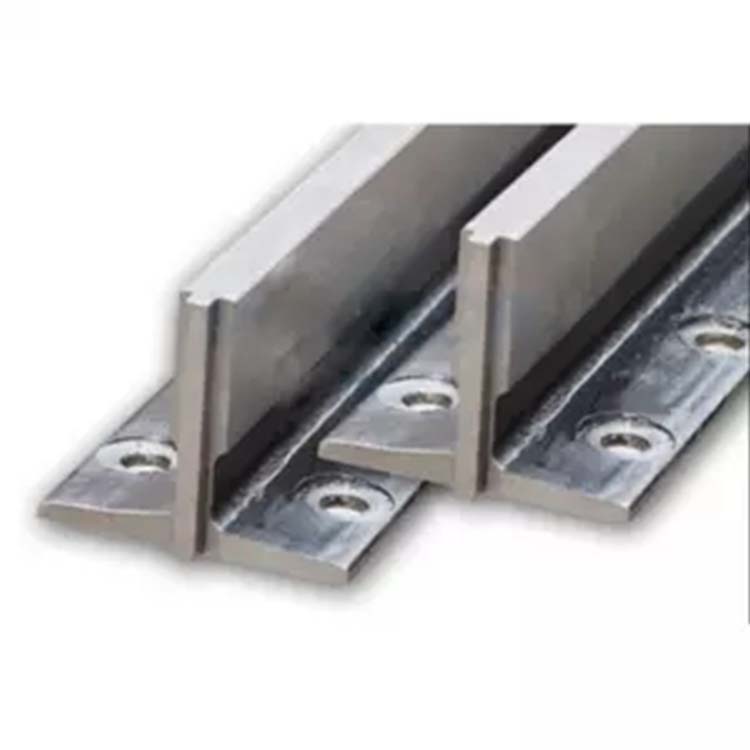

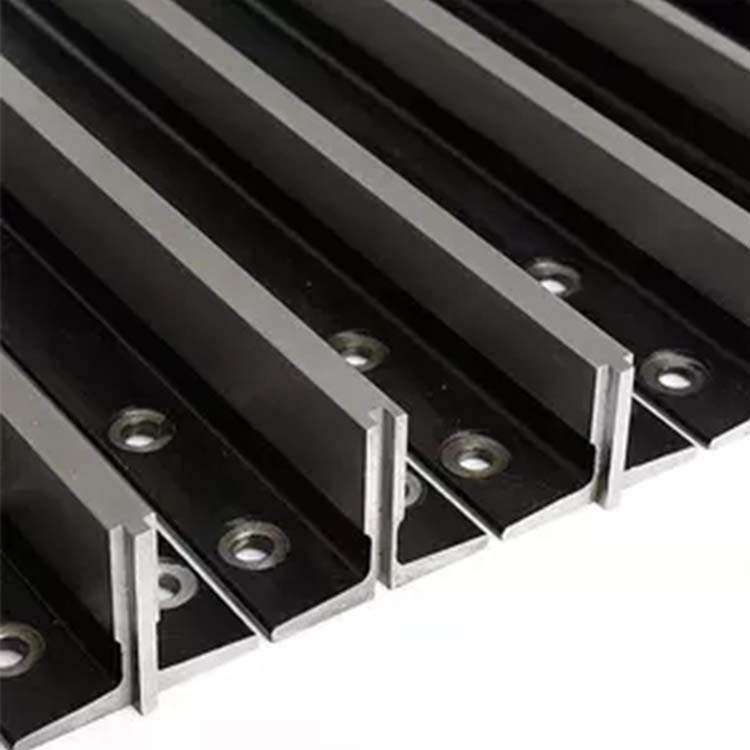

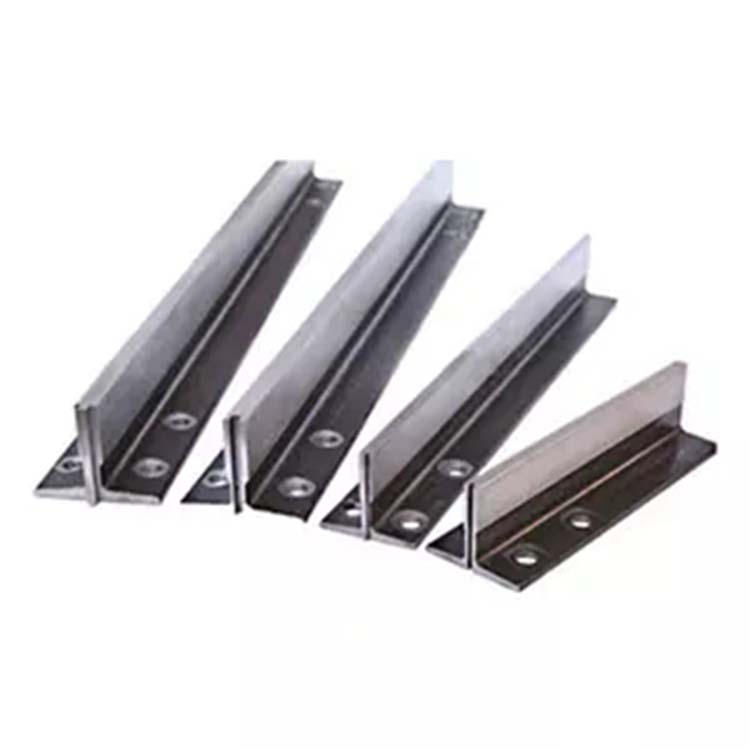

Product Description
Type:
1. Machined Elevator Guide Rail
2. Cold Drawn Elevator Guide Rail

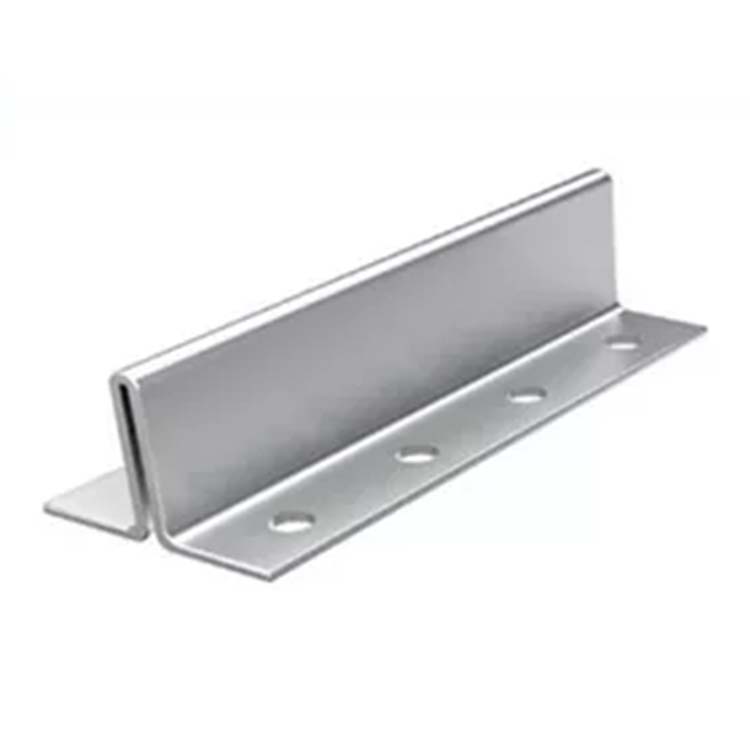

3. Hollow Elevator Guide Rail
4. Customized Elevator Guide Rail
5. Cold drawn elevator guide rail fishplates, machined elevator guide rail fishplates, special thicness fishplates, T section fishplates, forged clips, sliding clamps, sliding clips, T-clips
Standard: ISO 7465.
Model: T45A, T50A, T70B, T75B, T78B, T82B, T89B, T90B, T114B, T127B, TK3, TK3A, TK5, TK5A.
Packing: Our guide rails are packed in bundles with protective sheathes protecting both ends, each bundle repacked in blue plastic sheeting. We can also pack as per your request.
Product Paramenters
Model | Guide Rail Size | Fishplate Size | Clip | Screw |
T45/A | 45mm*45mm*5mm | 160*50*8mm | 8K | M8*25 |
T50/A | 50mm*50mm*5mm | 200*50*8mm | 8K | M8*25 |
T70-1/B | 70mm*65mm*9mm | 250*70*10mm | 8K | M12*35 |
T75-3/B | 75mm*62mm*10mm | 240*75*10mm | 8K | M12*35 |
T78/B | 78mm*56mm*10mm | 240*75*10mm | 8K | M12*35 |
T82/B | 82.5mm*68.25mm*9mm | 216*80*10mm | 13K | M12*35 |
T89/B | 89mm*62mm*16mm | 280*90*13mm | 13K | M12*40 |
T90/B | 90mm*75mm*16mm | 280*90*13mm | 13K | M12*40 |
T114/B | 114mm*89mm*16mm | 300*115*18mm | 18K | M16*50 |
T127-2/B | 127mm*89mm*16mm | 300*130*18mm | 24K | M16*55 |
TK3 | 75mm*55mm*10mm | 220*72*2.5mm | 3K | M8*25 |
TK3A | 78mm*60mm*16.4mm | 200*78*4mm | 3K | M8*25 |
TK5 | 87mm*60mm*16.4mm | 350*87*4mm | 5K | M10*25 |
TK5A | 78mm*60mm*16.4mm | 200*78*4mm | 5K | M10*25 |
Permanent magnet synchronous toothless traction machine
The new generation control system is combined with the elevator control with drive.
It brings compact structure,smaller
volume,more convenient operation and more favorable cost performance
Optional Accessories
Company Profile
Hot Products
Elevator Guide Rail
Elevator Door Operator
Elevator Speed Governor
Elevator Cabin
Elevator Controller
Elevator Traction Machine
Cooperation Team/Participate in international exhibitions
The Packing:
The packing material will use PLY WOOD BOXES & BUNDLES as standard export packing
12-20 packages for each elevator, depends on different parameters.
1 set passenger elevator fit in 1*20FT container
2~3 sets passenger elevators fit in 1*40FT container/ 1*40HQ container
12-20 packages for each elevator, depends on different parameters.
1 set passenger elevator fit in 1*20FT container
2~3 sets passenger elevators fit in 1*40FT container/ 1*40HQ container
The Delivery Time:
20-28 working days upon signed documents and deposit received.
Port of loading: Shanghai Port, China.
Port of loading: Shanghai Port, China.
FAQ
Q1:Are you a trading company or a manufacturer?
1:We are manufacturer.We have our own factory and trading company.Q2:How can I order?
A2:Please send enquiry from Alibaba,Click "Contact Now".Please let me know the specification of elevator.
Q3:Can you cheaper?Another company lower than you.
A4:The quality of the product determines the price. Just like the BMW and other cars, We use high quality materials and advanced
technology.We provide you with quality products and best services. Please know that the value for money is good.
Q4:Can I customize the elevator?
A4:Of course, please tell me your requirements and parameters or drawings, we can also design drawings for you to confirm.
Q5:How about warranty?
A5:Every unit we can follow by our GPS system,if any problem we can tell you how to fix it
Q6:Payment and Price terms?
A6:Mainly according to your requirements, but we recommend using L/C at sight or 30% T/T In Advance,balance before shipping.
Q7:What is your delivery time?
A7:Our delivery time is based on the quantity of your order.
